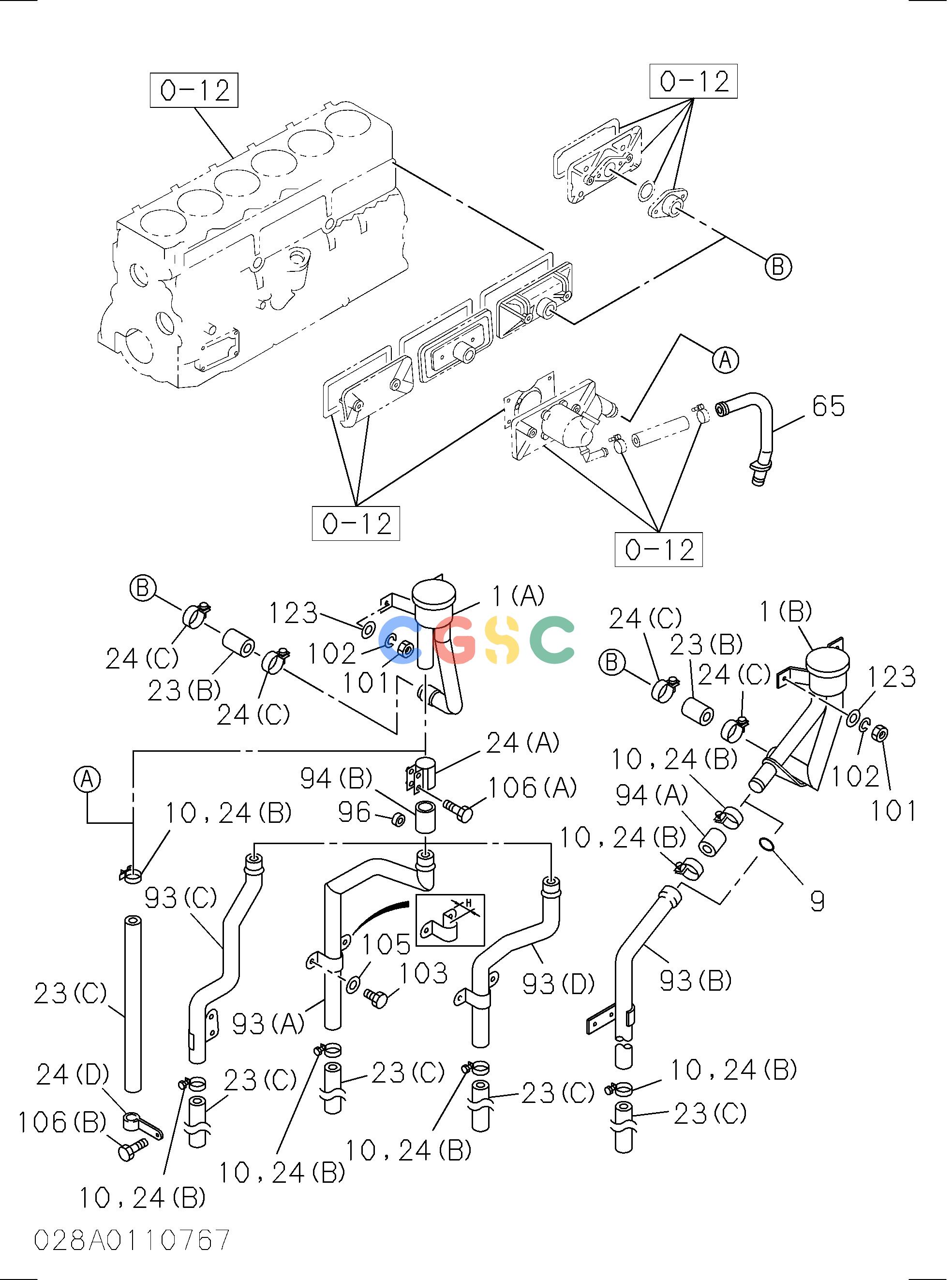

日立零件查询（CG45）VENTILATION SYSTEM Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
443 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(A). | 5117401220 | [1] | BREATHER; AIR | |
| 1(A). | 1117401710 | [1] | BREATHER; AIR | C |
| 1(A). | 1117402520 | [1] | BREATHER; AIR | |
| 23(B). | 1093604391 | [1] | HOSE; RUBBER,VENTILATOR PIPE | |
| 23(C). | 5093609870 | [1] | HOSE; RUBBER,VENTILATOR PIPE | L=600 S.B.L=3000 |
| 24(C). | 8941625680 | [2] | CLIP; RUBBER HOSE,VENTILATOR | |
| 24(B). | 9099156661 | [1] | CLIP; RUBBER HOSE,VENTILATOR | |
| 24(C). | 1097040570 | [2] | CLIP; RUBBER HOSE,VENTILATOR | |
| 24(D). | 1097006082 | [1] | CLIP; RUBBER HOSE,VENTILATOR | |
| 101. | 9091105080 | [2] | NUT; BRKT,AIR BREATHER | |
| 101. | 0911502080 | [2] | NUT; BRKT,AIR BREATHER | |
| 102. | 9091505080 | [2] | WASHER; LK,BRKT | |
| 103. | 0208008140 | [2] | BOLT; BRKT TO AIR BREATHER | A |
| 103. | 0286808200 | [2] | BOLT; BRKT TO AIR BREATHER | |
| 105. | 9091505080 | [2] | WASHER; LK,BRKT | |
| 106(B). | 0501410200 | [1] | BOLT; DRAIN PIPE | |
