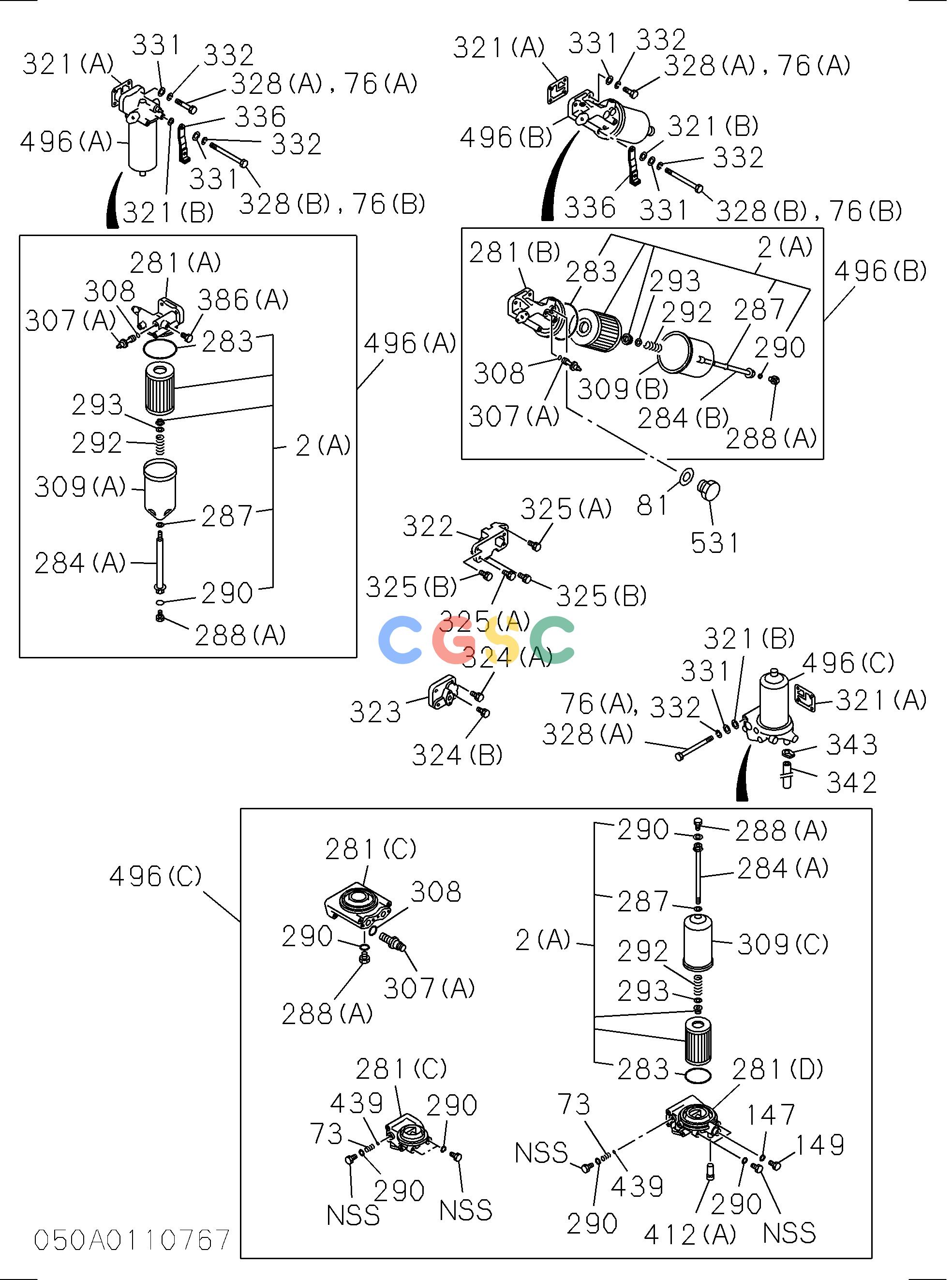

日立零件查询（CG45）OIL COOLER AND OIL FILTER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
662 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2(A). | 1878100752 | [1] | ELEMENT; OIL FILTER | |
| 76(A). | 0501410350 | [2] | BOLT; OIL FILTER | A |
| 76(A). | 0286810350 | [2] | BOLT; OIL FILTER | |
| 76(B). | 9098009281 | [2] | BOLT; OIL FILTER | M10X145 |
| 102. | 1217002482 | [1] | COOLER ASM; OIL | |
| 103(A). | 8942059861 | [1] | BOLT; OIL COOLER | M8X65 |
| 103(B). | 0501408450 | [12] | BOLT; OIL COOLER | |
| 103(B). | 0501408280 | [15] | BOLT; OIL COOLER | |
| 103(B). | 1090300910 | [2] | BOLT; OIL COOLER | M8X20 W/PL WASHER |
| 107. | 9091605080 | [1] | WASHER; PL,OIL COOLER | |
| 110. | 1112810281 | [1] | BODY; CASE,OIL COOLER | |
| 111. | 1112820190 | [1] | CORE; OIL COOLER | |
| 115. | 9091114100 | [4] | NUT; ELEMENT | |
| 116. | 9091645100 | [4] | WASHER; PL,ELEMENT | |
| 189. | 9132630100 | [1] | PLUG; BYPASS VLV | |
| 190. | 9095622150 | [1] | GASKET; PLUG,BYPASS VLV | |
| 191. | 5095800920 | [1] | SPRING; BYPASS VLV | |
| 192. | 5112880010 | [1] | VALVE; BYPASS | |
| 193. | 5096050170 | [2] | PLUG; TAPER | |
| 281(A). | 5132120212 | [1] | COVER; OIL FILTER | |
| 283. | 9099203110 | [1] | GASKET; BODY TO COVER | |
| 284(A). | 1132310420 | [1] | BOLT; CENTER,OIL FILTER | |
| 287. | 9099206940 | [1] | GASKET; CENTER BOLT | |
| 288(A). | 1090001050 | [1] | PLUG; OIL DRAIN | |
| 288(A). | 9098621610 | [1] | PLUG; OIL DRAIN | |
| 290. | 1096230550 | [1] | GASKET; PLUG,OIL DRAIN | |
| 292. | 9099412830 | [1] | SPRING; ELEMENT | |
| 293. | 9132390250 | [1] | SEAT; SPR | |
| 307(A). | 5132600061 | [1] | VALVE; OVERFLOW | |
| 308. | 1096231630 | [1] | GASKET; VLV,OVERFLOW | |
| 309(A). | 5132110100 | [1] | BODY; OIL FILTER,CENTRIFUGAL | |
| 309(B). | 5132110160 | [1] | BODY; OIL FILTER,CENTRIFUGAL | |
| 321(A). | 1132191940 | [1] | GASKET; OIL FILTER TO C/BL | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 321(A). | 8943706700 | [1] | GASKET; OIL FILTER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 321(B). | 9095720100 | [2] | GASKET; OIL FILTER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 386(A). | 9098621610 | [1] | PLUG; OIL FILTER | |
| 444. | 1112820140 | [2] | GASKET; ELEMENT TO BODY | |
| 444. | 1112821290 | [2] | GASKET; ELEMENT TO BODY | |
| 469. | 1112820120 | [1] | GASKET; OIL COOLER TO C/BL | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 469. | 1112820200 | [1] | GASKET; OIL COOLER TO C/BL | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 469. | 1112820281 | [1] | GASKET; OIL COOLER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 496(A). | 5132000726 | [1] | FILTER ASM; OIL | |
