日立零件查询（CG45）OIL PUMP AND OIL STRAINER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
670 次

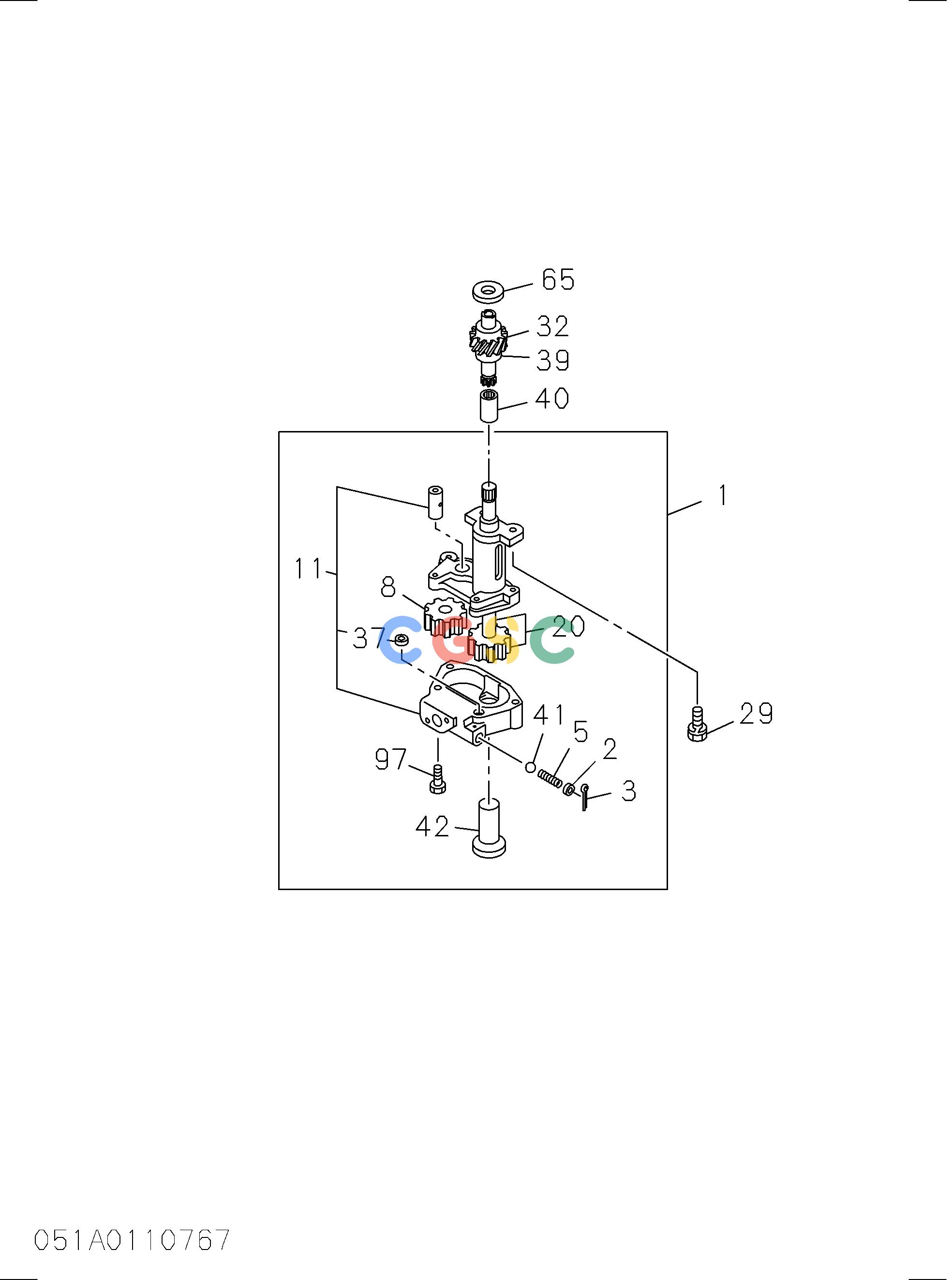

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1131100300 | [1] | PUMP ASM; OIL | |
| 2. | 5131650040 | [1] | SEAT; SPR | |
| 3. | 9081040300 | [1] | PIN; SPLIT | |
| 5. | 5095800980 | [1] | SPRING; COIL | |
| 8. | 5131250010 | [1] | GEAR; DRIVEN,OIL PUMP | |
| 11. | 1131130470 | [1] | COVER ASM; OIL PUMP | |
| 20. | 5131210050 | [1] | GEAR; DRIVE,OIL PUMP | |
| 29. | 0500410250 | [2] | BOLT; OIL PUMP | A |
| 29. | 0286810250 | [2] | BOLT; OIL PUMP | |
| 32. | 1131280180 | [1] | PINION; OIL PUMP DRIVING | |
| 37. | 1131190030 | [1] | DOWEL; COVER | |
| 39. | 9131190100 | [1] | COLLAR; OIL PUMP PINION | |
| 40. | 1131230160 | [1] | COUPLING; PINION TO SHAFT | |
| 41. | 5098430030 | [1] | BALL; OIL RELIEF VLV | |
| 42. | 1131400860 | [1] | STRAINER; OIL,OIL PUMP | |
| 65. | 9131190100 | [1] | COLLAR; PINION,OIL PUMP | |
| 97. | 1090440470 | [4] | BOLT; CASE | M8X60 |
