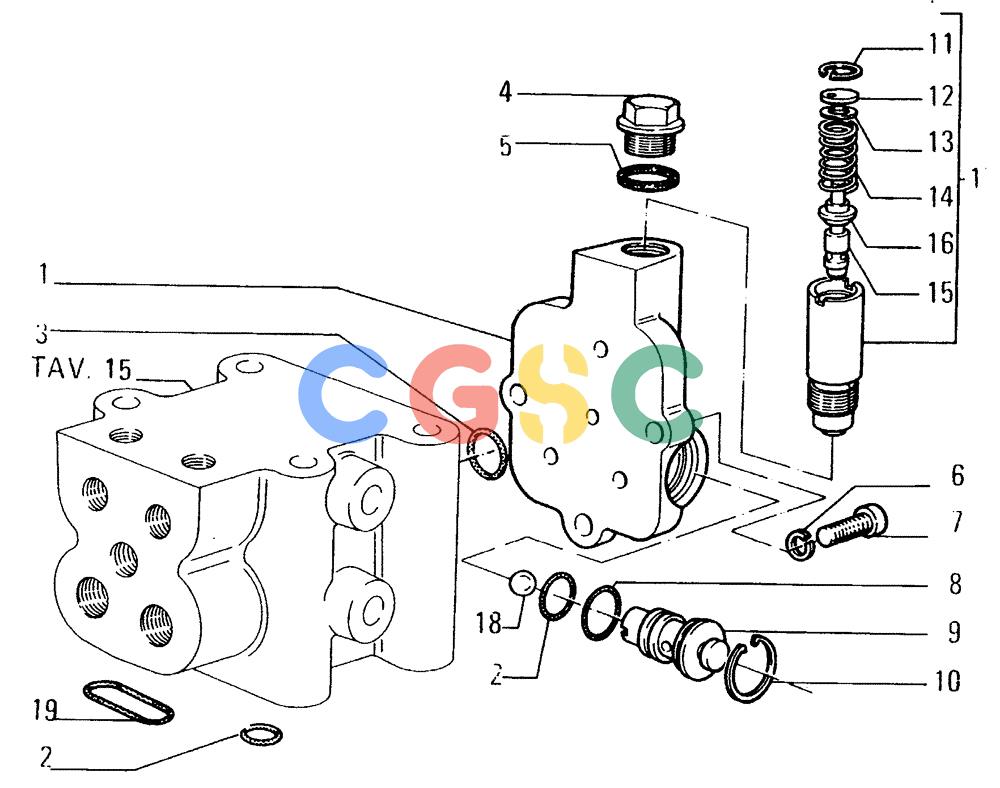

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2770[016]) - REAR TRANSMISSION-CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
901 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79096075 | [1] | BODY | LEC- REAR |
| 3. | 14453781 | [1] | O-RING,21.95mm ID x 1.78" Width | MKT-020, Cl 7, .864" ID x .070" Thk (M21.95 ID x 1.78 Thk) Superseded by part number: 5135737 |
| 4. | 10305171 | [1] | PLUG,M22 x 1.5 x 21 | TTF22x1,5x10 Superseded by part number: 16992611 |
| 5. | 79086322 | [1] | SEAL,22.7mm ID x 30mm OD x 2mm Thk | LECSEAL |
| 6. | 10569370 | [3] | LOCK WASHER | TTFLOCKWASHER 8,1x2 |
| 7. | 14306421 | [3] | HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8 | MKT Superseded by part number: 16690625 |
| 8. | 14453281 | [1] | O-RING,14mm ID x 1.78" Width | LEC0-RING 1,78x14 |
| 9. | 79010456 | [1] | HYDRAULIC VALVE | LECVALVE |
| 10. | 11057976 | [1] | SNAP RING,M21, Int | MKTRING, SNAP, M21, Int |
| 11. | 11057176 | [1] | SNAP RING,M13, Int | LEC14,1x1 |
| 12. | 4972293 | [1] | WASHER | LEC |
| 13. | 4972432 | [1] | WASHER,8mm ID x 12.5mm OD x 0.3mm Thk | LEC |
| 14. | 79060361 | [1] | SPRING | LEC |
| 15. | 4972430 | [1] | CARRIER | LECPLUNGER |
| 16. | 4972431 | [1] | CUP | LEC |
| 17. | 79060362 | [1] | HYDRAULIC VALVE | LECRELIEF VALVE - ASSEMBLY |
| 18. | 20063390 | [1] | BALL,8.73mm OD | TTF8,731 |
| 19. | 14454881 | [1] | O-RING,44.17mm ID x 1.78mm Width | LEC0-RING |
| 2. | 14453181 | [6] | O-RING,0.489" ID x 0.07" Width | TTF-014, Cl 7, .489" ID x .070" Thk (M12.42 ID x 1.78 Thk) |
