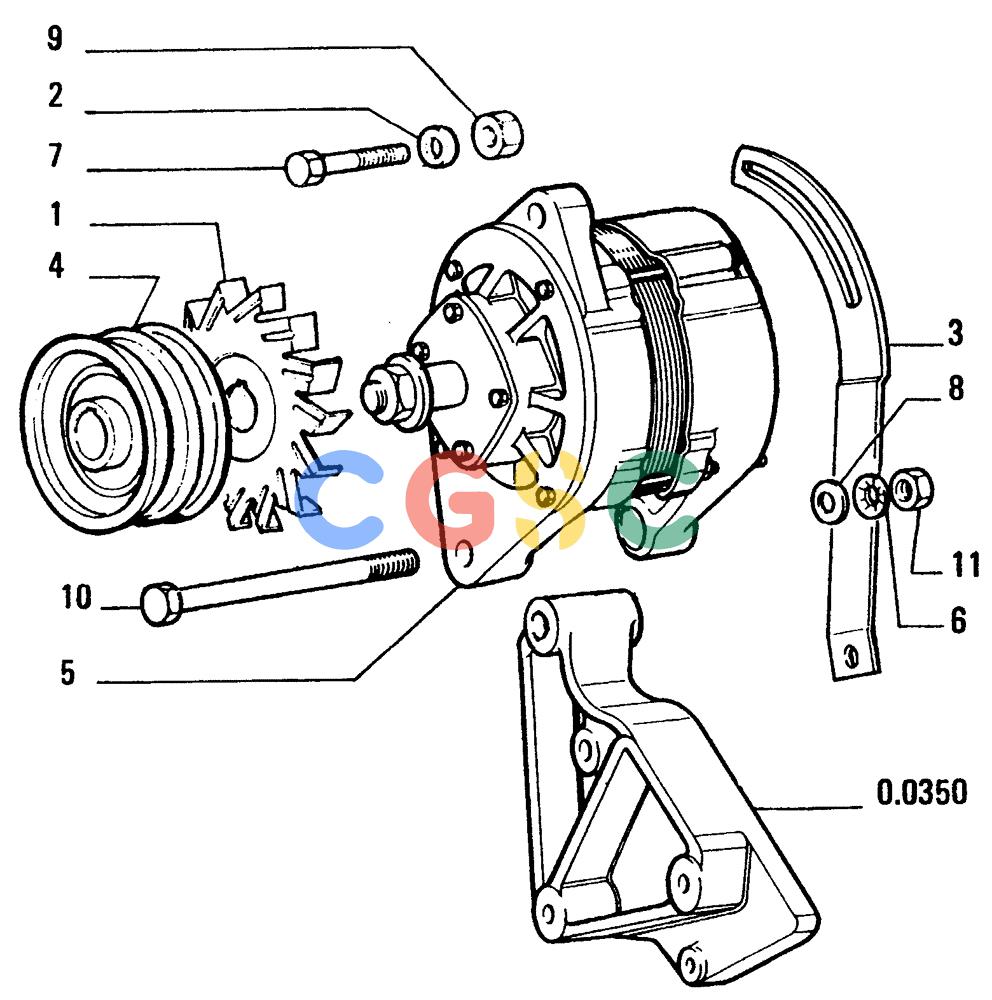

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0400[001]) - ALTERNATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
224 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4470778 | [1] | BLOWER | TORBLOWER C2723 |
| 1. | 79074703 | [1] | BLOWER | LECBLOWER D2723 Superseded by part number: 4757196 |
| 2. | 4513436 | [1] | WASHER | MODWASHER |
| 3. | 4735380 | [1] | BELT TENSIONER | LECBELT TENSIONER C2723 |
| 3. | 4855751 | [1] | BELT TENSIONER | LECBELT TENSIONER D2723 |
| 4. | 4802731 | [1] | PULLEY | COEPULLEY |
| 5. | 4757192 | [1] | ALTERNATOR | LECALTERNATOR - ASSEMBLY SEE Superseded by part number: 4757193 |
| 5. | 4808519 | [1] | ALTERNATOR | LECALTERNATOR - ASSEMBLY SEE |
| . . | 99461190 | [1] | ALTERNATOR | LECAlternator, 24V, 55 Amp Superseded by part number: 98419035 |
| . . | 99461190R | [1] | REMAN-ALTERNATOR | LECREMANUFACTURED 24 VOLT, 55 AMP ALTERNATOR - NA Only Superseded by part number: 87735076R |
| . . | 99461190C | [1] | CORE-ALTERNATOR | LECReturn Number, 24 VOLT, 55 AMP ALTERNATOR - NA Only |
| . . | 87735076R | [1] | REMAN-ALTERNATOR | LECFD14E, Reman for new PN 99461190 |
| . . | 87735076C | [1] | CORE-ALTERNATOR | LECReturn Number |
| 6. | 11198679 | [1] | BELLEVILLE WASHER,13mm ID x 24mm OD x 0.6mm Thk | TTFLOCKWASHER 13x24 Superseded by part number: 17091174 |
| 7. | 11307021 | [1] | BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd | TTFBOLT, Hex, M10 x 1.25 x 40, 10.9, Full Thd Superseded by part number: 11307024 |
| 8. | 12646901 | [1] | WASHER | MKTWASHER 12,2x28 Superseded by part number: 16887624 |
| 9. | 14048717 | [1] | LOCK NUT,M10 x 1.25, Cl 8 | LECNUT 10x1,25x11 |
| 10. | 15541921 | [1] | BOLT,Hex, M12 x 1.25 x 130mm, Cl 8.8 | TTFBOLT, Hex, M12 x 1.25 x 130, 8.8 |
| 11. | 16101511 | [1] | NUT,M12 x 1.25, Cl 8 | TTFNUT 12x1,25x10 Superseded by part number: |
