纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0400[002]) - ALTERNATOR-COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
918 次

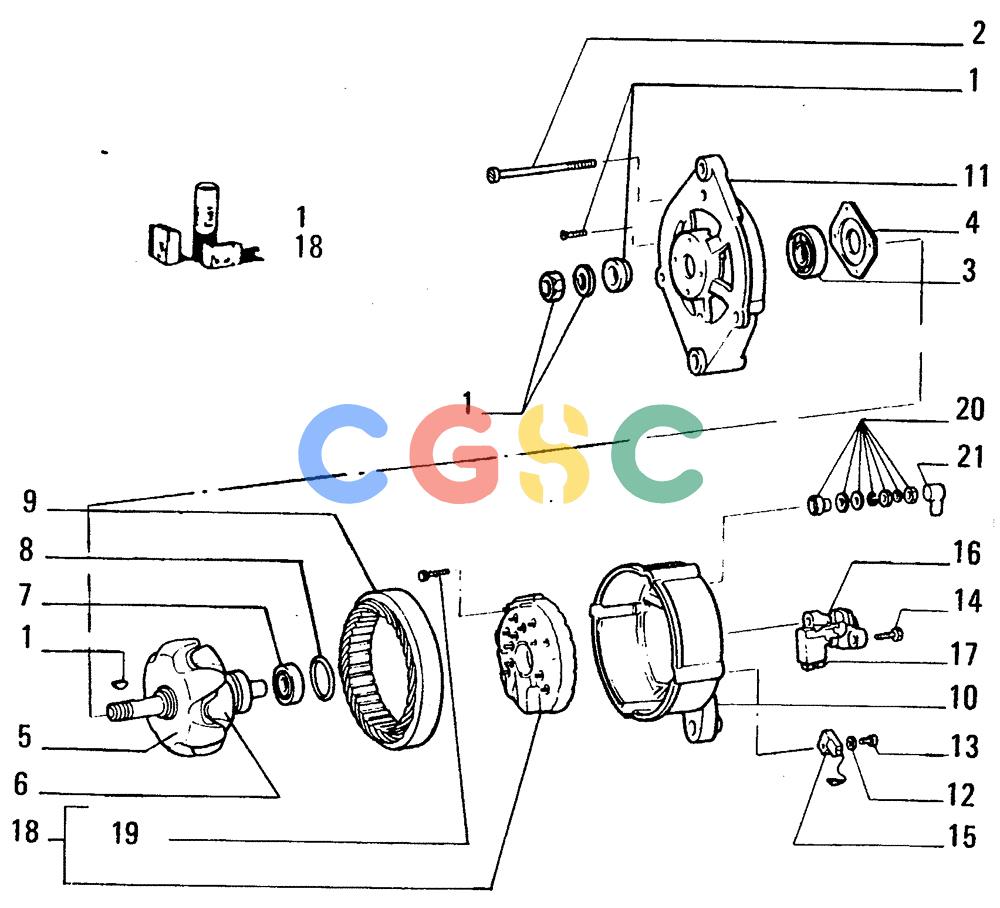

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1307188 | [1] | KIT | TOR |
| 2. | 79066515 | [4] | SCREW | LECC2723 Superseded by part number: 79106743 |
| 3. | 24941660 | [1] | BALL BEARING | LECBEARING 17x47 C2723 Superseded by part number: 87306803 |
| 4. | 79022468 | [1] | PLATE | MODC2723 Superseded by part number: 42531218 |
| 5. | 79078781 | [1] | ROTOR | LECC2723 Superseded by part number: |
| 6. | 79078921 | [1] | RING | LECCOIL C2723 |
| 7. | 24941650 | [1] | BALL BEARING,12mm ID x 32mm OD x 14mm W | TORBEARING 12x32 C2723 |
| 8. | 79025494 | [1] | RING | TOR0-RING C2723 |
| 9. | 51219422 | [1] | ALTERNATOR STATOR | NHSTATOR C2723 Superseded by part number: 3079387R91 |
| 10. | 79078922 | [1] | CASE | LECC2723 |
| 11. | 79022466 | [1] | SUPPORT | LECC2723 |
| 12. | 12604171 | [1] | LOCK WASHER | IMOWASHER 5,3x10 C2723 Superseded by part number: 12601171 |
| 13. | 79022481 | [1] | SCREW | MODC2723 Superseded by part number: 10389311 |
| 14. | 79075883 | [2] | SCREW | MOD Superseded by part number: 93160239 |
| 15. | 3079134R1 | [1] | CAPACITOR | IHC2723 |
| 16. | 79078923 | [1] | VOLTAGE REGULATOR | LECREGULATOR C2723 Superseded by part number: 93158421 |
| 17. | 79078924 | [1] | KIT | LECBRUSH C2723 |
| 18. | 79078926 | [1] | RECTIFIER | LECKIT C2723 |
| 19. | 79093985 | [3] | SCREW | LEC |
| 20. | 79022485 | [1] | CONNECTING BLOCK | LECTERMINAL CONNECTOR C2723 Superseded by part number: 9927837 |
| 21. | 79078925 | [1] | CAP | MODC2723 |
