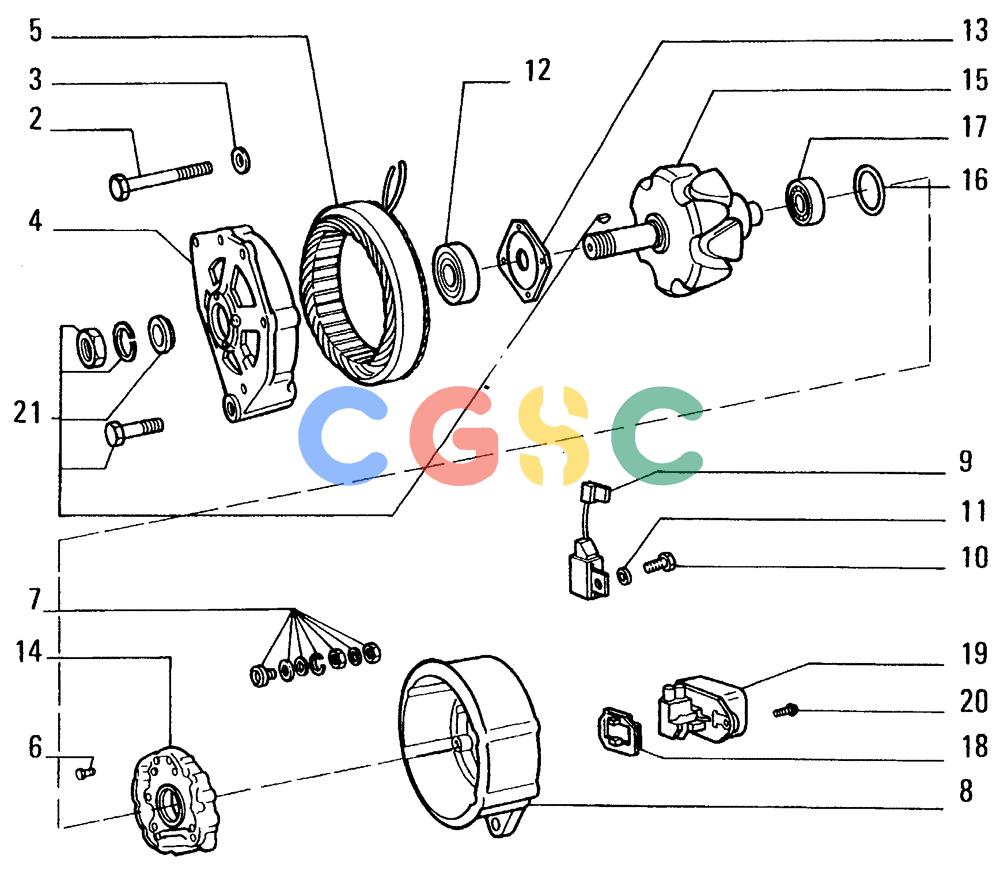

纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0400[002A]) - ALTERNATOR-COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
118 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 79106746 | [4] | SCREW | TORD2723 Superseded by part number: 9968592 |
| 3. | 14497821 | [4] | WASHER | LECD2723 |
| 4. | 79074704 | [1] | SUPPORT | LECD2723 |
| 5. | 79074705 | [1] | ALTERNATOR STATOR | LECSTATOR D2723 |
| 6. | 79093985 | [2] | SCREW | LEC |
| 7. | 79074707 | [1] | KIT | LECD2723 |
| 8. | 79074708 | [1] | SUPPORT | LECD2723 |
| 9. | 3079389R1 | [1] | CAPACITOR | IHD2723 |
| 10. | 79074710 | [3] | LOCK WASHER | LECLOCKWASHER D2723 |
| 11. | 79106749 | [1] | SCREW | LECD2723 |
| 12. | 79106745 | [1] | BEARING,17 mm ID x 47 mm OD x 14 mm | LECBEARING D2723 Superseded by part number: 24941660 |
| 13. | 79106739 | [1] | PLATE | TORD2723 Superseded by part number: 9969402 |
| 14. | 79074712 | [1] | RECTIFIER | LECD2723 Superseded by part number: |
| 15. | 79087247 | [1] | ROTOR | LECD2723 Superseded by part number: |
| 16. | 79106744 | [1] | BEARING | LECBEARING D2723 Superseded by part number: 24941650 |
| 17. | 79025494 | [1] | RING | TOR0-RING D2723 |
| 18. | 75207757 | [1] | GASKET | BHBSEAL D2723 |
| 19. | 79106750 | [1] | VOLTAGE REGULATOR | TORREGULATOR D2723 |
| 20. | 79075883 | [2] | SCREW | MOD Superseded by part number: 93160239 |
| 21. | 1307188 | [1] | KIT | TOR |
