纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0420[001]) - CONTROL-TACHOMETER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
998 次

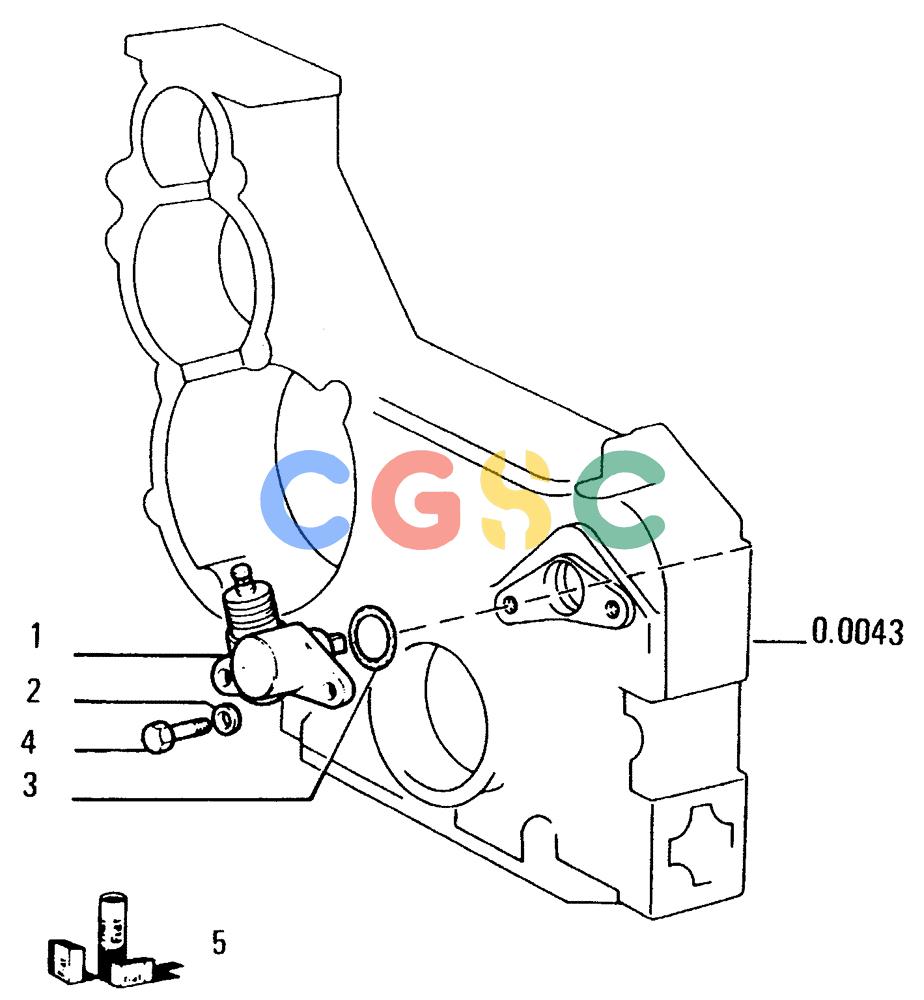

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4711596 | [1] | ANGLE DRIVE | MODMITER GEARING |
| 2. | 11198071 | [2] | BELLEVILLE WASHER,Belleville, M8.4 | TORWASHER, SPRING, Belleville, M8.4 Superseded by part number: |
| 3. | 14453581 | [1] | O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro | BAS18.77MM ID x 1.78 Thk Superseded by part number: 17278581 |
| 4. | 16043421 | [2] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd | TTFBOLT, Hex, M8 x 20, 8.8 Superseded by part number: 16043424 |
| 5. | 79037448 | [1] | ENGINE GASKET KIT | LECKIT SEE PAGE 32 Superseded by part number: 75127433 |
