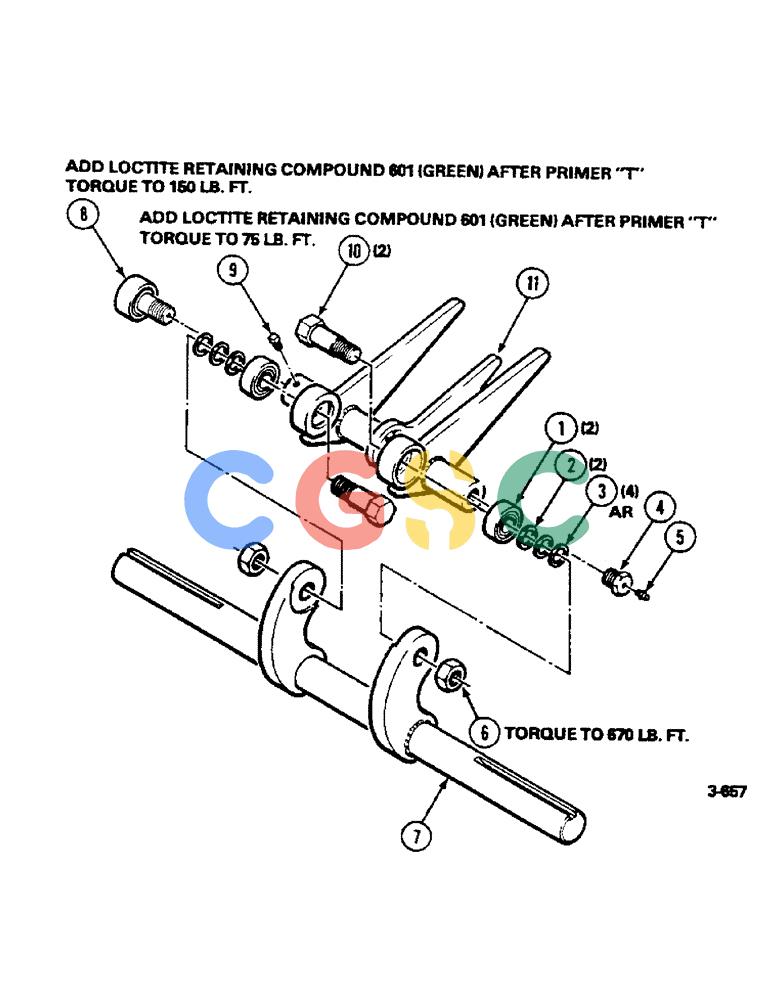

凯斯零件查询(8550) - CASE IH RECTANGULAR BALER (1/88-12/93) (36) - STUFFER ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
491 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700703739
|
[2] |
BALL BEARING,30mm ID x 62mm OD x 23.8mm W
|
CAS
BEARING
|
| 2. |
700108276
|
[2] |
SPACER
|
CAS
|
| 3. |
700108278
|
[4] |
WASHER
|
CAS
WASHER - special
|
| 4. |
8046187
|
[1] |
PIPE
|
HFI
BUSHING - reducer Superseded by part number: 24172R1
|
| 5. |
077065
|
[1] |
ZERK
|
|
| 6. |
700703734
|
[2] |
NUT
|
CAS
LIGHT HEX STOP NUT
|
| 7. |
700108267
|
[1] |
SHAFT
|
CAS
|
| 8. |
700703946
|
[1] |
CAM FOLLOWER
|
CAS
BEARING - cam
|
| 9. |
069252
|
[1] |
1/2-13 X 3/4 CPSQHSS
|
|
| 10. |
700108277
|
[2] |
BOLT,Spcl, 1 1/8"-12 x 3.543"
|
CAS
- special
|
| 11. |
700108270
|
[1] |
FORK
|
CAS
STUFFER
|
