纽荷兰零件查询(FD14E) - CRAWLER DOZER (0.0313[002]) - HEAT EXCHANGER-COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
848 次

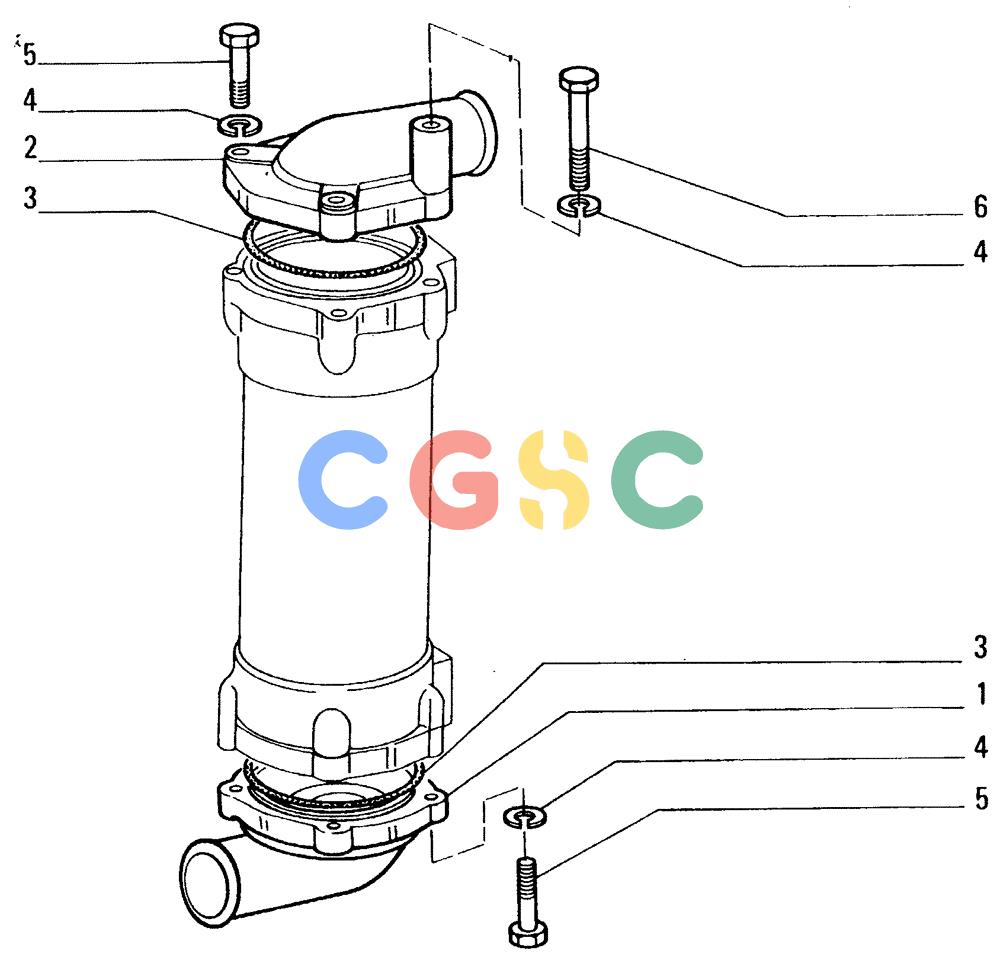

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79098824 | [1] | CAP | LEC |
| 2. | 79098825 | [1] | CAP | LEC |
| 3. | 4821889 | [2] | O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro | LEC0-RING Superseded by part number: 14466981 |
| 4. | 10516679 | [8] | LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM | BHBLOCKWASHER 8,1x2,2 Superseded by part number: 83990583 |
| 5. | 16043931 | [7] | SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 16043934 |
| 6. | 16044631 | [1] | SCREW,Hex, M8 x 70mm, Cl 10.9 | LEC Superseded by part number: 86556137 |
