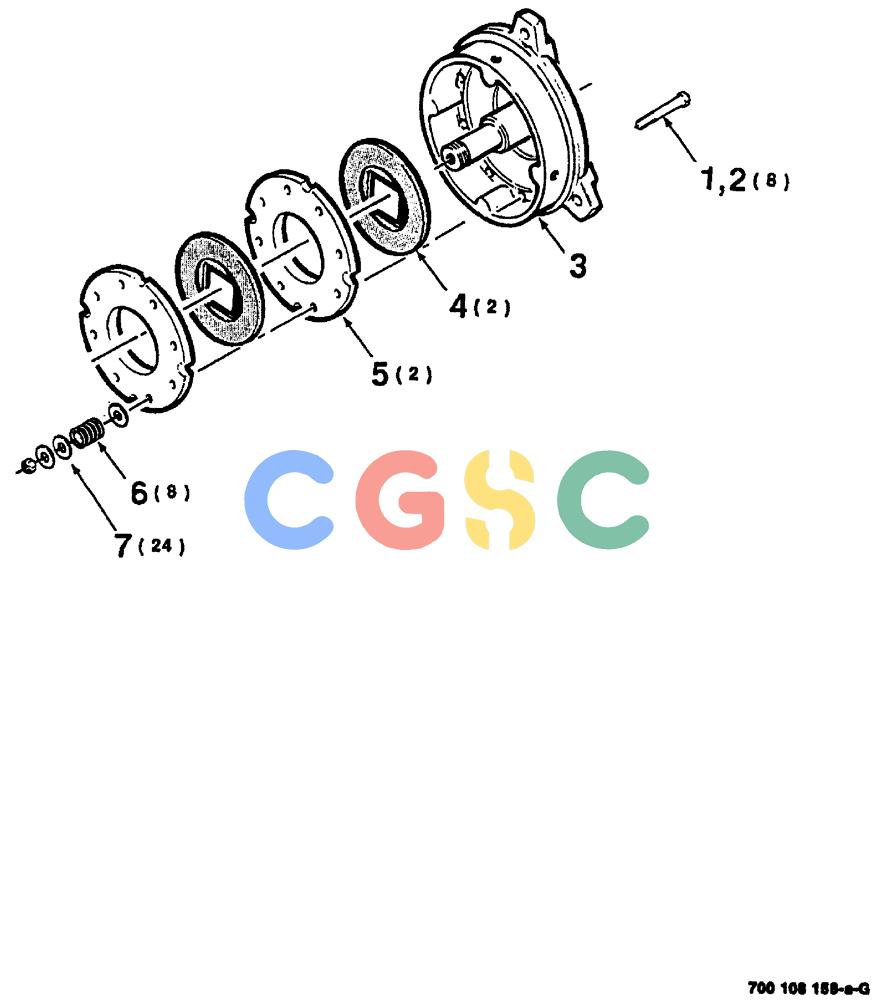

凯斯零件查询(8555) - CASE IH RECTANGULAR BALER (1/90-12/99) (02-10) - SLIP CLUTCH (PRIMARY) DRIVE ASSEMBLY (S.N. CFH0046501 THRU CFH0046872) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
588 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-680
|
[8] |
BOLT,Hex, 3/8" - 16 x 5", Gr 5
|
CAS
Superseded by part number: 280177
|
| 2. |
231-4116
|
[8] |
NUT,3/8"-16, GB
|
CAS
lock hex top, 3/8-16, GR/B Superseded by part number: 88902, E64197
|
| 3. |
700108160
|
[1] |
HOUSING
|
CAS
clutch
|
| 4. |
6522874
|
[2] |
DISC,104.8mm ID x 174.62mm OD x 6.35mm Thk
|
CAS
friction
|
| 5. |
6522866
|
[2] |
CLUTCH PLATE
|
CAS
|
| 6. |
700707442
|
[8] |
SPRING
|
CAS
compression
|
| 7. |
495-21044
|
[24] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
