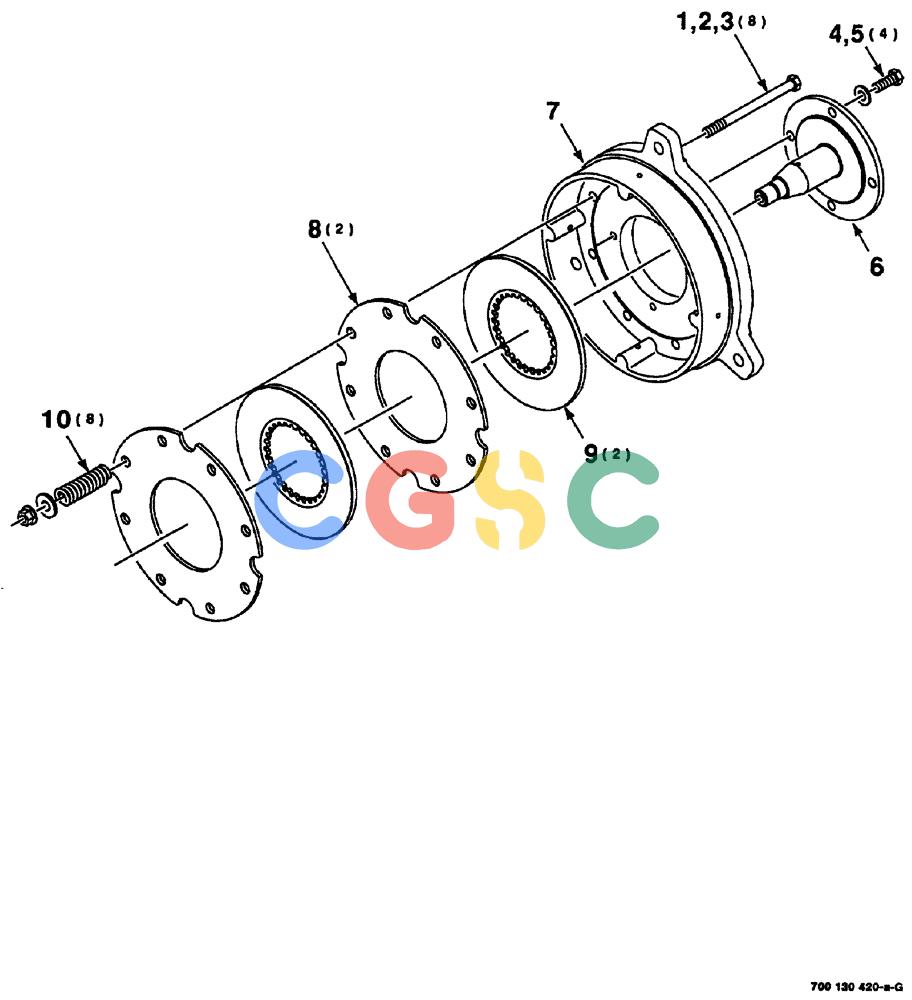

凯斯零件查询(8555) - CASE IH RECTANGULAR BALER (1/90-12/99) (02-12) - SLIP CLUTCH (PRIMARY) DRIVE ASSEMBLY (S.N. CFH0046873 AND LATER) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
296 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-672
|
[8] |
BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5
|
CAS
SCREW hex cap, 3/8-16 x 4-1/2 Superseded by part number: 86505980
|
| 2. |
495-21044
|
[8] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 3. |
232-5316
|
[8] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
lock hex flange top, 3/8-16, GR/G Superseded by part number: 86521609
|
| 4. |
413-616
|
[4] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 5. |
496-11041
|
[4] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
plain hardened, 3/8 Superseded by part number: 86632588
|
| 6. |
700130422
|
[1] |
HOUSING
|
CAS
PILOTclutch, WA Superseded by part number: 700155094
|
| 7. |
700130421
|
[1] |
HOUSING
|
HFI
clutch
|
| 8. |
6522866
|
[2] |
CLUTCH PLATE
|
CAS
|
| 9. |
700108820
|
[2] |
DISC
|
CAS
DISC ASSEMBLY friction
|
| 10. |
700707442
|
[8] |
SPRING
|
CAS
compression
|
