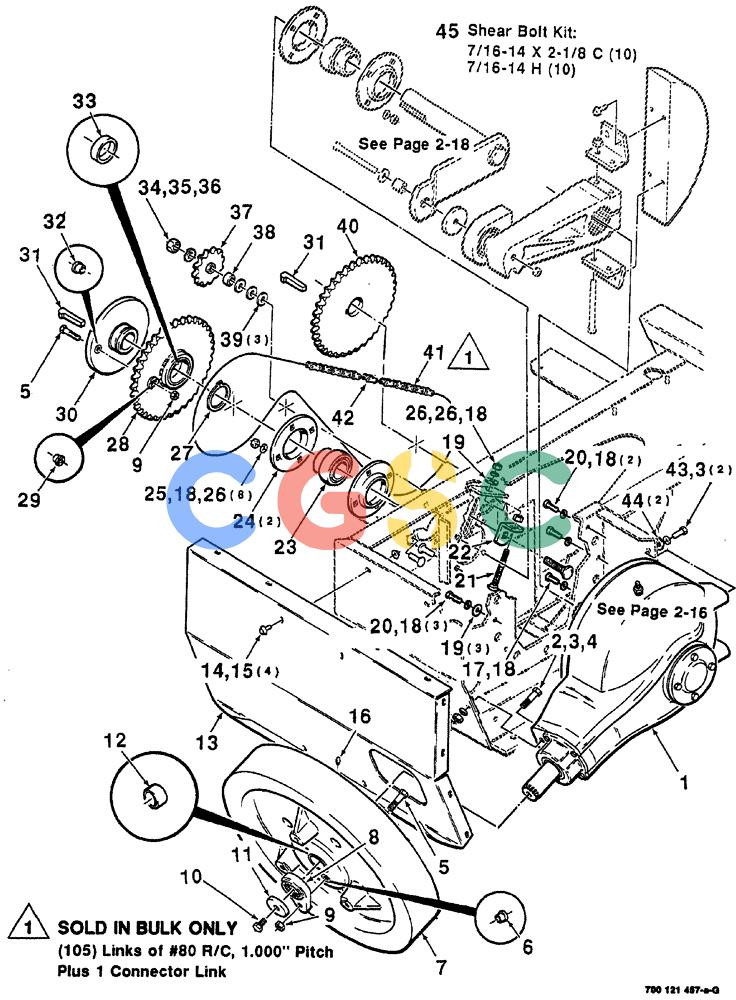

| 1. |
700108490
|
[1] |
GEARBOX ASSY
|
CAS
|
| 2. |
413-1032
|
[1] |
BOLT,Hex, 5/8" - 11 x 2", Gr 5
|
CAS
Superseded by part number: 86505999
|
| 3. |
492-11062
|
[3] |
BEARING WASHER,5/8"
|
CAS
Superseded by part number: 86729275
|
| 4. |
425-1010
|
[1] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 5. |
7884950
|
[2] |
BOLT
|
CAS
SCREW hex cap, 7/16-14 x 2-1/8, grade 8
|
| 6. |
7852718
|
[1] |
SLEEVE
|
CAS
shear Superseded by part number: 196727
|
| 7. |
700108500
|
[1] |
BALER FLYWHEEL
|
HFI
ASSEMBLY, Includes: Ref. 6 and 12
|
| 8. |
7895485
|
[1] |
HUB
|
CAS
shear
|
| 9. |
429-107
|
[2] |
NUT,7/16"-14, G8
|
CAS
|
| 10. |
7884737
|
[1] |
BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2", Gr 5, Full Thd
|
CAS
SCREW hex, Nylok, 5/8-11 x 1-1/2
|
| 11. |
6522957
|
[1] |
WASHER
|
CAS
|
| 12. |
700703809
|
[1] |
BRONZE BUSHING
|
CAS
bronze
|
| 13. |
700108499
|
[1] |
SHIELD
|
HFI
front
|
| 14. |
409-7612
|
[4] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 15. |
231-5146
|
[4] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 16. |
219-8
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 17. |
413-816
|
[1] |
BOLT,Hex, 1/2" - 13 x 1", Gr 5
|
CAS
Superseded by part number: 87909, BN50282
|
| 18. |
80679
|
[15] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 19. |
705541
|
[4] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
hardened, plain, 1/2
|
| 20. |
413-820
|
[5] |
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187215, 87670
|
| 21. |
7770787
|
[1] |
FITTING,Sq Nk, 1/2" - 13 x 4", Gr 5, Full Thd
|
CAS
BOLT full thread round head square neck, 1/2-13 x 4
|
| 22. |
700108515
|
[1] |
ANGLE
|
HFI
|
| 23. |
712158
|
[1] |
SPHERICAL BEARING,2" ID x 100 mm OD
|
L
spherical Superseded by part number: 47577203
|
| 24. |
714360
|
[2] |
FLANGED BEARING
|
IH
flange
|
| 25. |
433-820
|
[8] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 87868
|
| 26. |
425-108
|
[10] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 27. |
100-11275
|
[1] |
SNAP RING,#275, Ext
|
CAS
Superseded by part number: 43642
|
| 28. |
700108516
|
[1] |
SPROCKET ASSY.
|
CAS
35T, Includes: Ref. 29 and 33
|
| 29. |
700108519
|
[1] |
SLEEVE
|
CAS
shear
|
| 30. |
700108520
|
[1] |
HUB
|
CAS
ASSEMBLY, Includes: Ref. 32
|
| 31. |
61747
|
[2] |
KEY
|
CAS
GIB, 1/2 x 2-1/2
|
| 32. |
6855837
|
[1] |
SLEEVE
|
CAS
shear
|
| 33. |
700108528
|
[1] |
BRONZE BUSHING
|
CAS
bronze
|
| 34. |
11-1248
|
[1] |
CARRIAGE BOLT,Short NK, 3/4"-10 x 7 1/2", G2
|
CAS
round head square neck, 3/4-10 x 3
|
| 35. |
492-11075
|
[1] |
LOCK WASHER,3/4"
|
CAS
3/4" Superseded by part number: 87340
|
| 36. |
425-1012
|
[1] |
NUT,3/4"-10, G5
|
CAS
Superseded by part number: 280954
|
| 37. |
51200277
|
[1] |
SPROCKET ASSY.
|
CAS
idler, 12T
|
| 38. |
337527
|
[1] |
SPACER
|
HFI
|
| 39. |
705566
|
[3] |
WASHER
|
IH
hardened, plain, 3/4
|
| 40. |
700108702
|
[1] |
SPROCKET ASSY.
|
CAS
80B35
|
| 41. |
654437R91
|
[1] |
CHAIN (AG)
|
IH
roller, No. 80, 10 foot bulk
|
| 42. |
241-1418
|
[1] |
SPRING CLIP
|
CAS
CONNECTOR link, No. 80, R/C
|
| 43. |
413-1024
|
[2] |
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 88062
|
| 44. |
396-21066
|
[2] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
5/8" bolt size Superseded by part number: 87613283
|
| 45. |
6521868
|
[1] |
BOLT
|
CAS
KIT shear, consits of: P/N 7884950, 10 and 7774995, 10 % ' TO0 121 457-a-L Superseded by part number: 226228
|
