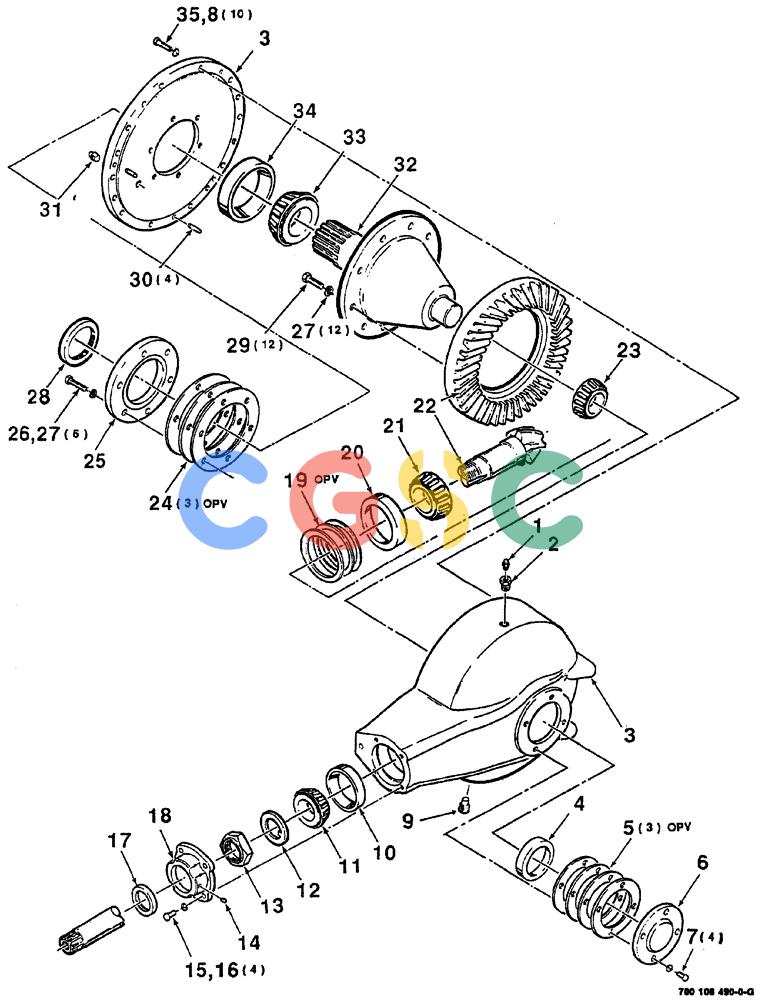

700108490
|
[1] |
GEARBOX ASSY
|
CAS
complete
|
| 1. |
152127H1
|
[1] |
BREATHER,1/8"-27, Short
|
IH
PLUG vent Superseded by part number: 219-433
|
| 2. |
221-93
|
[1] |
REDUCER,Hex, 3/4" x 1/2" NPT
|
CAS
|
| 3. |
700108491
|
[1] |
DRIVE
|
HFI
GEARBOX ASSEMBLY, Includes: Ref. 8, 30, and 35
|
| 4. |
L35931
|
[1] |
BEARING CUP
|
CAS
bearing cap, left Superseded by part number: 9671391
|
| 5. |
700703813
|
[3] |
ADJUSTING PLATE
|
CAS
left cap, .010
|
| . . |
700703814
|
[3] |
SHIM
|
CAS
left cap, .012
|
| . . |
700703815
|
[3] |
SHIM
|
CAS
left cap, .015
|
| 6. |
700108495
|
[1] |
CAP
|
HFI
left
|
| 7. |
121-237
|
[4] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
hex flange, 3/8-16 x 1-1/4, grade 8 Superseded by part number: 87327172
|
| 8. |
492-11038
|
[10] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 9. |
8746638
|
[1] |
PLUG
|
CAS
drain magnet
|
| 10. |
700703794
|
[1] |
BEARING CUP,120 mm OD x 23.444 mm
|
CAS
front cup Superseded by part number: 510592
|
| 11. |
700703795
|
[1] |
ROLLER BEARING,63.5 mm ID x 30.162 mm
|
CAS
front
|
| 12. |
700703803
|
[1] |
WASHER
|
CAS
stake
|
| 13. |
700703806
|
[1] |
NUT
|
CAS
stake
|
| 14. |
219-8
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 15. |
413-516
|
[4] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5
|
CAS
Superseded by part number: 9635884, 72187198
|
| 16. |
492-11031
|
[4] |
LOCK WASHER,5/16"
|
CAS
Superseded by part number: 83990583
|
| 17. |
700703804
|
[1] |
SEAL
|
CAS
front
|
| 18. |
700108494
|
[1] |
CAP
|
CAS
front
|
| 19. |
700703810
|
[1] |
SHIM
|
CAS
front, .010
|
| . . |
700703811
|
[1] |
SHIM
|
CAS
front, .012
|
| . . |
700703812
|
[1] |
SHIM
|
CAS
front, .015
|
| 20. |
700703796
|
[1] |
BEARING CUP,152.4 mm OD x 31.75 mm
|
CAS
front cup, inner
|
| 21. |
700703797
|
[1] |
ROLLER BEARING,68.26mm ID x 46.04mm W
|
CAS
front, inner
|
| 22. |
700710979
|
[1] |
GEAR-SET
|
CAS
pinion
|
| 23. |
630203C91
|
[1] |
TAPERED BEARING
|
IH
left cone, cap Superseded by part number: 9670004
|
| 24. |
700703822
|
[3] |
SHIM
|
CAS
right cap, .010
|
| . . |
700703823
|
[3] |
SHIM
|
CAS
right cap, .012
|
| . . |
700703824
|
[3] |
SHIM
|
CAS
right cap, .015
|
| 25. |
700108496
|
[1] |
CAP
|
HFI
PLATE right
|
| 26. |
413-824
|
[6] |
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 87689, 72187216
|
| 27. |
80679
|
[18] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 28. |
700703805
|
[1] |
SEAL
|
CAS
right cap
|
| 29. |
326-824
|
[12] |
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8
|
IH
|
| 30. |
37-1624
|
[4] |
DOWEL,3/8" x 1 1/2"
|
CAS
dowel Superseded by part number: 81844
|
| 31. |
746305
|
[1] |
PLUG
|
CAS
square head pipe, 1/2-14 NPT
|
| 32. |
700108497
|
[1] |
RING
|
HFI
GEAR hub
|
| 33. |
L33736
|
[1] |
ROLLER BEARING
|
CAS
CONE right Superseded by part number: 86613319
|
| 34. |
L33731
|
[1] |
BEARING CUP,154.9 mm OD x 27.9 mm
|
CAS
BEARING right Superseded by part number: 86613319
|
| 35. |
413-624
|
[10] |
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 72187209, 88044
|
