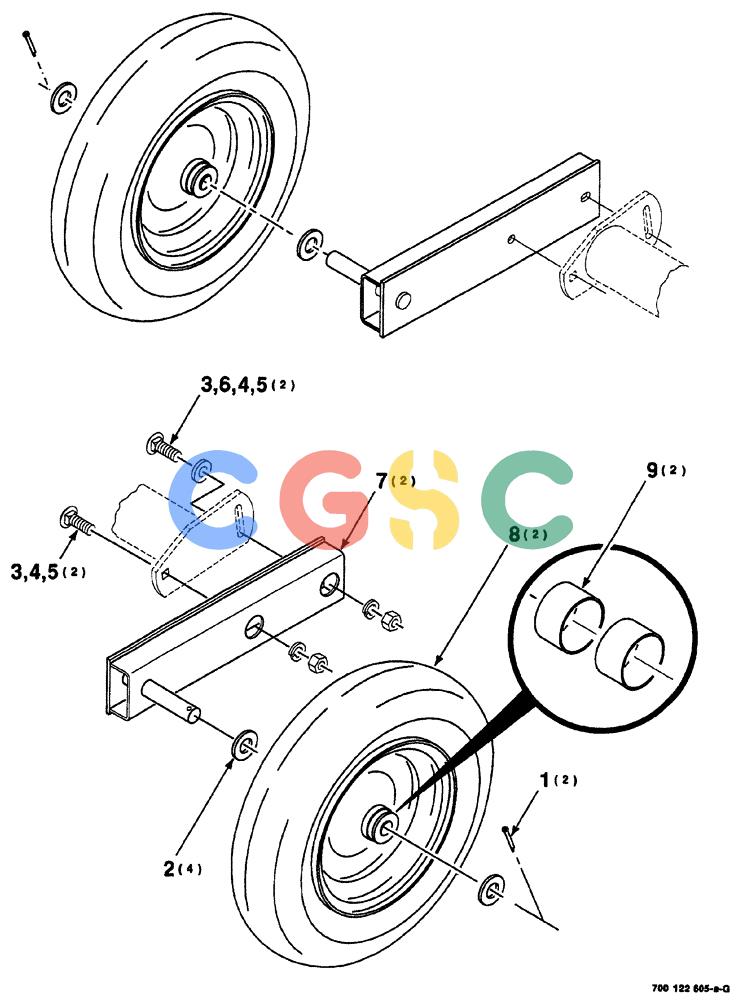

凯斯零件查询(8555) - CASE IH RECTANGULAR BALER (1/90-12/99) (07-06) - GAUGE WHEEL ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
223 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
432-1224
|
[2] |
COTTER PIN,3/16" x 1-1/2"
|
CAS
Superseded by part number: 80754
|
| 2. |
705574
|
[4] |
WASHER,1 1/8" x 2" x .156", HDN
|
CAS
|
| 3. |
433-824
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
CAS
Superseded by part number: 280420, 72187237
|
| 4. |
80679
|
[4] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 5. |
425-108
|
[4] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 6. |
705541
|
[2] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
hardened, plain, 1/2
|
| 7. |
700108632
|
[2] |
STRUT
|
HFI
WA
|
| 8. |
700707953
|
[2] |
RIM
|
CAS
WHEEL WHEEL gauge, Includes: Ref. 9 Superseded by part number: 705574, 84351108
|
| 9. |
700712011
|
[2] |
BUSHING
|
CAS
|
