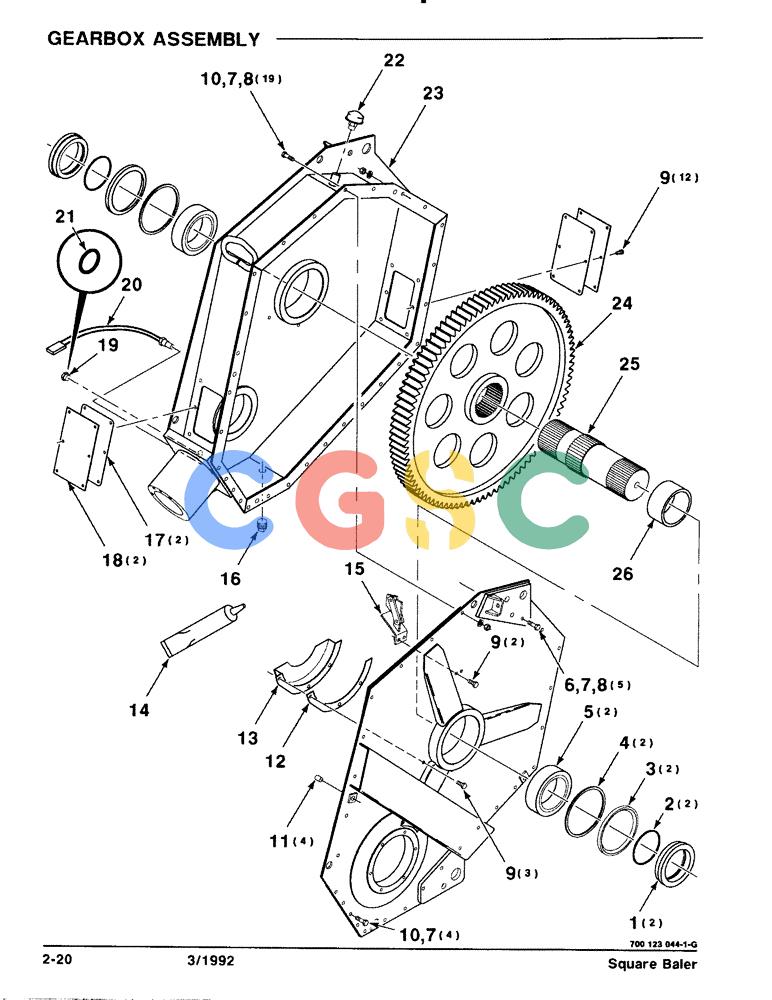

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (2-20) - GEARBOX ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
257 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123104
|
[2] |
SPACER
|
CAS
- OUTPUT
|
| 2. |
737221
|
[2] |
O-RING
|
CAS
O-RING
|
| 3. |
700706047
|
[2] |
SEAL
|
CAS
- OIL
|
| 4. |
700710385
|
[2] |
SNAP RING
|
CAS
RING - RETAINING
|
| 5. |
700710381
|
[2] |
SPHERICAL BEARING,120 mm ID x 180 mm OD x 46 mm
|
CAS
BEARING - ROLLER, SPHERICAL
|
| 6. |
700708353
|
[5] |
SCREW
|
HFI
M12 X 1.75 X 40 C
|
| 7. |
700708343
|
[28] |
WASHER
|
CAS
12 L Superseded by part number: 892-10012
|
| 8. |
7704406
|
[24] |
NUT,M12, Cl 10
|
CAS
M12 X 1.75 H Superseded by part number: 337475
|
| 9. |
700708349
|
[17] |
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd
|
CAS
M10 X 1.5 X 25 C Superseded by part number: 11106231
|
| 10. |
700708351
|
[23] |
BOLT
|
CAS
M12 X 1.75 X 30 C Superseded by part number: 9706687
|
| 11. |
700709990
|
[4] |
PIN
|
CAS
5/8 X 1 DOWEL PIN
|
| 12. |
700706080
|
[1] |
GASKET
|
CAS
|
| 13. |
700123106
|
[1] |
FLANGE
|
CAS
WA
|
| 14. |
700707823
|
[1] |
SEALANT
|
CAS
- 305 ml / 10.3 OZ Superseded by part number: MC37464
|
| 15. |
700123110
|
[1] |
SCRAPER
|
CAS
WA - LEFT
|
| 16. |
7746100
|
[1] |
PLUG
|
CAS
- PIPE Superseded by part number: 221-846
|
| 17. |
700710372
|
[2] |
GASKET
|
CAS
|
| 18. |
700123105
|
[2] |
COVER
|
CAS
|
| 19. |
700701293
|
[1] |
PLUG
|
CAS
O-RING PLUG (Includes Item 21) Superseded by part number: 9672438
|
| 20. |
700706142
|
[1] |
THERMOSTAT
|
CAS
ASSEMBLY
|
| 21. |
7040397
|
[1] |
O-RING
|
IH
Superseded by part number: 165202
|
| 22. |
8799280
|
[1] |
FILTER
|
CAS
BREATHER
|
| 23. |
700123045
|
[1] |
HOUSING
|
HFI
GEARBOX HSG ASM (Includes Lid)
|
| 24. |
700710354
|
[1] |
GEAR
|
CAS
- OUTPUT
|
| 25. |
700123098
|
[1] |
SHAFT
|
CAS
- OUTPUT
|
| 26. |
700123099
|
[1] |
SPACER
|
CAS
- LEFT
|
