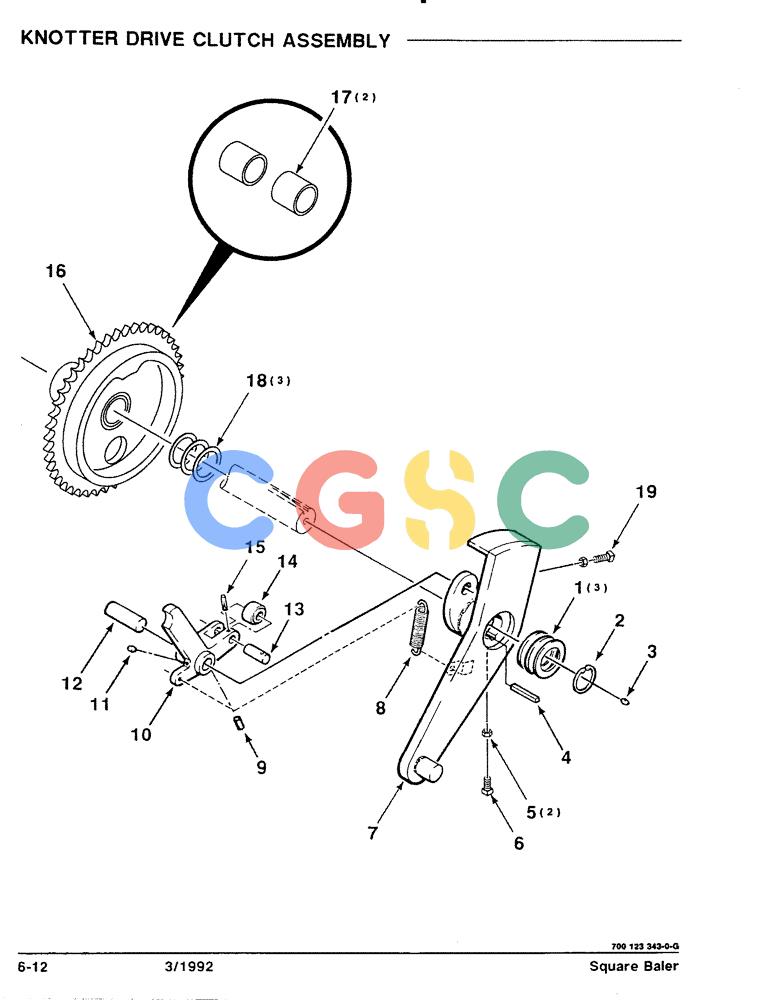

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (6-12) - KNOTTER DRIVE CLUTCH ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
947 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
6523534
|
[3] |
SHIM
|
CAS
|
| 2. |
52605
|
[1] |
RING
|
CAS
- RETAINING, EXTERNAL
|
| 3. |
77065
|
[1] |
LUBE NIPPLE,1/8"-27 x .66 lg
|
CAS
1/8-27 ZERK Superseded by part number: 80710
|
| 4. |
61879
|
[1] |
KEY
|
CAS
1/2 X 1/2 X 1-1/2 KEY
|
| 5. |
700710414
|
[2] |
JAM NUT
|
CAS
1/2-13 HEX JAM NUT GRD 8 BF
|
| 6. |
69260
|
[1] |
SET SCREW,Sq Hd, 1/2"-13 x 1"
|
CAS
1/2-13 X 1 CPSQHSS Superseded by part number: 85-816
|
| 7. |
700123348
|
[1] |
ARM
|
CAS
- CLUTCH, NEEDLE
|
| 8. |
758268
|
[1] |
SPRING
|
CAS
- EXTENSION
|
| 9. |
708230
|
[1] |
BOLT,5/16" - 18 x 3/4"
|
CAS
5/16-18 X 3/4 HDPHSS Superseded by part number: 80432
|
| 10. |
6523526
|
[1] |
CLUTCH
|
CAS
ARM - DOG Superseded by part number: 700124052
|
| 11. |
219-90
|
[1] |
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
|
CAS
1/4-28 X 45 DEGREE ZERK Superseded by part number: 87569
|
| 12. |
6523518
|
[1] |
SHAFT
|
CAS
- PIVOT, DOG
|
| 13. |
6524649
|
[1] |
PIN
|
CAS
SHAFT - ROLLER
|
| 14. |
6524623
|
[1] |
ROLLER,41.28mm OD x 18.67mm L
|
CAS
- CAM
|
| 15. |
763987
|
[1] |
PIN
|
CAS
1/4 X 1-1/4 GROOVE PIN Superseded by part number: 135-358
|
| 16. |
700123343
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET ASM. (Includes Item 17)
|
| 17. |
700122883
|
[2] |
BRONZE BUSHING
|
CAS
BEARING - BRONZE
|
| 18. |
6523500
|
[3] |
WASHER
|
CAS
BUSHING
|
| 19. |
708081
|
[1] |
SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"
|
CAS
1/2-13 X 1-1/4 SQHSS
|
