纽荷兰零件查询(FD14E) - CRAWLER DOZER (94.5220[001]) - RIPPER (PD)-SUPPORT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
917 次

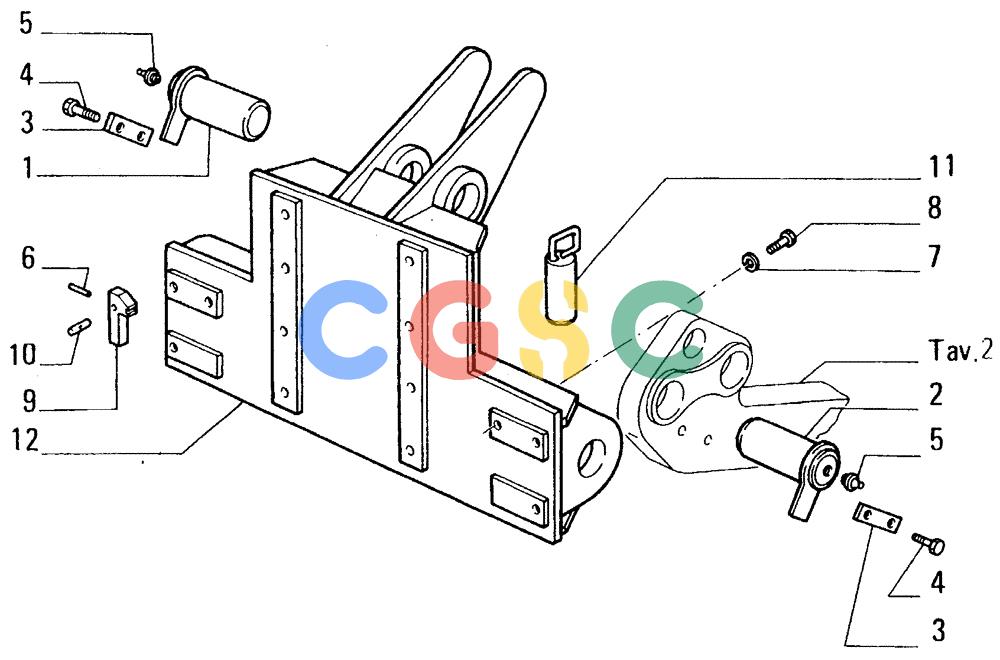

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8299713 | [1] | PIN | LEC |
| 2. | 8299929 | [2] | PIN | LEC |
| 3. | 8299995 | [3] | LOCKING PLATE | LECPLATE Superseded by part number: 76092109 |
| 4. | 11112434 | [6] | BOLT,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11112431 |
| 5. | 13407211 | [3] | LUBE NIPPLE,M10 x 1 | TTFNIPPLE, LUBE, M10 x 1 Superseded by part number: 84351730 |
| 6. | 14164470 | [1] | LOCK PIN,M4 x 32, Slotted | JESSPRING PIN 4,4x32 |
| 7. | 14497331 | [14] | WASHER,25mm ID x 44mm OD x 4mm Thk | LEC24,4x44 Superseded by part number: 86511328 |
| 8. | 15997334 | [14] | SCREW | LEC Superseded by part number: 15997337 |
| 9. | 79024883 | [1] | BLOCK | LEC |
| 10. | 79024884 | [1] | PIN | LEC |
| 11. | 79038238 | [1] | PIN | LEC |
| 12. | 79088525 | [1] | PLATE | LEC |
