纽荷兰零件查询(FD14E) - CRAWLER DOZER (94.5220[002]) - RIPPER (PD)-FRAME New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1006 次

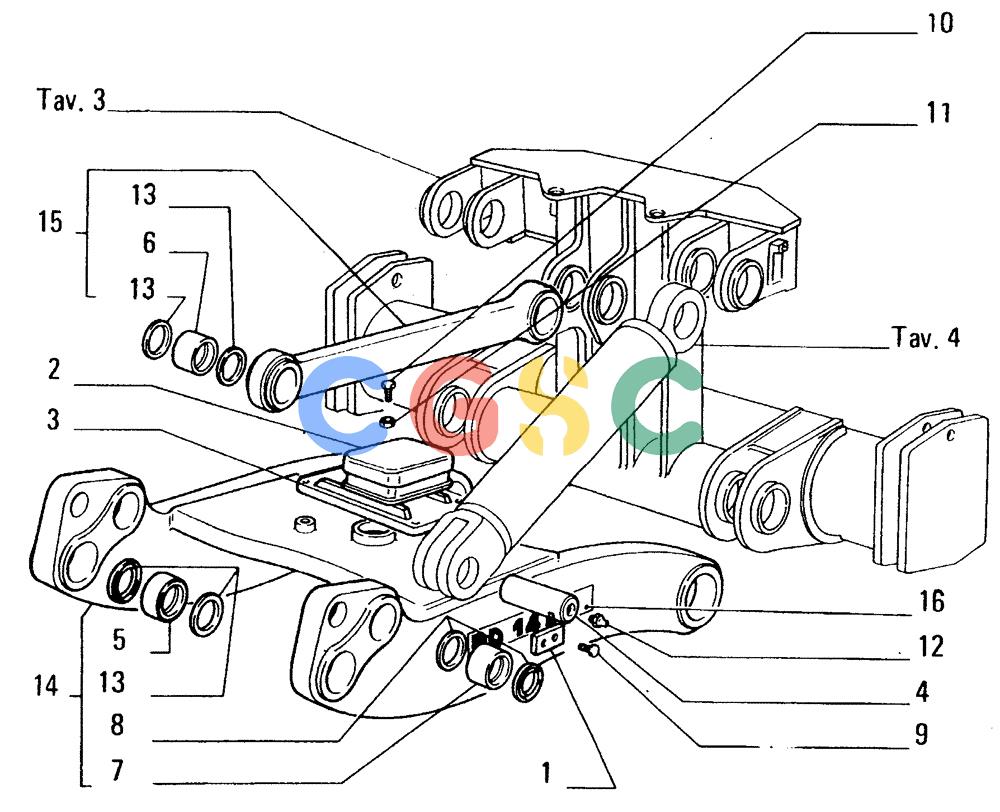

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8270126 | [2] | PLATE | LEC Superseded by part number: 76092114 |
| 2. | 8285989 | [1] | PAD | LECBLOCK Superseded by part number: 76092115 |
| 3. | 8285990 | [1] | PLATE | LEC Superseded by part number: 76092116 |
| 4. | 8299715 | [2] | PIN | LEC |
| 5. | 8299716 | [4] | BUSHING | LEC |
| 6. | 8299718 | [2] | BUSHING | LEC |
| 7. | 8299739 | [2] | BUSHING | LEC |
| 8. | 8299740 | [4] | BRAKE LINING | LEC0-RING Superseded by part number: 79065568 |
| 9. | 11115334 | [4] | BOLT,Hex, M14 x 25, 10.9, Full Thd | LECSCREW 14x2x25 Superseded by part number: 11115331 |
| 10. | 11118534 | [4] | SCREW | HIT16x2x40 Superseded by part number: 11118537 |
| 11. | 12575121 | [1] | NUT,M20 x 1.5, Cl 10 | IMONUT 20x1,5x23 |
| 12. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTFNIPPLE, LUBE, M10 x 1 Superseded by part number: 84351730 |
| 13. | 79023900 | [8] | SEALING RING,80mm ID x 95mm OD x 7.5mm Thk | LEC0-RING |
| 14. | 79037316 | [1] | FRAME | LECMAIN FRAME - ASSEMBLY |
| 15. | 79037729 | [1] | LINK CONROD | LECSTRUT - ASSEMBLY Superseded by part number: 79099476 |
| 16. | 76030766 | [1] | DECAL | LECTRADE MARK Superseded by part number: 76030758 |
