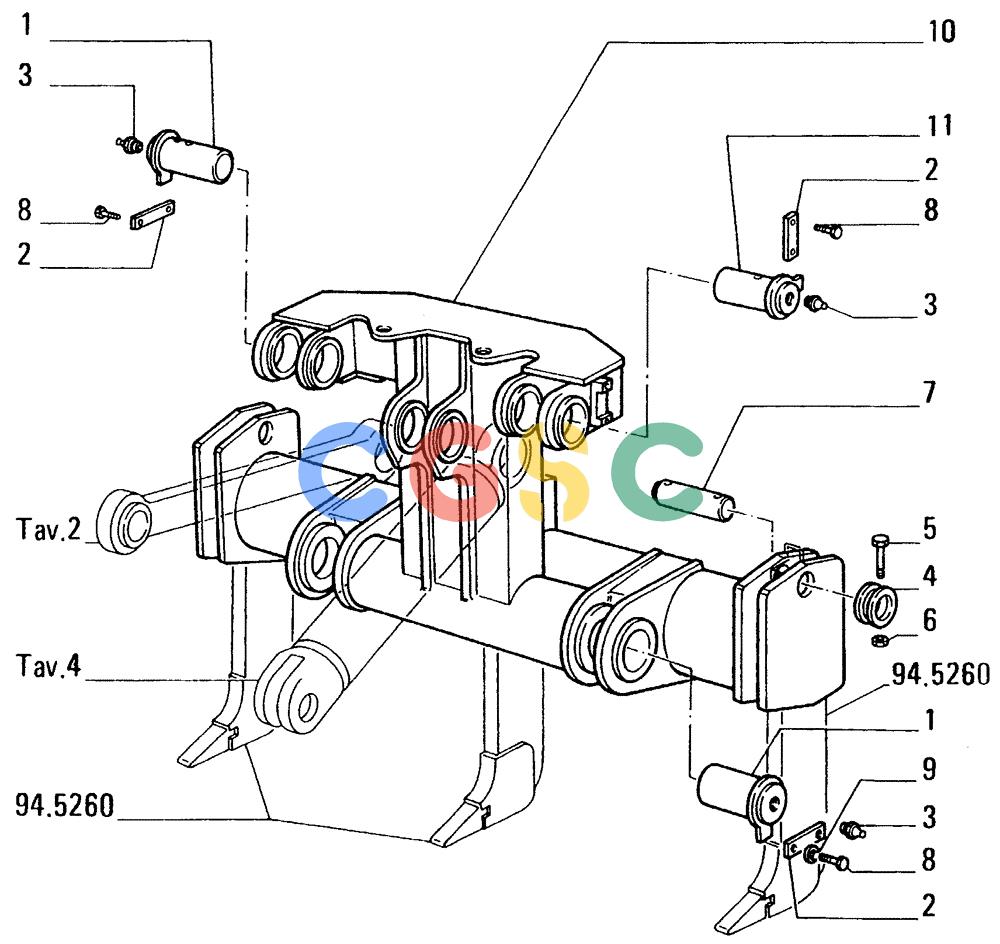

纽荷兰零件查询(FD14E) - CRAWLER DOZER (94.5220[003]) - RIPPER (PD)-TOOL BAR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
538 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8299713 | [3] | PIN | LEC |
| 2. | 8299995 | [5] | LOCKING PLATE | LECPLATE Superseded by part number: 76092109 |
| 3. | 13407211 | [5] | LUBE NIPPLE,M10 x 1 | TTFNIPPLE, LUBE, M10 x 1 Superseded by part number: 84351730 |
| 4. | 8299968 | [6] | RING | LEC Superseded by part number: 76092119 |
| 5. | 11114034 | [6] | BOLT,Hex, M12 x 90, 10.9, Full Thd | BASSCREW 12x1,75x90 Superseded by part number: 412605 |
| 6. | 12577521 | [6] | NUT,M12 x 1.75 | LECNUT, LOCK, M12 x 1.75 |
| 7. | 79038232 | [3] | PIN | LEC |
| 8. | 11112434 | [10] | BOLT,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11112431 |
| 9. | 12648531 | [4] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 10. | 79037755 | [1] | FRAME | LECBAR |
| 11. | 79038162 | [2] | PIN | LEC |
