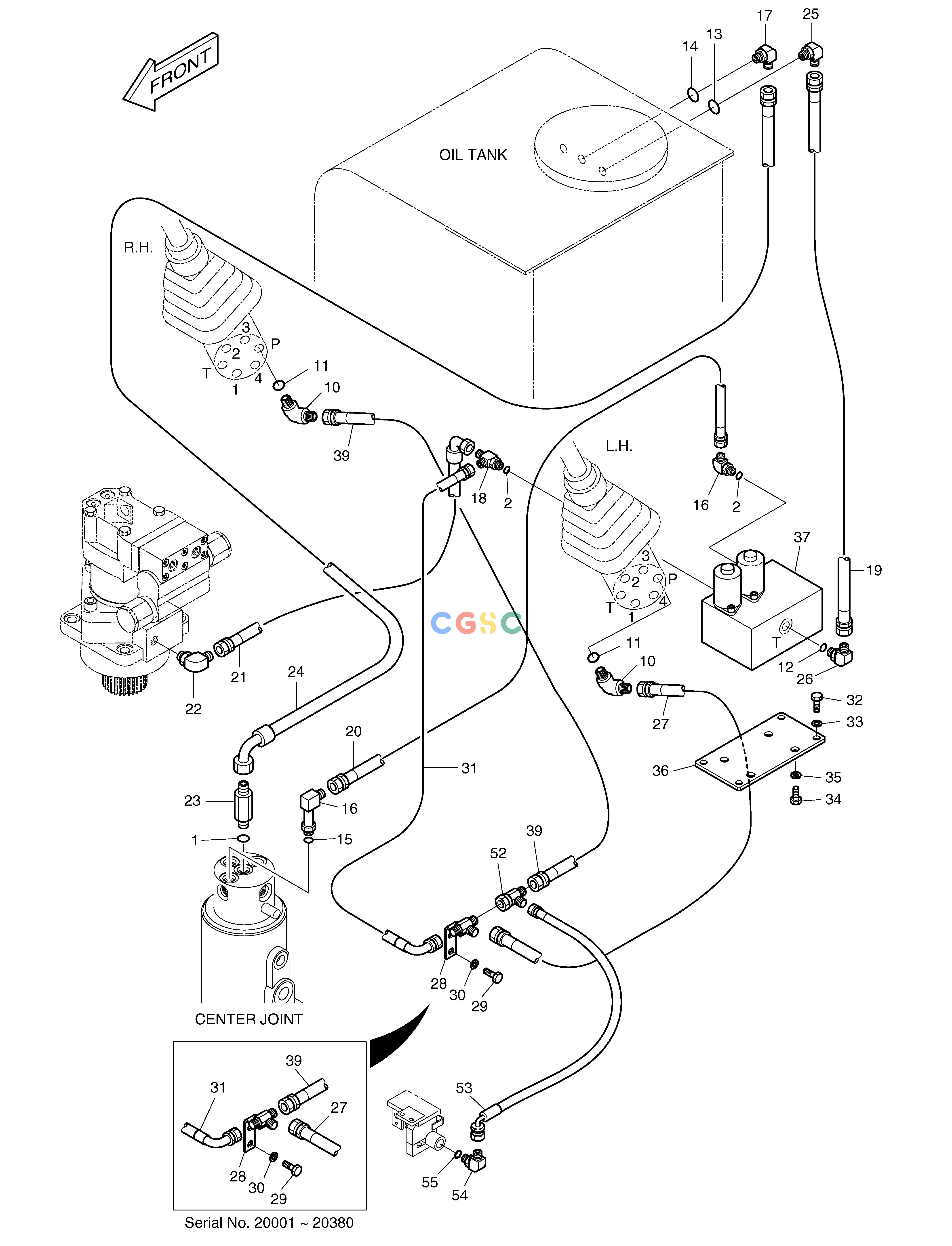

斗山零件查询PILOT PIPING(1) SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
254 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-7093
|
[-] |
PILOT PIPING
|
|
| 1. |
S8000111
|
[1] |
O-RING
|
|
| 10. |
2181-2430D1
|
[2] |
ELBOW
|
|
| 11. |
S8000111
|
[2] |
O-RING
|
|
| 12. |
S8000141
|
[1] |
O-RING
|
|
| 13. |
S8000141
|
[1] |
O-RING
|
|
| 14. |
S8000111
|
[1] |
O-RING
|
|
| 15. |
S8000111
|
[1] |
O-RING
|
|
| 16. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 17. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 18. |
2181-1951D1
|
[1] |
TEE
|
|
| 19. |
2184-1026D123
|
[1] |
HOSE PF3/8-1650L
|
|
| 2. |
S8000111
|
[2] |
O-RING
|
|
| 20. |
2184-1045D83
|
[1] |
HOSE PF1/4-1400L
|
|
| 21. |
2184-1046D82
|
[1] |
HOSE PF1/4-850L
|
|
| 22. |
2181-1112D1
|
[1] |
ELBOW PT1/4-PF1/4
|
|
| 23. |
2181-1126D75
|
[1] |
ADAPTER
|
|
| 24. |
2184-1046D169
|
[1] |
HOSE PF1/4-1600L
|
|
| 25. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 26. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 27. |
2184-1045D111
|
[1] |
HOSE PF1/4-1570L
|
|
| 28. |
181-00061A
|
[1] |
MANIFOLD
|
|
| 29. |
S0508653
|
[2] |
BOLT
|
|
| 30. |
S5102503
|
[2] |
. WASHER
|
|
| 31. |
2184-1046D223
|
[1] |
HOSE PF1/4-1400L
|
|
| 32. |
S0509053
|
[4] |
. BOLT
|
|
| 33. |
S5102503
|
[4] |
. WASHER
|
|
| 34. |
S0511853
|
[4] |
BOLT
|
|
| 35. |
S5102603
|
[4] |
. WASHER
|
|
| 36. |
2621-3509A
|
[1] |
PLATE
|
|
| 37. |
2420-9540B
|
[1] |
SOLENOID VALVE ASS'Y
|
2420-9540C
|
| 37. |
2420-9540C
|
[1] |
SOLENOID VALVE ASS'Y
|
|
| 39. |
2184-1045D221
|
[1] |
HOSE PF1/4-1650L
|
|
| 52. |
181-00837D1
|
[1] |
TEE;UNION
|
|
| 53. |
2184-1046D53
|
[1] |
HOSE PF1/4-730L
|
|
| 54. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 55. |
S8000111
|
[1] |
O-RING
|
|
