纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6545[003]) - FORESTRY PROTECTIONS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
365 次

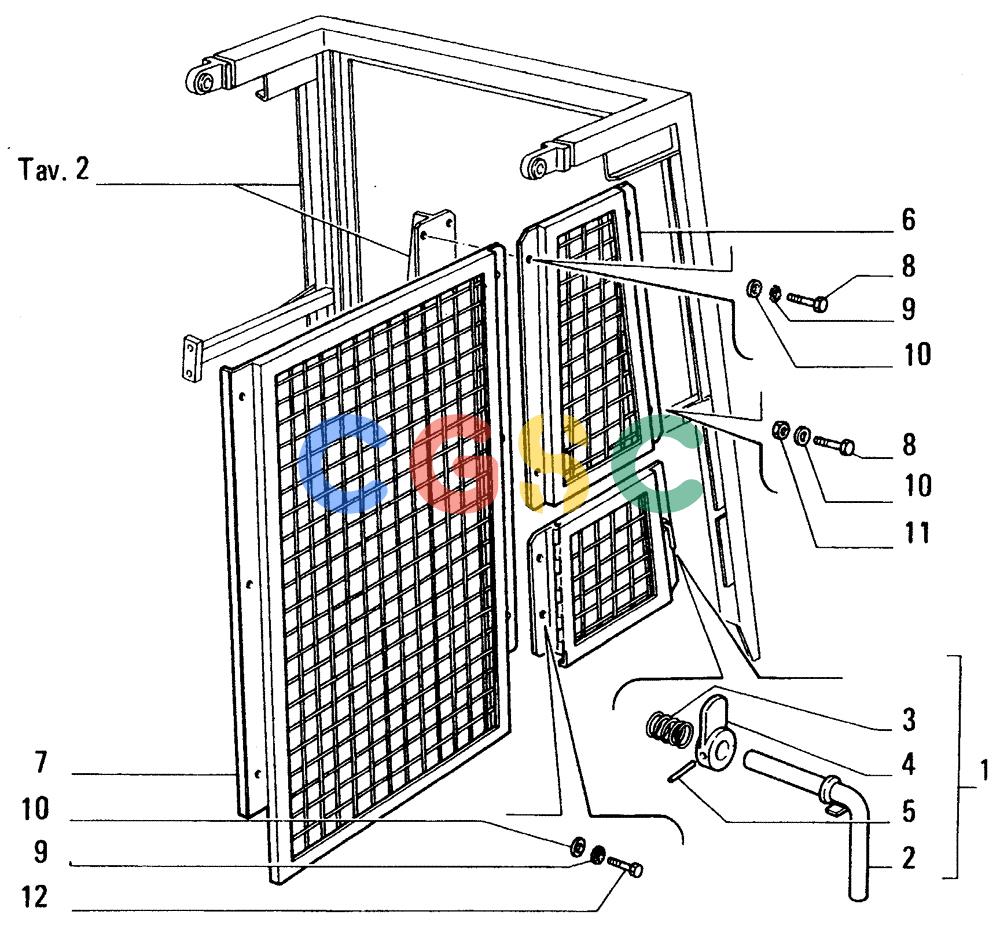

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79088532 | [1] | LID | LECDOOR - ASSEMBLY REAR RIGHT |
| 1. | 79088533 | [1] | LID | LECDOOR - ASSEMBLY REAR LEFT |
| 2. | 79088475 | [1] | HANDLE | LEC |
| 3. | 79009016 | [1] | SPRING | MOD |
| 4. | 79023986 | [1] | LEVER | MOD |
| 5. | 14163170 | [1] | LOCK PIN,M4 x 24, Slotted | TTFPIN, LOCK, M4 x 24, Slotted Superseded by part number: 73172188 |
| 6. | 79088488 | [1] | GRILLE | LECNET - SIDE REAR LEFT |
| 6. | 79088494 | [1] | GRILLE | LECNET - SIDE REAR RIGHT |
| 7. | 79088456 | [1] | GRILLE | LECNET - SIDE LEFT |
| 7. | 79088463 | [1] | GRILLE | LECNET - SIDE RIGHT |
| 8. | 11112634 | [20] | SCREW | IMO12x1,75x35 Superseded by part number: 626-12035 |
| 9. | 10615879 | [20] | LOCK WASHER,Serr, M12 | LECWASHER, LOCK, Serr, M12 Superseded by part number: 10615870 |
| 10. | 79005242 | [24] | WASHER,12.6mm ID x 28mm OD x 7mm Thk | LEC |
| 11. | 12577521 | [4] | NUT,M12 x 1.75 | LECNUT, LOCK, M12 x 1.75 |
| 12. | 11112434 | [4] | BOLT,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11112431 |
