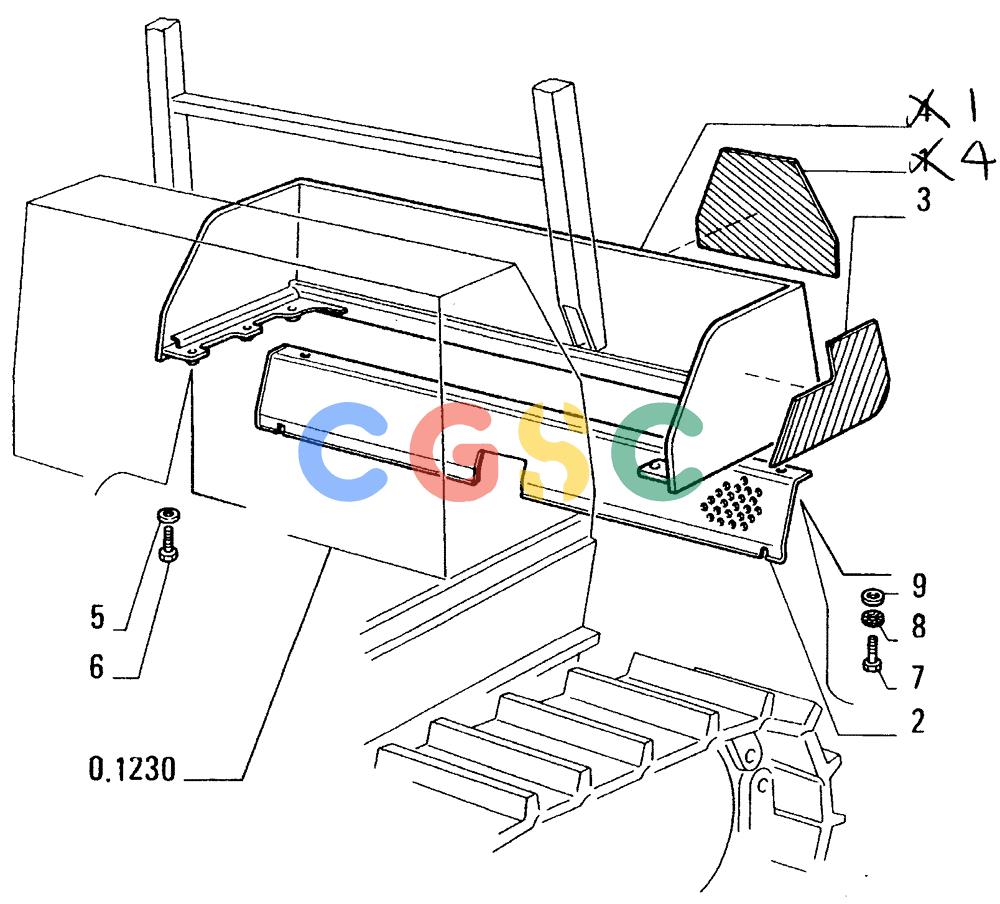

纽荷兰零件查询(FD14E) - CRAWLER DOZER (95.6545[004]) - FORESTRY PROTECTIONS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
205 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79088444 | [1] | GUARD | LECWALL |
| 2. | 79088498 | [1] | GUARD | LEC- REAR |
| 3. | 79094026 | [1] | DECAL | LEC- SIDE LEFT |
| 3. | 79094027 | [1] | DECAL | LEC- SIDE RIGHT |
| 4. | 79071570 | [1] | MAKERS BADGE | LECTRADE MARK |
| 5. | 79005240 | [6] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC |
| 6. | 11390534 | [6] | BOLT,Hex, M16 x 1.5 x 40mm, Cl 10.9 | BASBOLT, Hex, M16 x 40, 10.9, Full Thd |
| 7. | 11112634 | [2] | SCREW | IMO12x1,75x35 Superseded by part number: 626-12035 |
| 8. | 10615879 | [2] | LOCK WASHER,Serr, M12 | LECWASHER, LOCK, Serr, M12 Superseded by part number: 10615870 |
| 9. | 79005242 | [2] | WASHER,12.6mm ID x 28mm OD x 7mm Thk | LEC |
