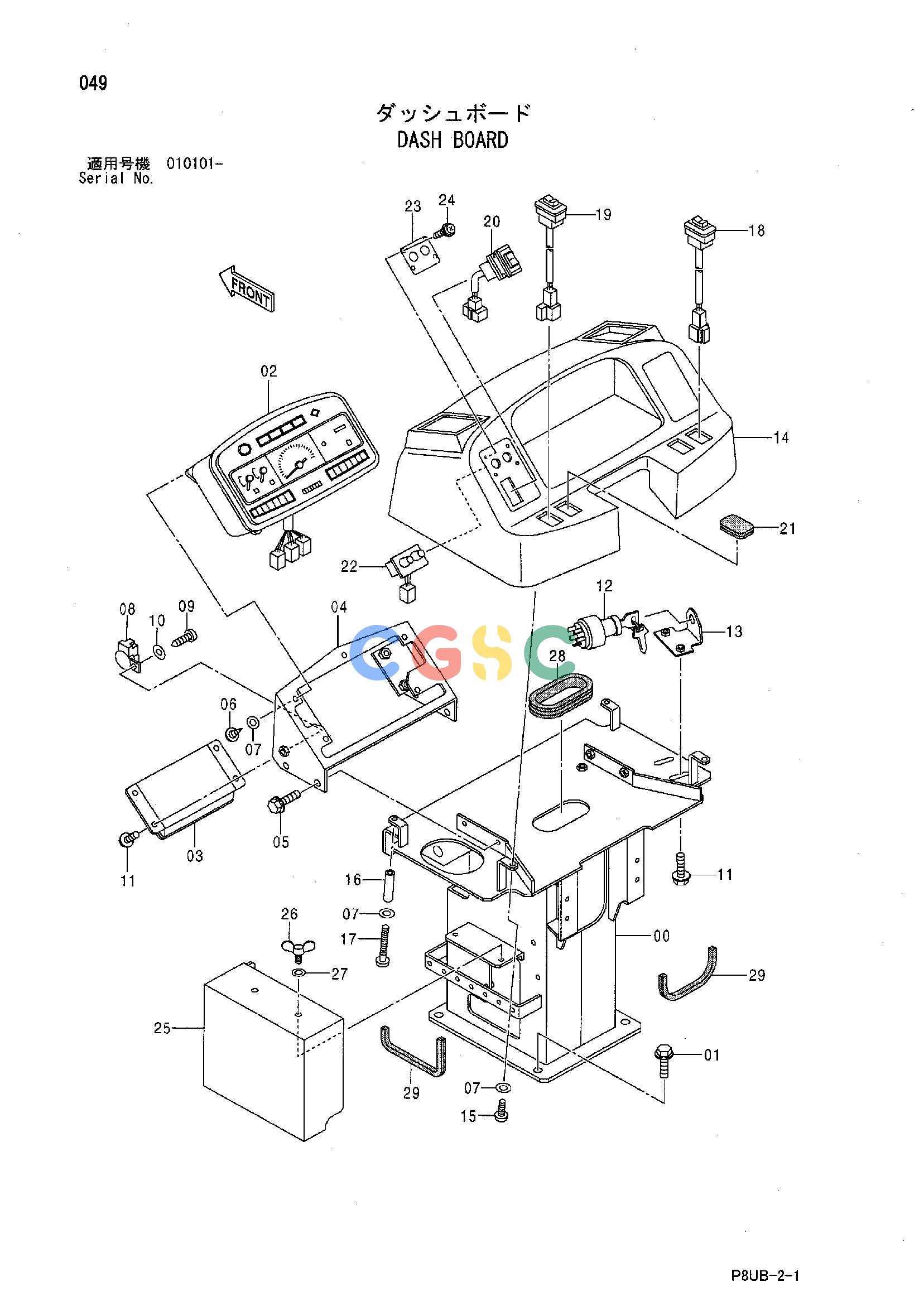

日立零件查询（CP210）DASH BOARD Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
415 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426299 | [1] | STAND | |
| 01. | 500037 | [4] | BOLT;SEMS | |
| 02. | 424371 | [1] | PANEL;GAUGE | |
| 03. | 424370 | [1] | CONTROLLER | |
| 04. | 424176 | [1] | BRACKET | |
| 05. | 947621 | [4] | BOLT;SEMS | |
| 06. | 424221 | [5] | SCREW | |
| 07. | 947322 | [9] | WASHER;PLANE | |
| 08. | 424150 | [1] | BUZZER | |
| 09. | 439857 | [1] | SCREW | |
| 10. | 438155 | [1] | WASHER;PLANE | |
| 11. | 947621 | [6] | BOLT;SEMS | |
| 12. | 424100 | [1] | SWITCH;START | |
| 12A. | +++++++ | [1] | KEY | |
| 13. | 424181 | [1] | BRACKET | |
| 14. | 426264 | [1] | COVER | |
| 15. | 424222 | [2] | SCREW | |
| 16. | 424148 | [2] | PIPE | |
| 17. | 424223 | [2] | SCREW | |
| 18. | 424132 | [1] | SWITCH;TUMBLER | |
| 19. | 424707 | [1] | SWITCH;TUMBLER | |
| 20. | 425237 | [1] | SWITCH;TUMBLER | |
| 21. | 424143 | [2] | BUSHING;RUBBER | |
| 22. | 425227 | [1] | TIMER | |
| 23. | 426232 | [1] | NAME-PLATE | |
| 24. | 425069 | [4] | SCREW;SEMS | |
| 25. | 426323 | [1] | COVER | |
| 26. | 426227 | [2] | BOLT;WING | |
| 27. | 426221 | [2] | PACKING | |
| 28. | 424663 | [1] | BUSHING;RUBBER | |
| 29. | 424429 | [4] | RUBBER | |
