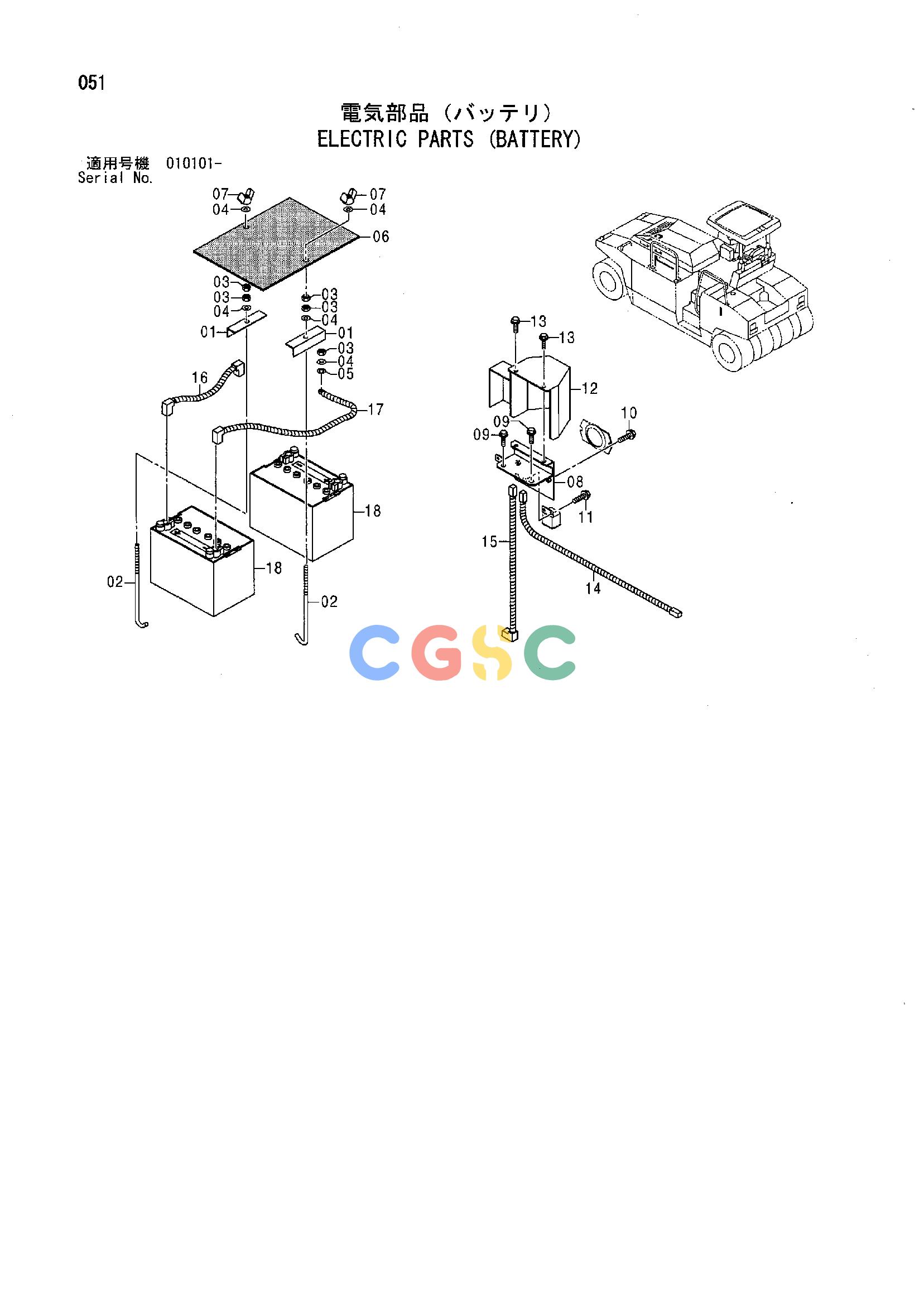

日立零件查询（CP210）ELECTRIC PARTS (BATTERY) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
608 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 424977 | [2] | SUPPORT | |
| 02. | 426157 | [2] | BOLT;HOOK | |
| 03. | 947855 | [5] | NUT | |
| 04. | 947324 | [5] | WASHER;PLANE | |
| 05. | 947887 | [1] | WASHER;SPRING | |
| 06. | 426276 | [1] | RUBBER | |
| 07. | 582001 | [2] | NUT;WING | |
| 08. | 426320 | [1] | BRACKET | |
| 09. | 500048 | [2] | BOLT;SEMS | |
| 10. | 947624 | [2] | BOLT;SEMS | |
| 11. | 947611 | [2] | BOLT;SEMS | |
| 12. | 426309 | [1] | COVER | |
| 13. | 947619 | [2] | BOLT;SEMS | |
| 14. | 426272 | [1] | HARNESS;WIRE | |
| 15. | 426274 | [1] | HARNESS;WIRE | |
| 16. | 426185 | [1] | HARNESS;WIRE | |
| 17. | 426275 | [1] | HARNESS;WIRE | |
| 18. | 902550 | [2] | BATTERY | |
