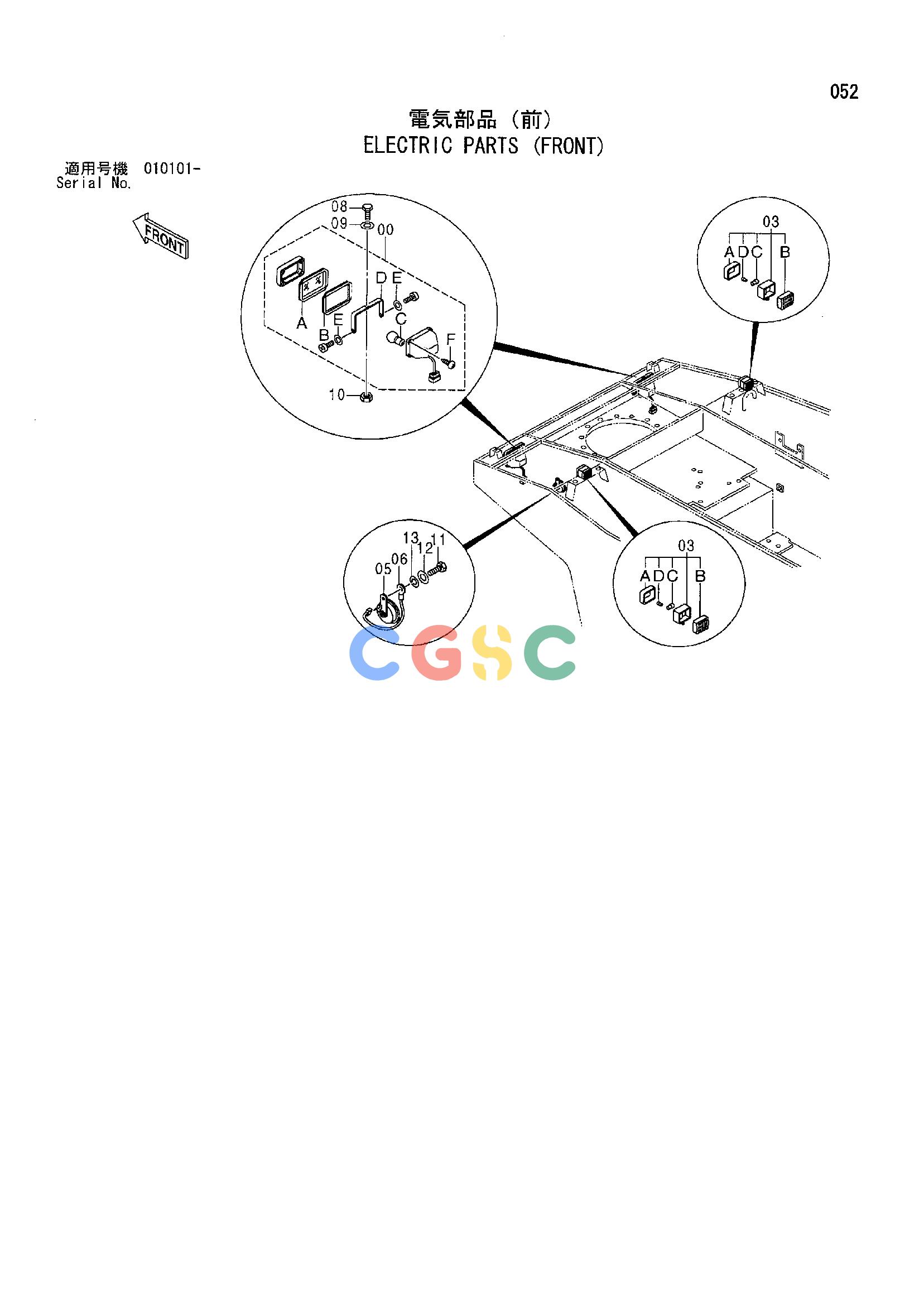

日立零件查询（CP210）ELECTRIC PARTS (FRONT) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
160 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 424287 | [2] | LAMP;HEAD | |
| 00A. | 424695 | [1] | LENS | |
| 00B. | 424705 | [1] | GASKET | |
| 00C. | 424696 | [1] | BULB (62/62W) | |
| 00D. | 424697 | [1] | STAY | |
| 00E. | 424698 | [2] | WASHER | |
| 00F. | 424699 | [4] | SCREW | |
| 03. | 424130 | [2] | LAMP;FRONT | |
| 03A. | 424679 | [1] | LENS | |
| 03B. | 424678 | [1] | LENS | |
| 03C. | 424675 | [1] | BULB (25W) | |
| 03D. | 424654 | [1] | BULB (12W) | |
| 05. | 424071 | [2] | HORN | |
| 06. | 424107 | [2] | HARNESS;WIRE | |
| 08. | 947642 | [2] | BOLT | |
| 09. | 947325 | [2] | WASHER;PLANE | |
| 10. | 947856 | [2] | NUT | |
| 11. | 947617 | [1] | BOLT | |
| 12. | 947323 | [1] | WASHER;PLANE | |
| 13. | 606020 | [1] | WASHER;SPRING | |
