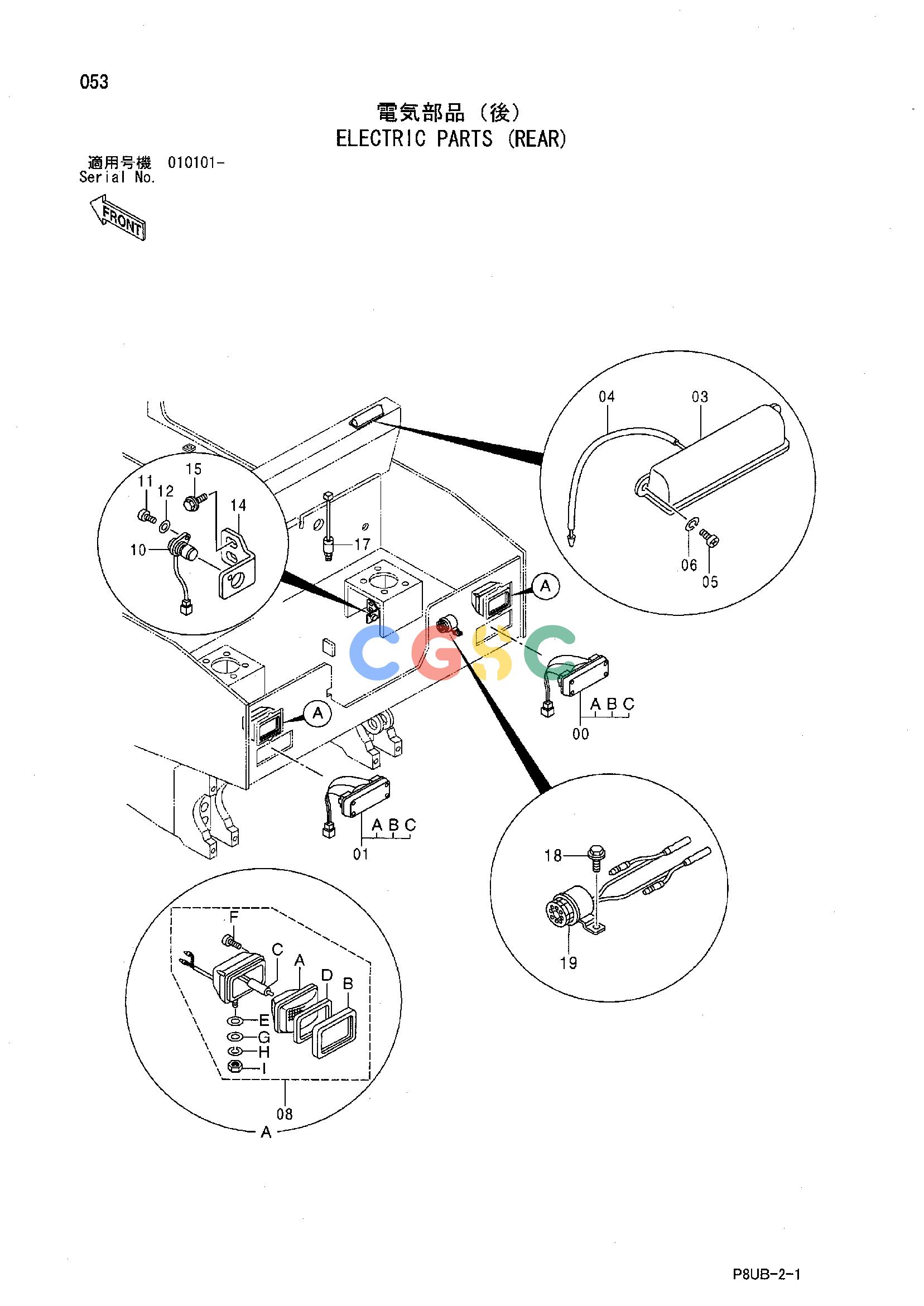

日立零件查询（CP210）ELECTRIC PARTS (REAR) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
972 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 424288 | [1] | LAMP;REAR | |
| 00A. | 424702 | [1] | BULB (25W) | |
| 00B. | 424700 | [1] | BULB (25/10W) | |
| 00C. | 424654 | [1] | BULB (12W) | |
| 01. | 424289 | [1] | LAMP;REAR | |
| 01A. | 424702 | [1] | BULB (25W) | |
| 01B. | 424700 | [1] | BULB (25/10W) | |
| 01C. | 424654 | [1] | BULB (12W) | |
| 03. | 439711 | [1] | LAMP | |
| 04. | 424419 | [1] | TUBE | |
| 05. | 439859 | [2] | SCREW | |
| 06. | 947855 | [2] | WASHER;SPRING | |
| 08. | 424712 | [2] | LAMP;HEAD ASS'Y | (for assembly of machine) |
| 08. | 424147 | [2] | LAMP;HEAD ASS'Y | (for transportation) |
| 08A. | 424713 | [1] | LENS;UNIT | |
| 08B. | 424714 | [1] | FRAME | |
| 08C. | 424692 | [1] | BULB | |
| 08D. | 424715 | [1] | GASKET | |
| 08E. | 424708 | [1] | WASHER | |
| 08F. | 424709 | [4] | SCREW | |
| 08G. | 947326 | [1] | WASHER;PLANE | |
| 08H. | 947889 | [1] | WASHER;SPRING | |
| 08I. | 424746 | [1] | NUT | |
| 10. | 424119 | [1] | SENSOR;REVOL. | |
| 11. | 424206 | [1] | BOLT;SOCKET | |
| 12. | 947322 | [1] | WASHER;PLANE | |
| 14. | 426277 | [1] | BRACKET | |
| 15. | 500028 | [2] | BOLT;SEMS | |
| 17. | 424141 | [1] | SWITCH;PRES. | |
| 18. | 947619 | [1] | BOLT;SEMS | |
| 19. | 424159 | [1] | ALARM | |
