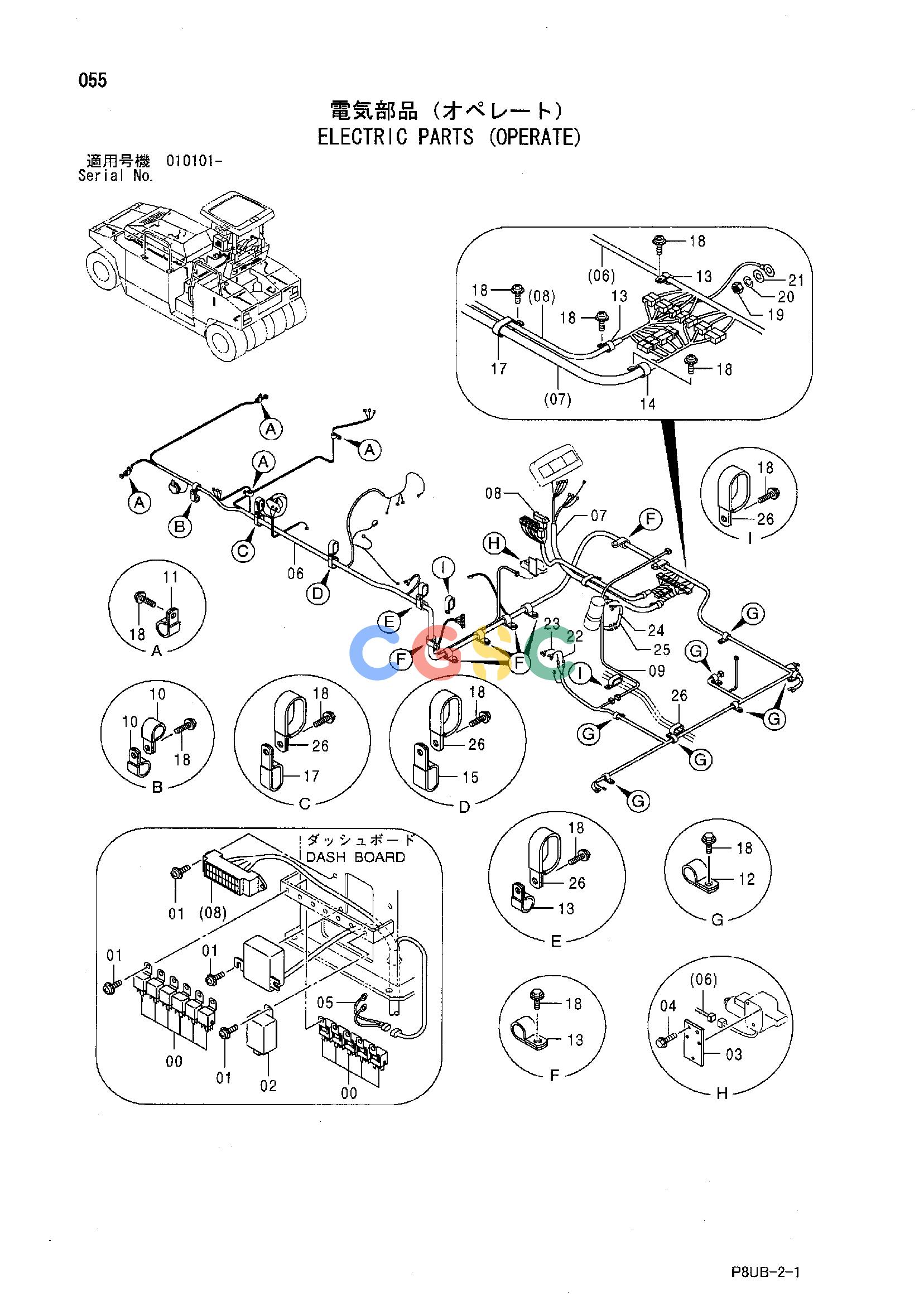

日立零件查询（CP210）ELECTRIC PARTS (OPERATE) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
1013 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425043 | [11] | RELAY | |
| 01. | 947823 | [11] | SCREW;SEMS | |
| 02. | 425042 | [1] | FLASHER | |
| 03. | 426281 | [1] | PLATE | |
| 04. | 500043 | [2] | BOLT;SEMS | |
| 05. | 425006 | [1] | HARNESS;WIRE | |
| 06. | 426229 | [1] | HARNESS;WIRE | |
| 07. | 426230 | [1] | HARNESS;WIRE | |
| 08. | 426231 | [1] | HARNESS;WIRE | |
| 09. | 426280 | [1] | HARNESS;WIRE | |
| 10. | 424657 | [2] | CLIP | |
| 11. | 424943 | [4] | CLIP | |
| 12. | 424063 | [7] | CLIP | |
| 13. | 424658 | [9] | CLIP | |
| 14. | 424064 | [1] | CLIP | |
| 15. | 424945 | [1] | CLIP | |
| 17. | 426212 | [1] | CLIP | |
| 18. | 500048 | [27] | BOLT;SEMS | |
| 19. | 947855 | [1] | NUT | |
| 20. | 947887 | [1] | WASHER;SPRING | |
| 21. | 947324 | [1] | WASHER;PLANE | |
| 22. | 426289 | [1] | HARNESS;WIRE | |
| 23. | 426290 | [1] | HARNESS;WIRE | |
| 24. | 426291 | [1] | HARNESS;WIRE | |
| 25. | 426292 | [1] | HARNESS;WIRE | |
| 26. | 424069 | [7] | CLIP | |
