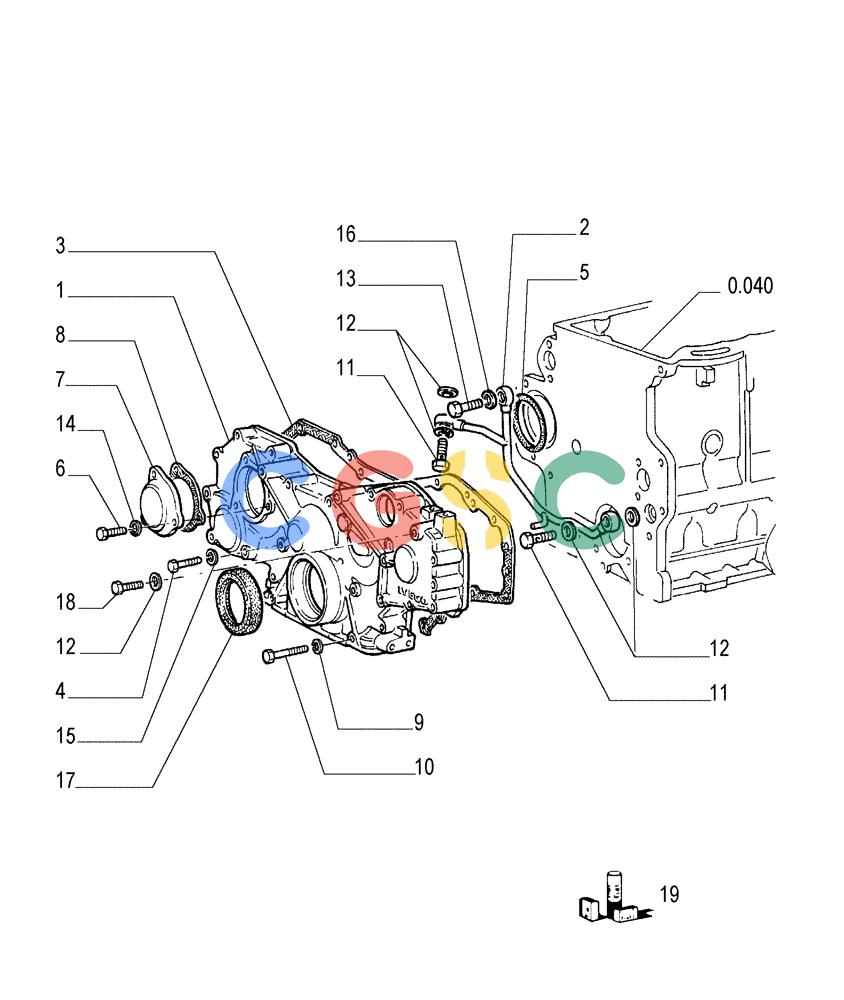

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.043[01]) - CRANKCASE COVERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
107 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 99449421 | [1] | BOX | LEC |
| 2. | 4851832 | [1] | RIGID TUBE | BRE |
| 3. | 4852756 | [1] | GASKET | BRE |
| 4. | 16044424 | [9] | BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8 | LEC |
| 5. | 14461481 | [1] | O-RING,-156, Cl 7, 4.237" ID x .103" Thk | JES |
| 6. | 16043424 | [3] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd | TTF |
| 7. | 4851837 | [1] | COVER | BRE- FRONT |
| 8. | 98411986 | [1] | GASKET,0.8mm Thk | TOR |
| 9. | 11193874 | [12] | BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 | TTF |
| 10. | 16044821 | [12] | SCREW,Hex, M8 x 80mm, Cl 8.8 | TTF Superseded by part number: 43133 |
| 11. | 99443063 | [2] | SWIVEL CONNECTION | LEC |
| 12. | 98474305 | [6] | SEALING WASHER | TOR10 x 17 mm |
| 14. | 4760498 | [9] | LOCK WASHER | TOR8X14X1,3 |
| 15. | 12638501 | [3] | WASHER,8.15mm ID x 15mm OD x 1.5mm Thk | TOR Superseded by part number: 17094814 |
| 16. | 11197774 | [1] | BELLEVILLE WASHER,Belleville, M6.4 | TTF |
| 17. | 98499173 | [1] | SEAL,113.6mm ID x 140mm OD | BRE |
| 18. | 4851834 | [2] | SCREW | BRE10X14 |
| 19. | 1940149 | [1] | ENGINE TOP GASKETS KIT | LEC |
| 19. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
| 13. | 378056 | [1] | BOLT,Hex, M6 x 10mm, Cl 8.8 | NH |
