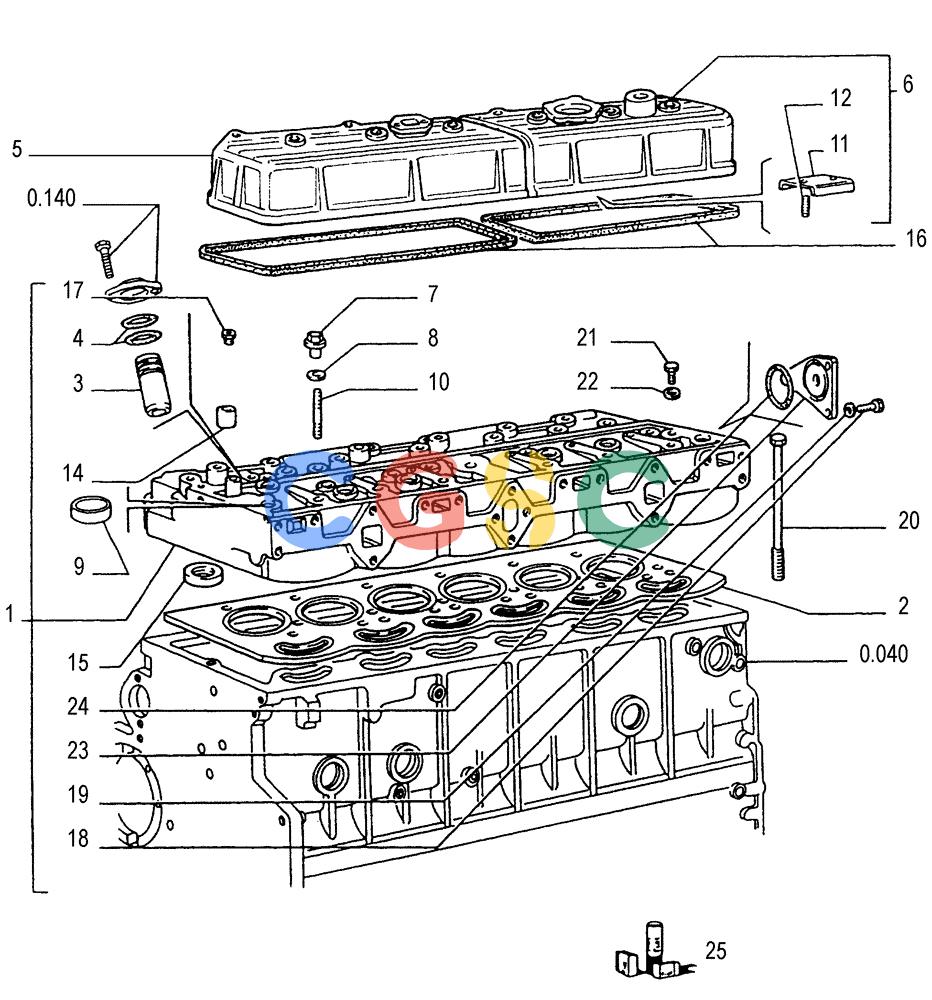

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.060[01]) - CYLINDER HEAD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1000 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 99452332 | [1] | CYLINDER HEAD | LEC- ASSY Superseded by part number: 98443489 |
| 2. | 98497505 | [1] | CYLINDER HEAD GASKET | BRE Superseded by part number: 98435149 |
| 3. | 4857426 | [6] | CASE | BRE |
| 4. | 14453981 | [12] | O-RING,0.989" ID x 0.07" Width | TTF |
| 5. | 99444868 | [1] | COVER | BRE- FRONT |
| 6. | 98444877 | [1] | COVER | LEC- REAR ASSY Superseded by part number: 99444877 |
| 7. | 98418750 | [6] | NUT | TOR |
| 8. | 98418749 | [6] | SEALING WASHER | TOR |
| 9. | 14282470 | [19] | PLUG,M28, Tapered, Stainless | TOR Superseded by part number: 16990870 |
| 9. | 16990670 | [1] | PLUG,Lock, 22mm Dia | BRE22 |
| 10. | 98417097 | [6] | STUD | BRE |
| 11. | 98466591 | [1] | DEFLECTOR | LEC |
| 12. | 17849670 | [5] | THREADED INSERT | BRE Superseded by part number: 2853783 |
| 13. | 14459880 | [1] | O-RING,56.82mm ID x 2.62" Width | BAS Superseded by part number: 14459881 |
| 14. | 4861817 | [6] | OVERSIZE INLET VALVE | BRE+0,40 INTAKE VALVE |
| 14. | 4861816 | [6] | INTAKE VALVE GUIDE | BRE+0,0 INTAKE VALVE |
| 14. | 4861813 | [6] | OVERSIZE EXHAUST VALVE | BRE+0,20 INTAKE VALVE |
| 14. | 4861812 | [6] | OVERSIZE EXHAUST VALVE | BRE+0,40 INTAKE VALVE |
| 14. | 4861811 | [6] | EXHAUST VALVE GUIDE | BRE+0,0 INTAKE VALVE |
| 14. | 4861818 | [6] | OVERSIZE INLET VALVE | BRE+0,20 INTAKE VALVE |
| 15. | 98435185 | [6] | VALVE SEAT | BRE+0,05 INTAKE VALVE |
| 15. | 98435186 | [6] | VALVE SEAT | BRE+0,05 INTAKE VALVE Superseded by part number: 1908355 |
| 15. | 98419668 | [6] | VALVE SEAT | LEC+0,0 INTAKE VALVE |
| 15. | 98419669 | [6] | VALVE SEAT | LEC+0.05 INTAKE VALVE |
| 15. | 98419671 | [6] | VALVE SEAT | LEC+0.20 INTAKE VALVE |
| 15. | 98435184 | [6] | VALVE SEAT | BRE+0,00 INTAKE VALVE Superseded by part number: 1908354 |
| 16. | 98449318 | [2] | GASKET | BRE |
| 17. | 14326101 | [2] | PLUG | BAS8X1,25 |
| 17. | 14326001 | [2] | PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8 | JES10X1,25 |
| 18. | 16043424 | [3] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd | TTF |
| 19. | 11193874 | [3] | BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 | TTF |
| 20. | 98415216 | [14] | SCREW | BRE16X1,25X225 |
| 20. | 4851870 | [12] | SCREW | BRE16X1,5X156 |
| 21. | 10300714 | [1] | PLUG,M16 x 1.5 x 14 | TTF |
| 22. | 4858609 | [1] | O-RING | TTF16X22X1,5 |
| 23. | 98474666 | [1] | COVER | BRE |
| 25. | 1940149 | [1] | ENGINE TOP GASKETS KIT | LEC |
| 25. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
