纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.071[01]) - INTAKE MANIFOLD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
704 次

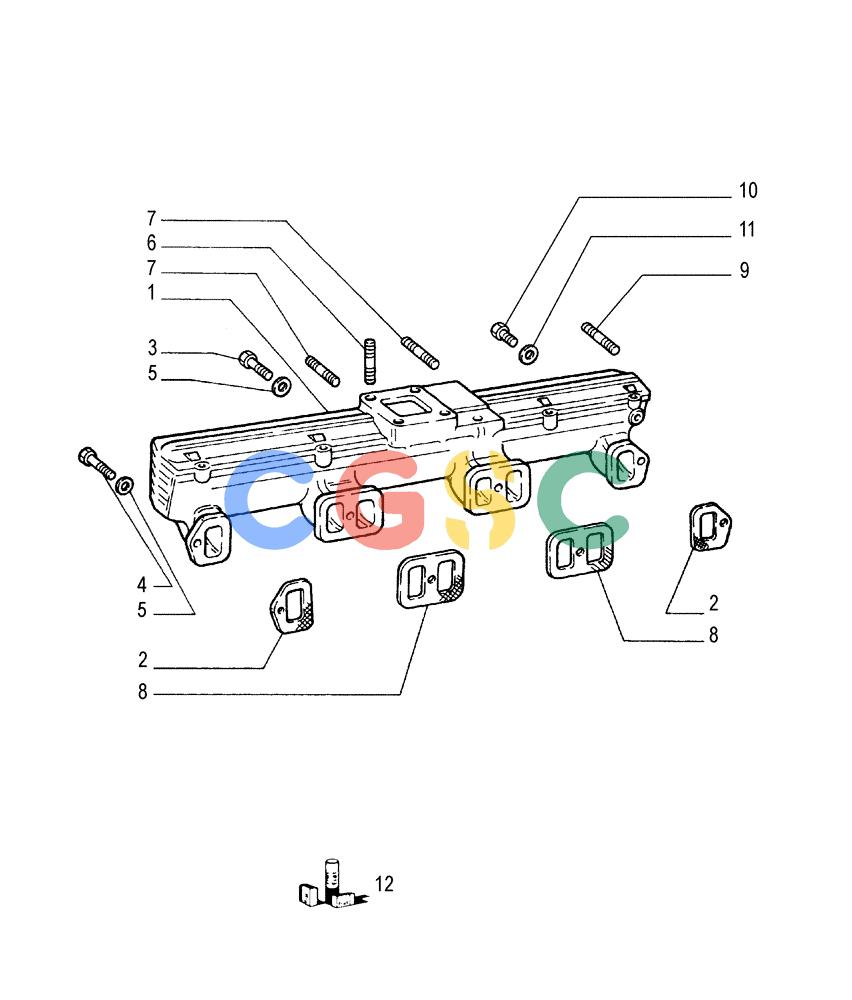

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 99450151 | [1] | INLET MANIFOLD | LEC |
| 2. | 98480270 | [2] | GASKET | LEC |
| 3. | 9602206 | [2] | SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8 | BHB |
| 4. | 11343724 | [8] | BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8 | TTF |
| 5. | 11190574 | [10] | BELLEVILLE WASHER,Belleville, M10.5 | TTF |
| 6. | 13517124 | [4] | STUD | JES |
| 7. | 13449724 | [2] | STUD | BAS10X1,25X30 Superseded by part number: 13449730 |
| 8. | 4851904 | [2] | GASKET | LEC |
| 9. | 13516624 | [2] | STUD | ZED8X16 Superseded by part number: 16729224 |
| 10. | 10300511 | [1] | PLUG,M12 x 1.5 x 12, Cl5.8 | JES |
| 11. | 2854292 | [1] | SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk | TOR Superseded by part number: 10298460 |
| 12. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
| 12. | 1940149 | [1] | ENGINE TOP GASKETS KIT | LEC |
