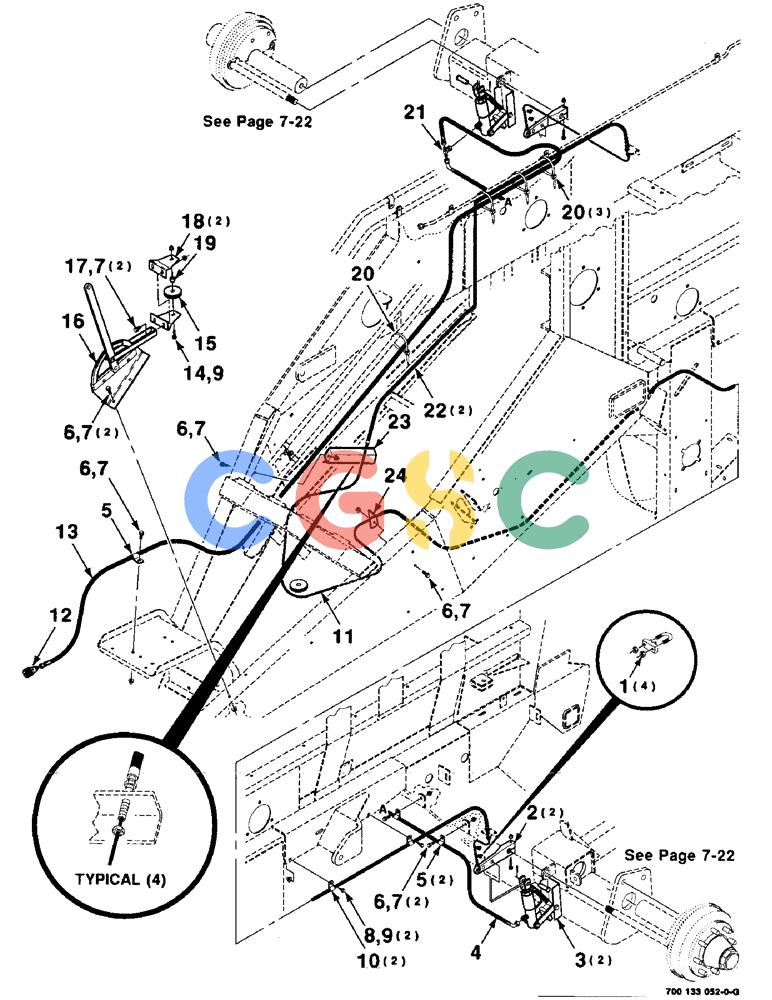

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (EUROPE) (1/95-12/00) (7-26) - BRAKE CONTROL ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
297 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700714994
|
[4] |
CLAMP
|
CAS
-HANDBRAKE CABLE
|
| 2. |
700714992
|
[2] |
LEVER
|
CAS
-BRAKE CAM
|
| 3. |
700714990
|
[2] |
ACTUATOR
|
CAS
RAM ASSEMBLY-BRAKE (Includes Pins)
|
| 4. |
700715005
|
[1] |
HOSE
|
CAS
ASSEMBLY
|
| 5. |
515-23190
|
[3] |
CLAMP,3/4", Insul, 3/8" Bolt
|
CAS
Line 3/4", Insul, 3/8" Bolt Superseded by part number: 86624005
|
| 6. |
121-226
|
[7] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 7. |
232-5316
|
[9] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 8. |
121-115
|
[2] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 9. |
232-5315
|
[3] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 10. |
700708090
|
[2] |
CLAMP
|
L
-LINE Superseded by part number: 86637978
|
| 11. |
700714993
|
[1] |
CABLE
|
CAS
WIRE ROPE-HANDBRAKE
|
| 12. |
700714996
|
[1] |
COUPLING
|
CAS
-TRAILER
|
| 13. |
700715004
|
[1] |
HOSE
|
CAS
ASSEMBLY
|
| 14. |
163-41
|
[1] |
SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"
|
CAS
5/16-18 X 1-1/4 HWHMS
|
| 15. |
700120328
|
[1] |
PULLEY
|
HFI
|
| 16. |
700714991
|
[1] |
LEVER
|
CAS
ASM-HANDBRAKE
|
| 17. |
409-7612
|
[2] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 18. |
700133077
|
[2] |
SUPPORT
|
HFI
-PULLEY
|
| 19. |
700119414
|
[1] |
SPACER
|
CAS
BUSHING-SPACER
|
| 20. |
L18337
|
[4] |
CABLE TIE,9.95"-12.1" lg
|
CAS
STRAP - tie, 15 inch, nylon Superseded by part number: 529070
|
| 21. |
700715006
|
[1] |
3 WAY CONNECTION
|
CAS
TEE-STRAIGHT, BSP
|
| 22. |
700715204
|
[2] |
FLEXIBLE SHEATH
|
CAS
COVER-HANDBRAKE CABLE Superseded by part number: 700714993
|
| 23. |
700133073
|
[1] |
SUPPORT
|
HFI
-ANGLE
|
| 24. |
700133076
|
[1] |
SUPPORT
|
HFI
-CABLE
|
