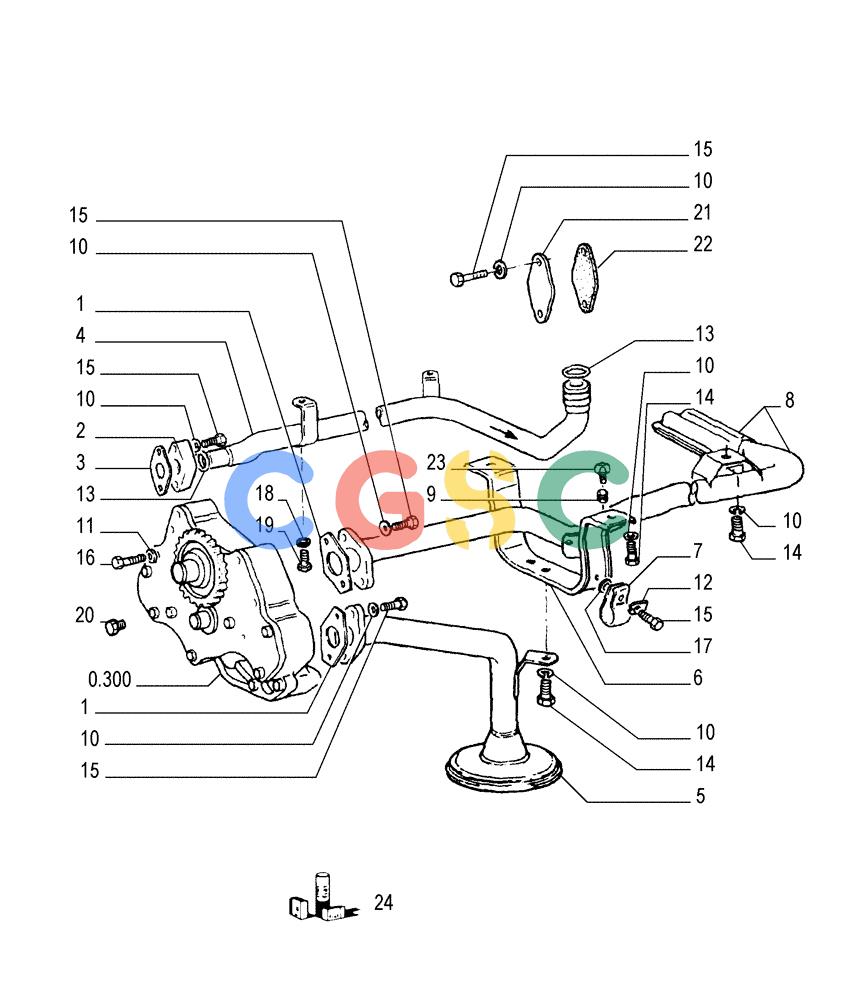

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.305[01]) - PIPING - ENGINE OIL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
158 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4863538 | [2] | GASKET | LEC Superseded by part number: |
| 2. | 4692711 | [1] | HYD CONNECTOR | MOD |
| 3. | 98412165 | [1] | GASKET,0.8mm Thk | TOR |
| 4. | 98417821 | [1] | RIGID TUBE | LEC- DELIVERY |
| 5. | 98417062 | [1] | RIGID TUBE | LEC- SUCTION |
| 6. | 4737249 | [1] | BRACKET | MOD |
| 7. | 4684881 | [1] | RETAINER | MOD Superseded by part number: 4760226 |
| 8. | 99456784 | [1] | RIGID TUBE | LEC |
| 9. | 14048221 | [1] | NUT,M8 x 1.25, Cl 10 | IMO Superseded by part number: 82034883 |
| 10. | 11193874 | [13] | BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 | TTF |
| 11. | 11194079 | [2] | BELLEVILLE WASHER,Belleville, M8.4 | TOR |
| 12. | 14198711 | [1] | LOCKING PLATE | MKT8 Superseded by part number: 14198700 |
| 13. | 14457581 | [2] | O-RING,0.799" ID x 0.103" Width | TTF |
| 15. | 16043624 | [6] | SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | TTF |
| 16. | 16044024 | [2] | BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8 | TTF |
| 17. | 13606011 | [1] | SPACER | MOD8,5X18 Superseded by part number: 17816414 |
| 18. | 12646704 | [1] | WASHER,8.15mm ID x 20mm OD x 2mm Thk | LEC |
| 19. | 16043924 | [1] | BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd | TTF |
| 20. | 11903171 | [1] | PLUG | MOD10X1,25 Superseded by part number: 11903111 |
| 21. | 99454061 | [1] | FLANGE | LEC |
| 22. | 98411814 | [1] | GASKET | BRE |
| 23. | 4736313 | [1] | SCREW | LEC |
| 24. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
| 14. | 16043324 | [7] | BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd | TTF |
