纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.313[01]) - HEAT EXCHANGER - TORQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
162 次

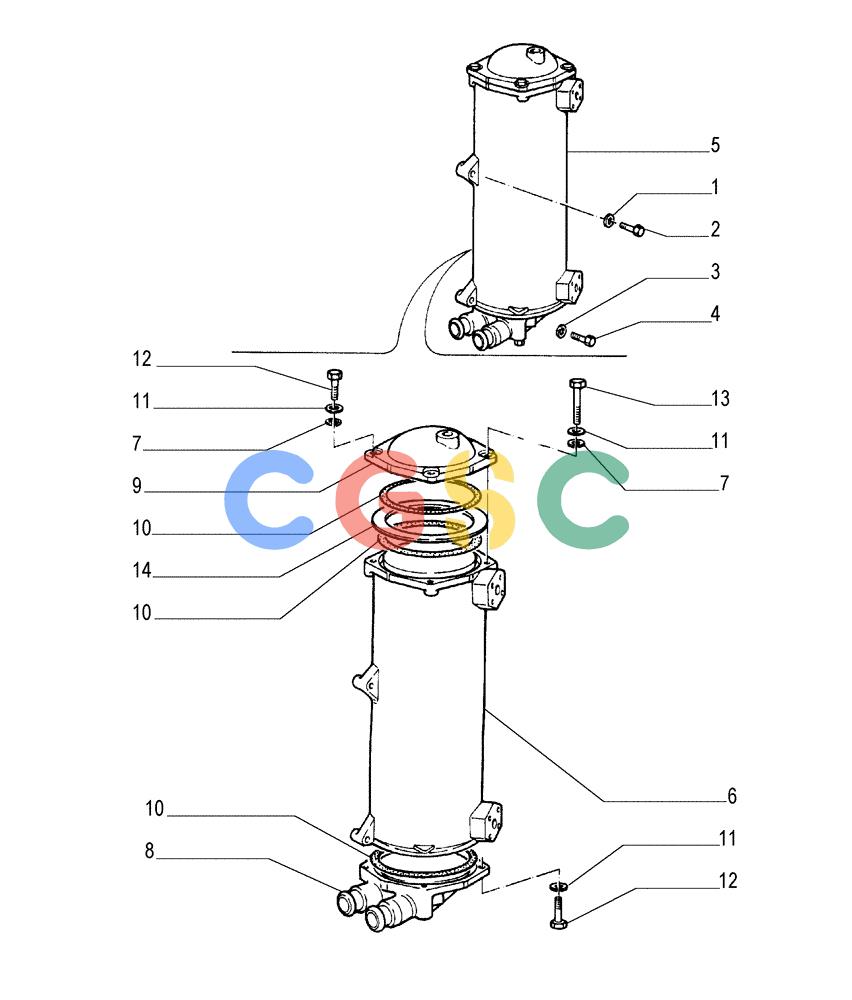

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 12638521 | [2] | WASHER,8.15mm ID x 15mm OD x 1.5mm Thk | IMO Superseded by part number: 17094814 |
| 2. | 16606734 | [2] | SCREW,M8 x 90mm | LEC8X90 |
| 3. | 17095111 | [2] | WASHER | LEC10X21 Superseded by part number: |
| 4. | 15971634 | [2] | BOLT,Hex, M10 x 1.25 x 90mm, Cl 10.9 | LEC |
| 5. | 99449272 | [1] | HEAT EXCHANGER | LEC- ASSY |
| 6. | 9968788 | [1] | HEAT EXCHANGER | LEC |
| 7. | 14496631 | [8] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 8. | 9968789 | [1] | COVER | LEC |
| 9. | 9968790 | [1] | COVER | LEC |
| 10. | 79108924 | [4] | GASKET | TOR134,5X3 Superseded by part number: 4776897 |
| 11. | 10571879 | [8] | LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk | TTF Superseded by part number: |
| 12. | 11106831 | [6] | SCREW,Hex, M10 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11106821 |
| 13. | 11107631 | [2] | SCREW,Hex, M10 x 70mm, Cl 10.9 | LEC Superseded by part number: 828-10070 |
| 14. | 79111189 | [1] | SPACER | LEC Superseded by part number: 4788381 |
