纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.320[01]) - WATER PUMP - ENGINE COOLING SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
729 次

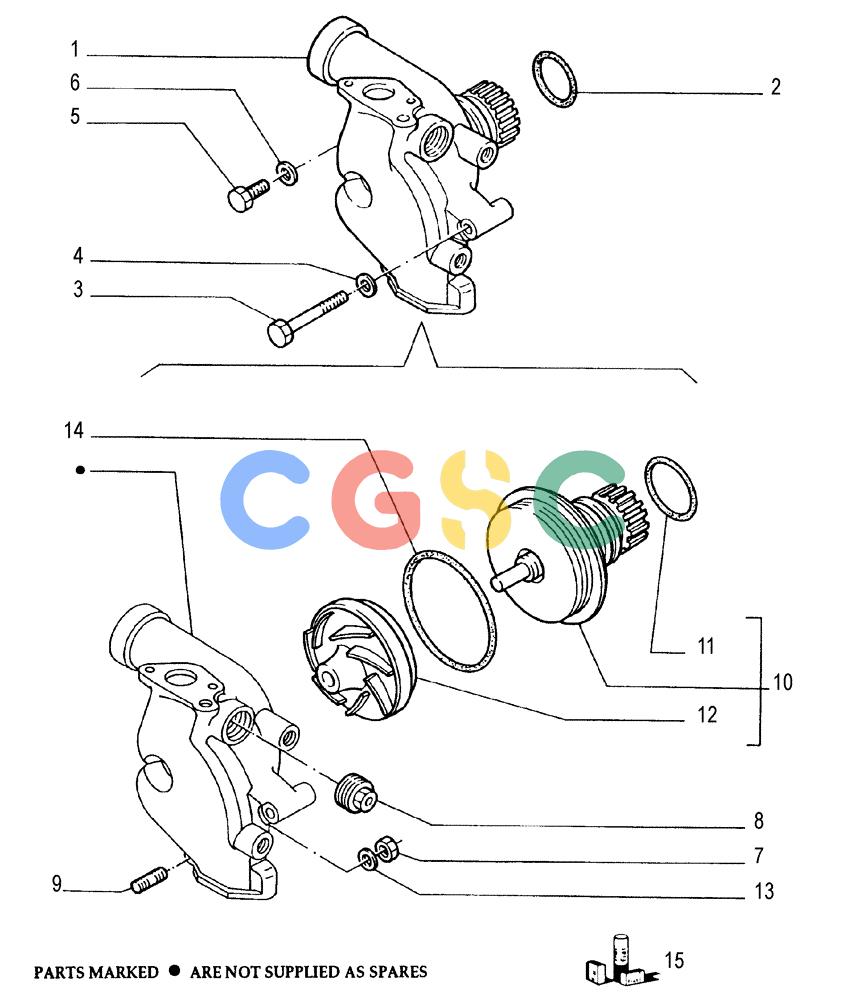

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 99446891 | [1] | WATER PUMP | LEC- ASSY Superseded by part number: 500373092 |
| 3. | 15972821 | [2] | SCREW,Hex, M10 x 1.25 x 150mm, Cl 8.8 | BAS10X150 Superseded by part number: 15972830 |
| 4. | 11190574 | [3] | BELLEVILLE WASHER,Belleville, M10.5 | TTF |
| 5. | 10300611 | [1] | PLUG,M14 x 1.5 x 14, Cl5.8 | BAS Superseded by part number: 16992315 |
| 6. | 4858608 | [1] | SEAL,14mm ID x 19.50mm OD x 1.50mm Thk | TTF14X20X1,5 Superseded by part number: 2852356 |
| 7. | 16100821 | [3] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 8. | 98479229 | [1] | PLUG | LEC |
| 9. | 13516821 | [3] | STUD | MKT8X12X20 Superseded by part number: 16729324 |
| 10. | 98446825 | [1] | KIT | BRE- ASSY Superseded by part number: 500373082 |
| 11. | 98463962 | [1] | GASKET | ZED Superseded by part number: 500350790 |
| 12. | 98439477 | [1] | IMPELLER | LEC |
| 13. | 11193874 | [3] | BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 | TTF |
| 14. | 14461480 | [1] | O-RING,4.237" ID x 0.103" Thk | TTF |
| 15. | 1940149 | [1] | ENGINE TOP GASKETS KIT | LEC |
| 15. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
| 2. | 14464681 | [1] | O-RING,56.74mm ID x 2.512" OD x 3.53mm | IMO |
| 3. | 15971624 | [1] | SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8 | TTF |
