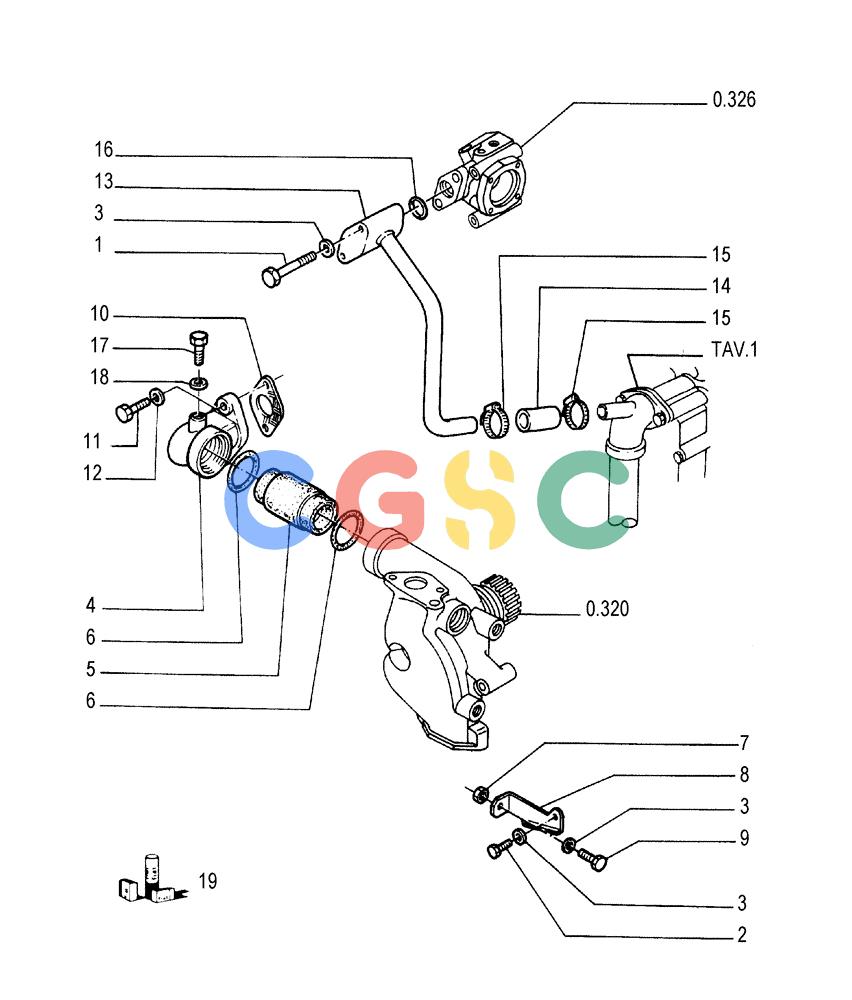

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.323[02]) - PIPING - ENGINE COOLING SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
514 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 16043424 | [3] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd | TTF |
| 3. | 11193874 | [6] | BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 | TTF |
| 4. | 4853482 | [1] | ELBOW | LEC |
| 5. | 4853483 | [1] | RIGID TUBE | LEC |
| 6. | 98465115 | [2] | GASKET | BRE Superseded by part number: 14464280 |
| 7. | 17816311 | [1] | SPACER | LEC Superseded by part number: |
| 8. | 99449680 | [1] | BRACKET | LEC |
| 9. | 16043924 | [1] | BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd | TTF |
| 10. | 4853484 | [1] | GASKET | BRE |
| 11. | 16043124 | [1] | SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd | TTF |
| 11. | 16204524 | [2] | BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8 | TTF |
| 12. | 12642521 | [3] | WASHER,10.2mm ID x 22mm OD x 2mm Thk | LEC |
| 13. | 99480868 | [1] | RIGID TUBE | LEC |
| 14. | 99444728 | [1] | HOSE | LEC |
| 15. | 13000490 | [2] | HOSE CLAMP,20mm - 32mm, Worm Gear | TTF20X32 |
| 16. | 17282780 | [1] | GASKET | LEC Superseded by part number: 14458281 |
| 17. | 10300714 | [2] | PLUG,M16 x 1.5 x 14 | TTF |
| 18. | 4858609 | [2] | O-RING | TTF16X22X1,5 |
| 19. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
| 1. | 16044224 | [2] | BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8 | TTF |
