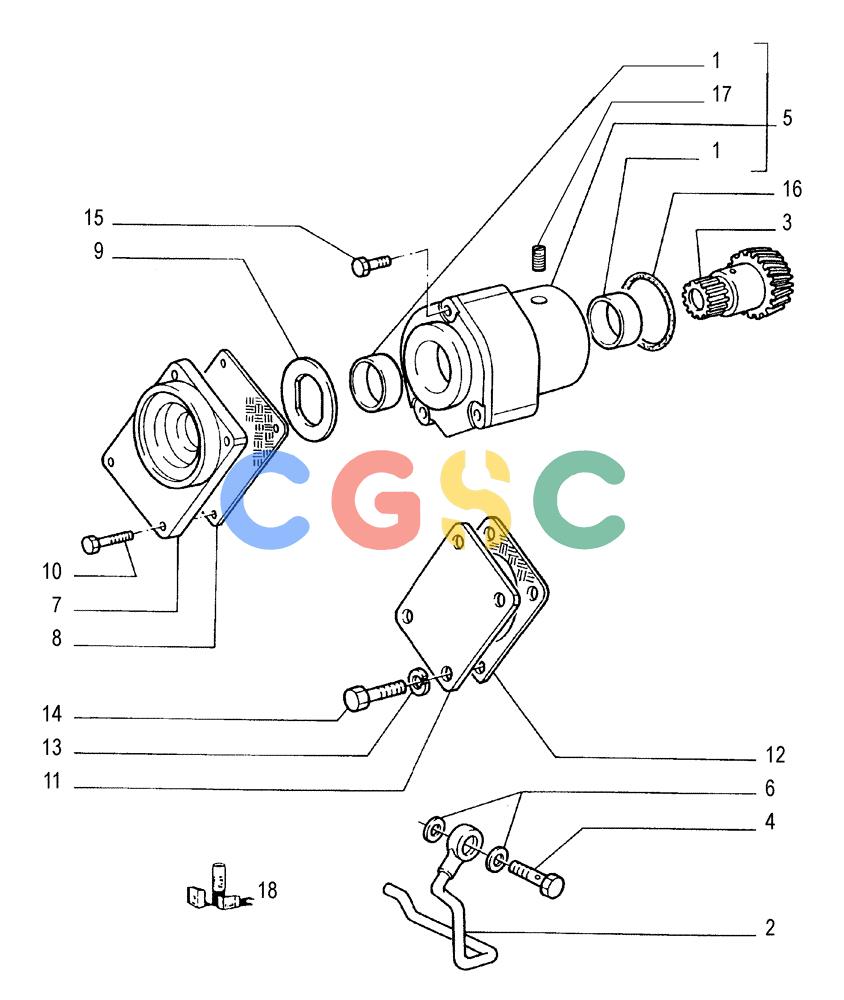

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.350[01]) - POWER TAKE-OFF (ENGINE) - DRIVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
118 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4853904 | [2] | BUSHING | LEC |
| 2. | 4853453 | [1] | RIGID TUBE | BRE Superseded by part number: 4853452 |
| 3. | 98446827 | [1] | SHAFT | BRE |
| 4. | 11903817 | [1] | BANJO BOLT | JES10X1,25X19 |
| 5. | 4853897 | [1] | SUPPORT | BRE- ASSY |
| 6. | 4858606 | [2] | SEAL,10.2mm ID x 16mm OD x 1mm Thk | TTF10X14X1 |
| 7. | 4853927 | [1] | SUPPORT | BRE |
| 8. | 4853928 | [1] | GASKET | BRE |
| 9. | 4853901 | [2] | THRUST WASHER | BRE |
| 10. | 14306524 | [4] | HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd | JES8X30 |
| 11. | 564530 | [1] | COVER | TOR |
| 12. | 500378759 | [1] | SEAL | TOR |
| 13. | 17094714 | [4] | LOCK WASHER,M6 x 13 | BHB Superseded by part number: 17094724 |
| 14. | 10902424 | [4] | SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd | TTF Superseded by part number: |
| 15. | 16321824 | [3] | SCREW,M8 x 65mm | LEC |
| 16. | 14460581 | [1] | O-RING,67.94mm ID x 2.62" Width | BAS Superseded by part number: 17285081 |
| 17. | 16987501 | [1] | PLUG | MOD |
| 18. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
