纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.360[01]) - STARTER MOTOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
522 次

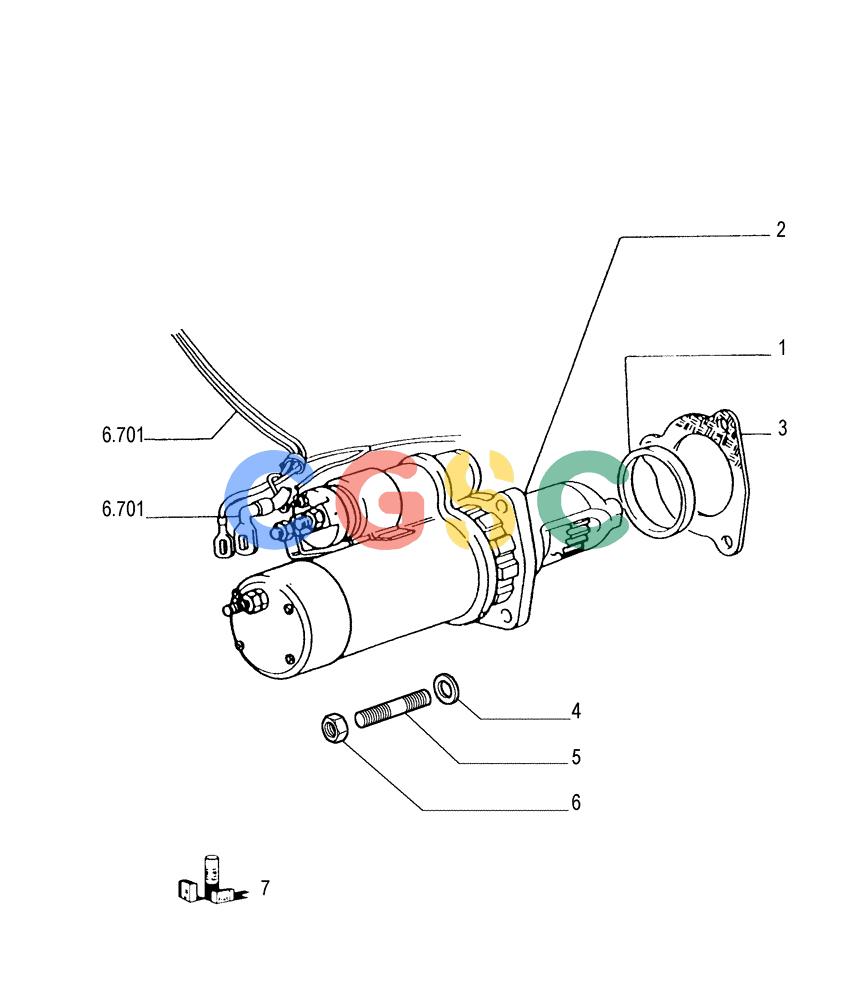

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4749164 | [1] | RING | LEC |
| 2. | 4816170 | [1] | STARTER MOTOR | LEC- ASSY SEE TAV.2 |
| 3. | 98418537 | [1] | GASKET | LEC |
| 4. | 11194174 | [3] | BELLEVILLE WASHER,Conical Spring, 15.00mm ID x 27.00mm OD x 3.00mm, 3.60mm, DAC | TTF |
| 5. | 11797521 | [3] | STUD | TTF14X1,5X20X40 |
| 7. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
| 6. | 12164021 | [3] | NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND | TTF Superseded by part number: |
