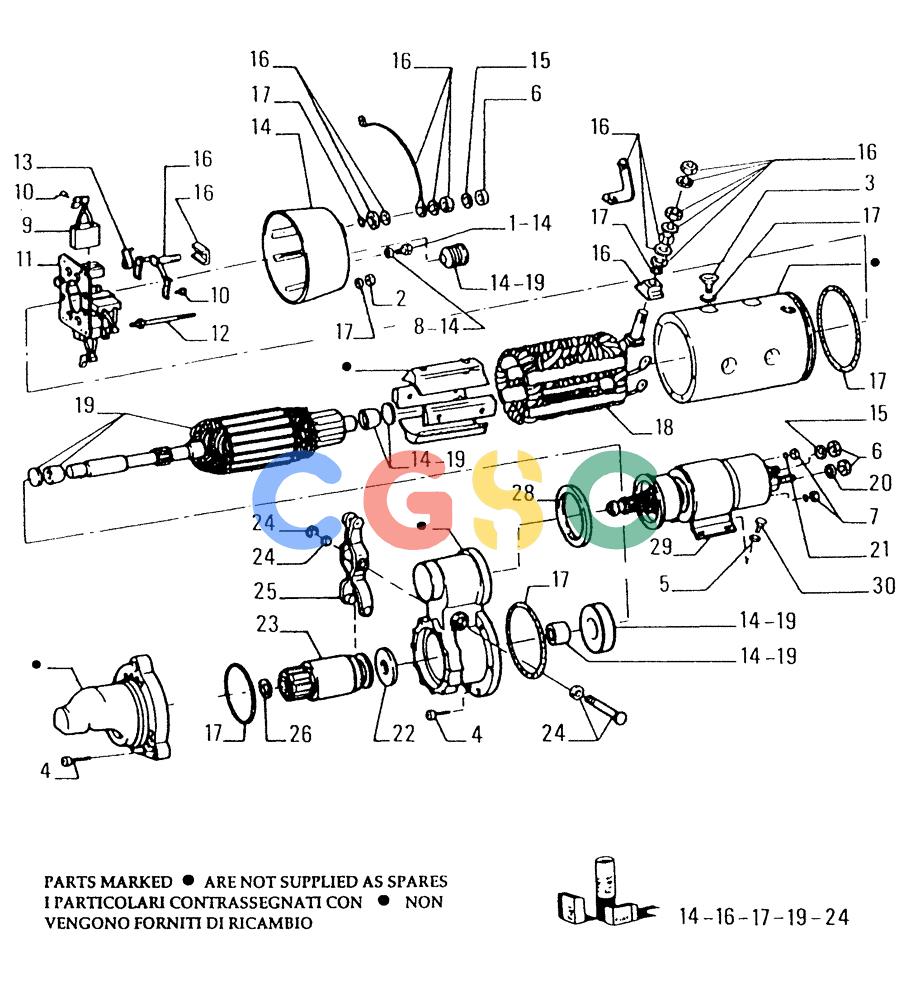

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.360[02]) - STARTER MOTOR - COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
932 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79032312 | [1] | PLUG | LEC Superseded by part number: 772334 |
| 2. | 12574121 | [4] | LOCK NUT | MKT5X0,8X6 Superseded by part number: 12574111 |
| 3. | 13305221 | [8] | SCREW,Pozidriv Flat Hd, M10 x 18mm, Cl 8.8 | LEC |
| 4. | 14305431 | [12] | HEX SOC SCREW,M6 x 25mm, Cl 10.9, Full Thd | LEC6X1X25 |
| 5. | 14496404 | [4] | WASHER,M6 x 12 x 2 Thk | TTF Superseded by part number: 17094724 |
| 6. | 16101521 | [4] | NUT,M12 x 1.25, Cl 10 | ZED Superseded by part number: |
| 7. | 15896211 | [2] | NUT,M6, Cl 8 | JES Superseded by part number: 17037821 |
| 8. | 79038381 | [1] | SEAL | LEC |
| 9. | 79058480 | [1] | SET OF PARTS | LECBRUSHES |
| 10. | 79058481 | [4] | SCREW | LEC |
| 11. | 79058482 | [1] | BRUSH HOLDER | LEC |
| 12. | 79058483 | [4] | TIE-ROD | LEC |
| 13. | 79058484 | [4] | SPRING | LEC |
| 14. | 79058485 | [1] | KIT | LEC |
| 15. | 79058486 | [2] | WASHER | LEC |
| 16. | 79058487 | [1] | KIT | LEC |
| 17. | 79058488 | [1] | KIT | LEC |
| 18. | 79058489 | [1] | COIL | LEC |
| 19. | 79058490 | [1] | ARMATURE | LEC |
| 20. | 10571574 | [2] | LOCK WASHER | LEC6,1X1,6 Superseded by part number: 17798174 |
| 21. | 79058503 | [1] | LOCK WASHER | MOD |
| 22. | 79058493 | [1] | WASHER | LEC |
| 23. | 79063957 | [1] | DRIVEN SPROCKET | LEC Superseded by part number: 783519 |
| 24. | 79058495 | [1] | YOKE | LEC |
| 25. | 79058496 | [1] | YOKE | LEC |
| 26. | 79058497 | [1] | WASHER | LEC |
| 28. | 79058499 | [1] | RING | LEC |
| 29. | 79058500 | [1] | SOLENOID | LEC |
| 30. | 79058501 | [4] | SCREW | LEC |
