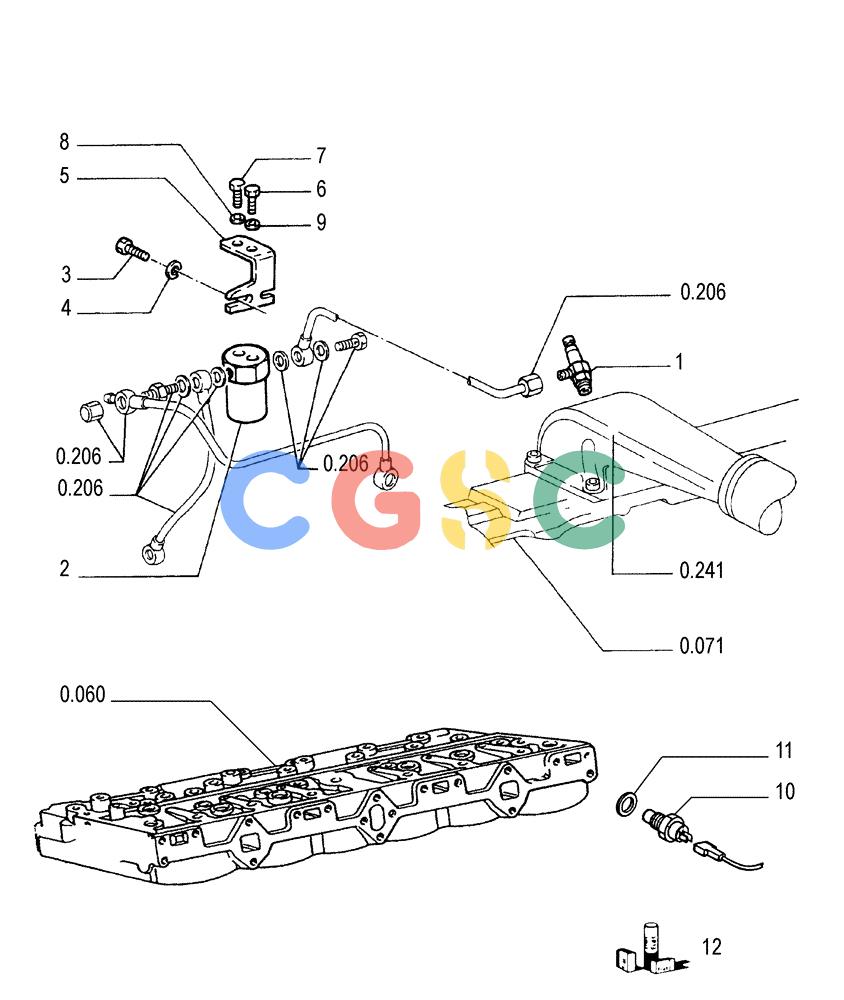

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (0.365[01]) - THERMOSTARTER AUXILIARY DEVICE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
481 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 99450394 | [1] | THERMOSTART | LEC |
| 2. | 98494898 | [1] | ELECTRO-VALVE | LEC24V-BERU |
| 4. | 11193874 | [2] | BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 | TTF |
| 5. | 98418835 | [1] | BRACKET | LEC |
| 7. | 10977524 | [1] | BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd | JES5X10 Superseded by part number: 16601924 |
| 8. | 12035670 | [1] | LOCK WASHER | TTF Superseded by part number: 86517328 |
| 9. | 12035471 | [1] | LOCK WASHER | PLO5,1X1 |
| 10. | 4857250 | [1] | SENDER UNIT | MOD |
| 11. | 4858608 | [1] | SEAL,14mm ID x 19.50mm OD x 1.50mm Thk | TTF14X20X1,5 Superseded by part number: 2852356 |
| 12. | 1940151 | [1] | ENGINE GASKET KIT | LEC |
| 12. | 1940149 | [1] | ENGINE TOP GASKETS KIT | LEC |
| 6. | 378056 | [1] | BOLT,Hex, M6 x 10mm, Cl 8.8 | NH |
| 3. | 16043224 | [2] | BOLT,Hex, M8 x 16mm, Cl 8.8 | NH |
