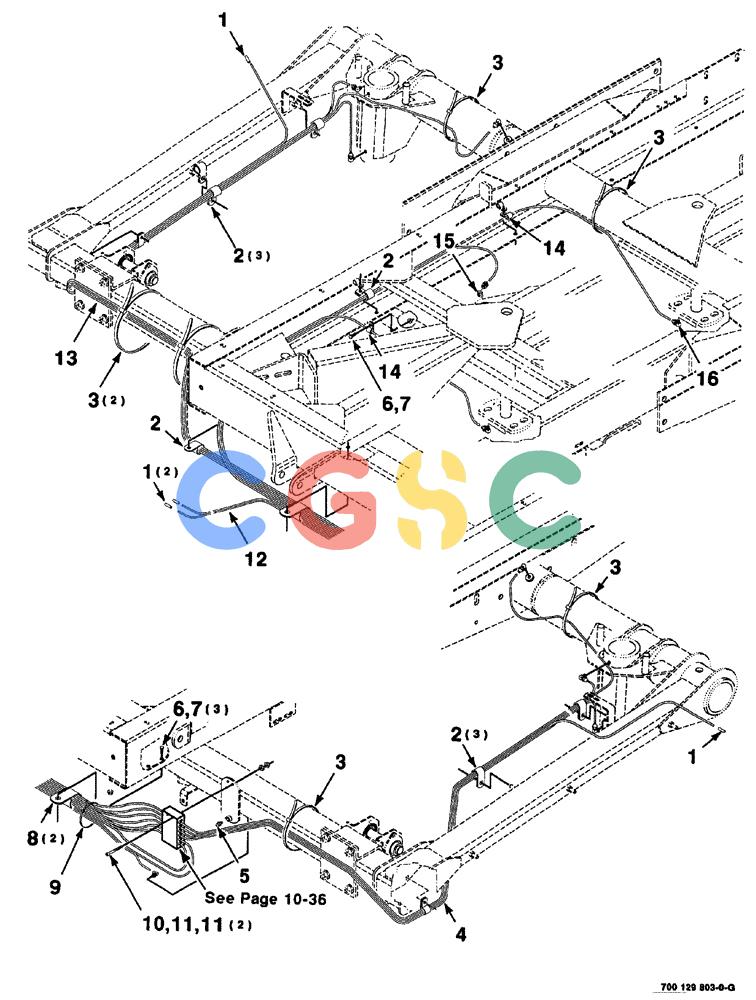

凯斯零件查询(8575) - CASE IH MID-SIZE RECTANGULAR BALER (NORTH AMERICA) (1/95-12/00) (10-030) - CENTRALIZED LUBE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
368 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700708342
|
[4] |
CAP
|
HFI
|
| 2. |
515-23190
|
[8] |
CLAMP,3/4", Insul, 3/8" Bolt
|
CAS
Line Superseded by part number: 86624005
|
| 3. |
7721798
|
[6] |
CABLE
|
CAS
TIE line
|
| 4. |
700129970
|
[1] |
HARNESS
|
CAS
LUBE, left
|
| 5. |
219-1
|
[1] |
LUBE NIPPLE,1/8" - 27 NPTF
|
CAS
Superseded by part number: 80710
|
| 6. |
413-616
|
[4] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 7. |
232-5316
|
[4] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 8. |
515-23254
|
[2] |
CLAMP,1", Insul, 3/8" Bolt
|
CAS
Line Superseded by part number: 9827902, 72187281
|
| 9. |
L18337
|
[1] |
CABLE TIE,9.95"-12.1" lg
|
CAS
CABLE STRAP TIE nylon Superseded by part number: 529070
|
| 10. |
7701444
|
[2] |
SCREW
|
CAS
#10-32 x 1-3/4 HSHCS SPL
|
| 11. |
225-14210
|
[4] |
NUT,#10-32
|
CAS
Superseded by part number: 87825, 72187047
|
| 12. |
700129969
|
[1] |
HARNESS
|
CAS
LUBE, front
|
| 13. |
700129971
|
[1] |
HARNESS
|
CAS
LUBE, right
|
| 14. |
515-2363
|
[2] |
CLAMP,M6.3, Insul, 3/8" Bolt
|
CAS
line Superseded by part number: 675162
|
| 15. |
219-81
|
[1] |
ELBOW,45 Degree, 1/8"-27
|
CAS
STEEL ELL, 45 Deg. Superseded by part number: 612715
|
| 16. |
700706682
|
[1] |
FRONT AXLE
|
CAS
ELBOW, male Superseded by part number: 30773V, 222-1845
|
