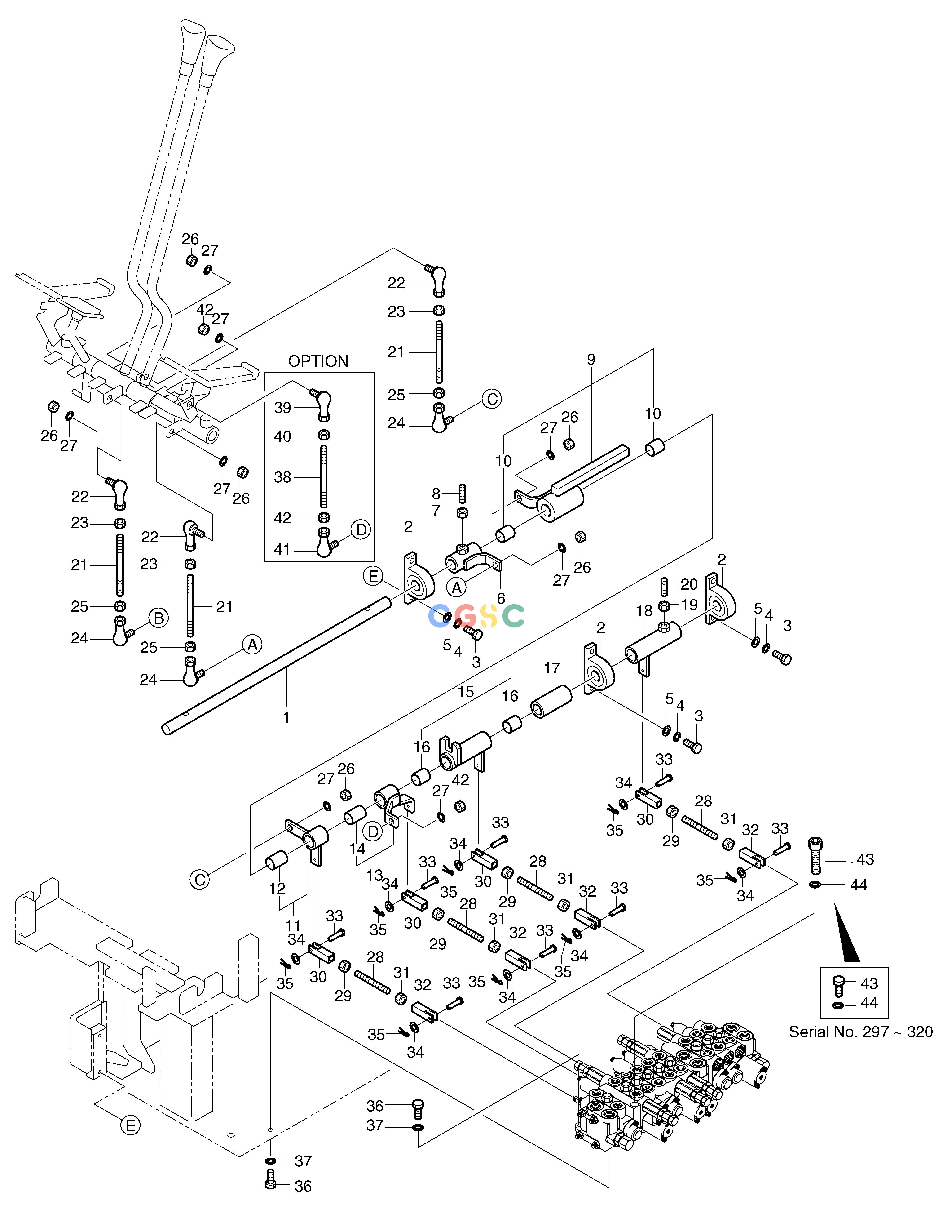

斗山零件查询CONTROL SYSTEM(4) SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
774 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2133-7043
|
[-] |
CONTROL LEVER
|
|
| 1. |
2112-1221
|
[1] |
SHAFT
|
2112-1221A
|
| 1. |
2112-1221A
|
[1] |
SHAFT
|
|
| 10. |
2110-1184D38
|
[2] |
BUSH 23/20-20L
|
|
| 11. |
2137-1182A
|
[1] |
LINK;DRIVE
|
|
| 11. |
2137-1199A
|
[1] |
LINK;DRIVE
|
|
| 12. |
2110-1184D40
|
[2] |
BUSH
|
|
| 13. |
2137-1183A
|
[1] |
LINK;PTO
|
137-00001
|
| 13. |
137-00001
|
[1] |
LINK;PTO
|
|
| 14. |
2110-1184D38
|
[2] |
BUSH 23/20-20L
|
|
| 15. |
2137-1184A
|
[1] |
LINK
|
|
| 15. |
2137-1200A
|
[1] |
LINK
|
|
| 16. |
2110-1184D38
|
[2] |
BUSH 23/20-20L
|
|
| 17. |
2114-1750A
|
[1] |
COLLAR
|
|
| 18. |
2137-1185A
|
[1] |
LINK
|
|
| 18. |
2137-1201A
|
[1] |
LINK
|
|
| 19. |
S4012633
|
[1] |
NUT
|
|
| 2. |
30640-60005
|
[3] |
UNIT;PILLOW
|
|
| 20. |
S3524901
|
[1] |
SCREW;SET
|
|
| 21. |
2136-1419
|
[3] |
ROD(E)
|
|
| 22. |
30621-61020
|
[3] |
BALL;LINK(L.H)
|
2138-9018
|
| 22. |
2138-9018
|
[3] |
BALL;LINK(L.H)
|
|
| 23. |
2121-1298
|
[3] |
NUT(L.H)
|
|
| 24. |
30621-61010
|
[3] |
BALL;LINK
|
2138-9017
|
| 24. |
2138-9017
|
[3] |
BALL;LINK
|
|
| 25. |
S4012633
|
[3] |
NUT
|
|
| 26. |
S4012633
|
[6] |
NUT
|
|
| 27. |
S5102603
|
[6] |
. WASHER
|
|
| 28. |
2136-1426
|
[4] |
ROD
|
|
| 28. |
2136-1448
|
[4] |
ROD
|
|
| 29. |
2121-1298
|
[4] |
NUT(L.H)
|
|
| 3. |
S0509053
|
[6] |
. BOLT
|
|
| 30. |
2138-1025
|
[4] |
END;ROD(L.H)
|
|
| 30. |
2138-1032
|
[4] |
END;ROD(L.H)
|
|
| 31. |
S4012633
|
[4] |
NUT
|
|
| 32. |
2138-1026
|
[4] |
END;ROD(R.H)
|
|
| 32. |
2138-1033
|
[4] |
END;ROD(L.H)
|
|
| 33. |
2123-2093
|
[8] |
PIN
|
|
| 34. |
S5000213
|
[8] |
. WASHER
|
|
| 35. |
S5735051
|
[8] |
PIN;SPLIT
|
|
| 36. |
S0509253
|
[2] |
BOLT M8X1.25X30
|
|
| 36. |
S0509053
|
[4] |
. BOLT
|
|
| 36. |
S0509253
|
[4] |
BOLT M8X1.25X30
|
|
| 37. |
S5102503
|
[4] |
. WASHER
|
|
| 37. |
S5102503
|
[2] |
. WASHER
|
|
| 38. |
2136-1419
|
[1] |
ROD(E)
|
|
| 39. |
30621-61020
|
[1] |
BALL;LINK(L.H)
|
2138-9018
|
| 39. |
2138-9018
|
[1] |
BALL;LINK(L.H)
|
|
| 4. |
S5102503
|
[6] |
. WASHER
|
|
| 40. |
2121-1298
|
[1] |
NUT(L.H)
|
|
| 41. |
30621-61010
|
[1] |
BALL;LINK
|
2138-9017
|
| 41. |
2138-9017
|
[1] |
BALL;LINK
|
|
| 42. |
S4012633
|
[3] |
NUT
|
|
| 43. |
S0559653
|
[1] |
BOLT M10X1.5X105
|
|
| 43. |
S2213461
|
[1] |
BOLT;SOCKET M10X1.5X90
|
|
| 44. |
S5102603
|
[1] |
. WASHER
|
|
| 44. |
S5110601
|
[1] |
WASHER;SPRING M10
|
|
| 5. |
S5010513
|
[6] |
WASHER
|
|
| 6. |
2137-1180A
|
[1] |
LINK;DRIVE
|
|
| 7. |
S4012633
|
[1] |
NUT
|
|
| 8. |
S3524901
|
[1] |
SCREW;SET
|
|
| 9. |
2137-1181A
|
[1] |
LINK
|
|
| 9. |
2137-1181B
|
[1] |
LINK
|
|
