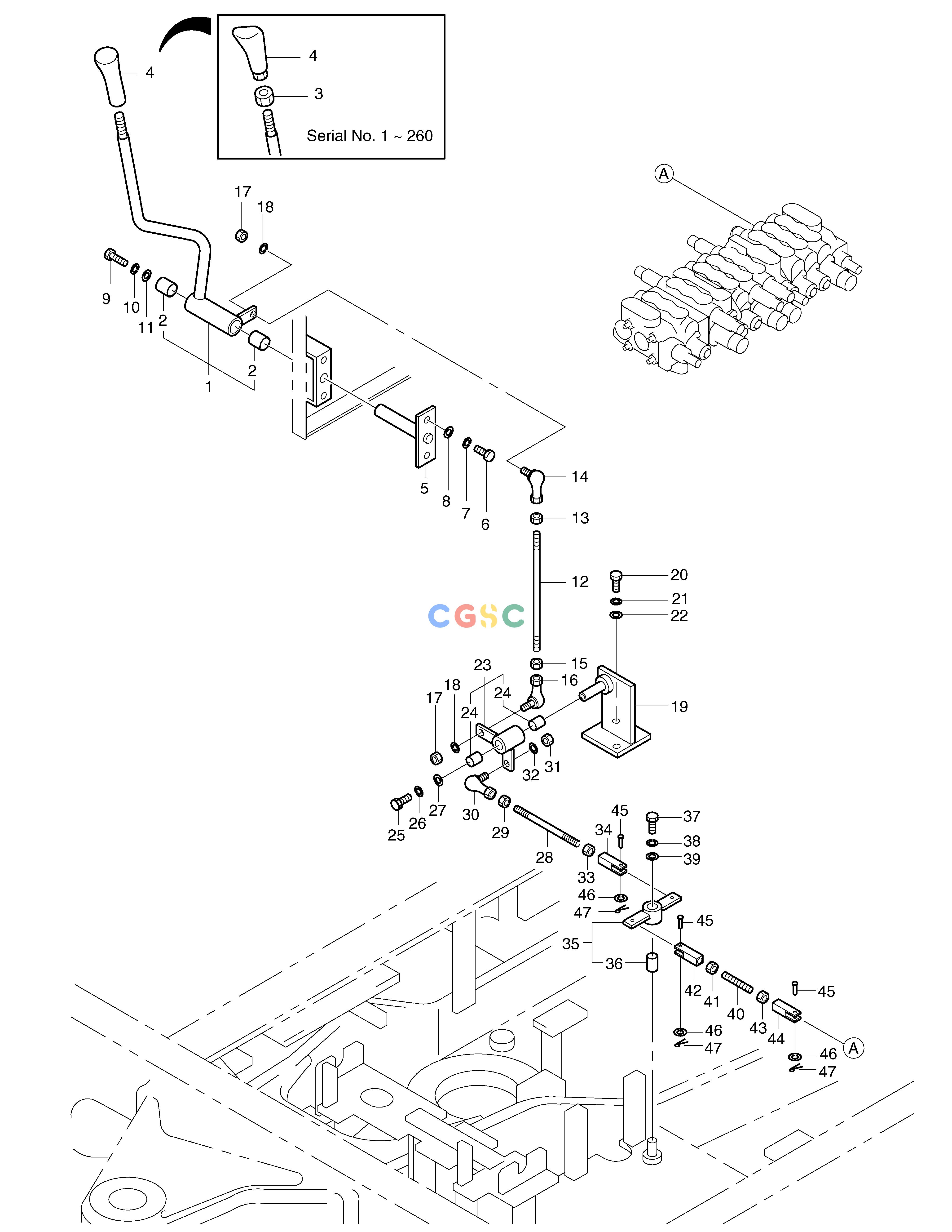

斗山零件查询CONTROL SYSTEM(5) SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
880 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2133-7043
|
[-] |
CONTROL LEVER
|
|
| 1. |
2133-1981
|
[1] |
LEVER;DOZER
|
2133-1981A
|
| 1. |
2133-1981A
|
[1] |
LEVER;DOZER
|
|
| 1. |
2133-1981B
|
[1] |
LEVER;DOZER
|
|
| 10. |
S5102603
|
[1] |
. WASHER
|
|
| 11. |
2114-1058D10
|
[1] |
WASHER
|
|
| 12. |
2136-1422
|
[1] |
ROD(1)
|
|
| 13. |
2121-1298
|
[1] |
NUT(L.H)
|
|
| 14. |
30621-61020
|
[1] |
BALL;LINK(L.H)
|
2138-9018
|
| 14. |
2138-9018
|
[1] |
BALL;LINK(L.H)
|
|
| 15. |
S4012633
|
[1] |
NUT
|
|
| 16. |
30621-61010
|
[1] |
BALL;LINK
|
2138-9017
|
| 16. |
2138-9017
|
[1] |
BALL;LINK
|
|
| 17. |
S4012633
|
[2] |
NUT
|
|
| 18. |
S5102603
|
[2] |
. WASHER
|
|
| 19. |
2197-1215A
|
[1] |
BRACKET;LINK
|
|
| 2. |
2110-1184D38
|
[2] |
BUSH 23/20-20L
|
|
| 20. |
S0512053
|
[2] |
BOLT
|
|
| 21. |
S5102603
|
[2] |
. WASHER
|
|
| 22. |
S5010613
|
[2] |
WASHER
|
|
| 23. |
2137-1186A
|
[1] |
LINK
|
|
| 24. |
2110-1184D23
|
[2] |
BUSH
|
|
| 25. |
S0508853
|
[1] |
. BOLT
|
|
| 25. |
S0509053
|
[1] |
. BOLT
|
|
| 26. |
S5102503
|
[1] |
. WASHER
|
|
| 27. |
2114-1058D29
|
[1] |
WASHER
|
|
| 28. |
2136-1423
|
[1] |
ROD(B)
|
|
| 29. |
2121-1298
|
[1] |
NUT(L.H)
|
|
| 3. |
S4032833
|
[1] |
NUT
|
|
| 30. |
30621-61020
|
[1] |
BALL;LINK(L.H)
|
2138-9018
|
| 30. |
2138-9018
|
[1] |
BALL;LINK(L.H)
|
|
| 31. |
S4012633
|
[1] |
NUT
|
|
| 32. |
S5102603
|
[1] |
. WASHER
|
|
| 33. |
S4012633
|
[1] |
NUT
|
|
| 34. |
2138-1026
|
[1] |
END;ROD(R.H)
|
|
| 34. |
2138-1033
|
[1] |
END;ROD(L.H)
|
|
| 35. |
2137-1187A
|
[1] |
LINK
|
|
| 36. |
2110-1184D24
|
[1] |
BUSH
|
|
| 37. |
S0508853
|
[1] |
. BOLT
|
|
| 37. |
S0509053
|
[1] |
. BOLT
|
|
| 38. |
S5102503
|
[1] |
. WASHER
|
|
| 39. |
2114-1058D29
|
[1] |
WASHER
|
|
| 4. |
41301-01610
|
[1] |
GRIP
|
|
| 4. |
2132-1141
|
[1] |
KNOB
|
|
| 40. |
2136-1417
|
[1] |
ROD
|
|
| 40. |
2136-1449
|
[1] |
ROD
|
|
| 41. |
2121-1298
|
[1] |
NUT(L.H)
|
|
| 42. |
2138-1025
|
[1] |
END;ROD(L.H)
|
|
| 42. |
2138-1032
|
[1] |
END;ROD(L.H)
|
|
| 43. |
S4012633
|
[1] |
NUT
|
|
| 44. |
2138-1026
|
[1] |
END;ROD(R.H)
|
|
| 44. |
2138-1033
|
[1] |
END;ROD(L.H)
|
|
| 45. |
2123-2093
|
[3] |
PIN
|
|
| 46. |
S5000213
|
[3] |
. WASHER
|
|
| 47. |
S5735051
|
[3] |
PIN;SPLIT
|
|
| 5. |
2112-1222
|
[1] |
SHAFT
|
|
| 6. |
S0511853
|
[2] |
BOLT
|
|
| 7. |
S5102603
|
[2] |
. WASHER
|
|
| 8. |
S5010613
|
[2] |
WASHER
|
|
| 9. |
S0511853
|
[1] |
BOLT
|
|
