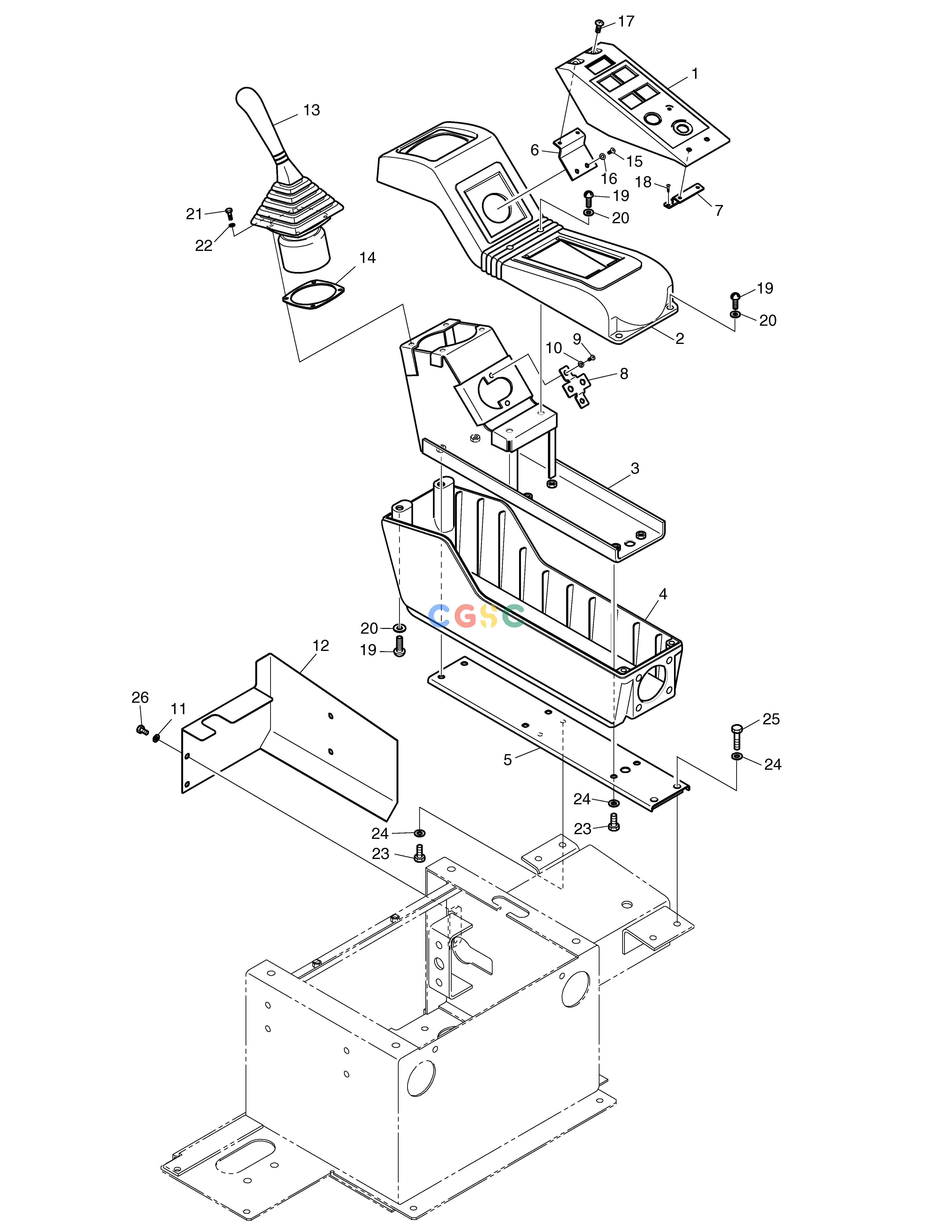

斗山零件查询CONTROL SYSTEM-OPTION SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
320 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
621-01083A
|
[1] |
COVER;SWITCH(R.H)
|
|
| 10. |
2114-1898D13
|
[2] |
WASHER
|
|
| 11. |
2114-1898D5
|
[4] |
WASHER
|
|
| 12. |
621-00494
|
[1] |
COVER(R.H)
|
|
| 13. |
2420-9615
|
[1] |
JOYSTICK(R.H)
|
|
| 14. |
2621-2752
|
[1] |
PLATE
|
|
| 15. |
2120-2166D23
|
[2] |
SCREW
|
|
| 16. |
2114-1058D64
|
[2] |
WASHER
|
|
| 17. |
2120-2166D18
|
[4] |
SCREW
|
|
| 18. |
2120-2166D22
|
[2] |
SCREW M3X0.5X12
|
|
| 19. |
2120-2166D23
|
[6] |
SCREW
|
|
| 2. |
2125-1078B
|
[1] |
CASE;UPPER
|
|
| 20. |
2114-1898D4
|
[6] |
WASHER
|
|
| 21. |
S0505053
|
[4] |
BOLT
|
|
| 22. |
S5102303
|
[4] |
. WASHER
|
|
| 23. |
2120-2166D5
|
[8] |
BOLT
|
|
| 24. |
2114-1898D2
|
[10] |
WASHER
|
|
| 25. |
2120-2166D38
|
[2] |
BOLT M8X1.25X35
|
|
| 26. |
2120-2166D19
|
[4] |
. BOLT M6X1.0X12
|
|
| 3. |
2195-3763B
|
[1] |
BRACKET
|
|
| 4. |
125-00020
|
[1] |
CASE;LOWER
|
|
| 5. |
195-00388A
|
[1] |
BRACKET(R.H)
|
|
| 6. |
195-01102A
|
[1] |
BRACKET
|
|
| 7. |
195-01103A
|
[1] |
BRACKET
|
|
| 8. |
195-00389A
|
[1] |
BRACKET
|
|
| 9. |
2120-2166D33
|
[2] |
SCREW M4X0.7X10
|
|
