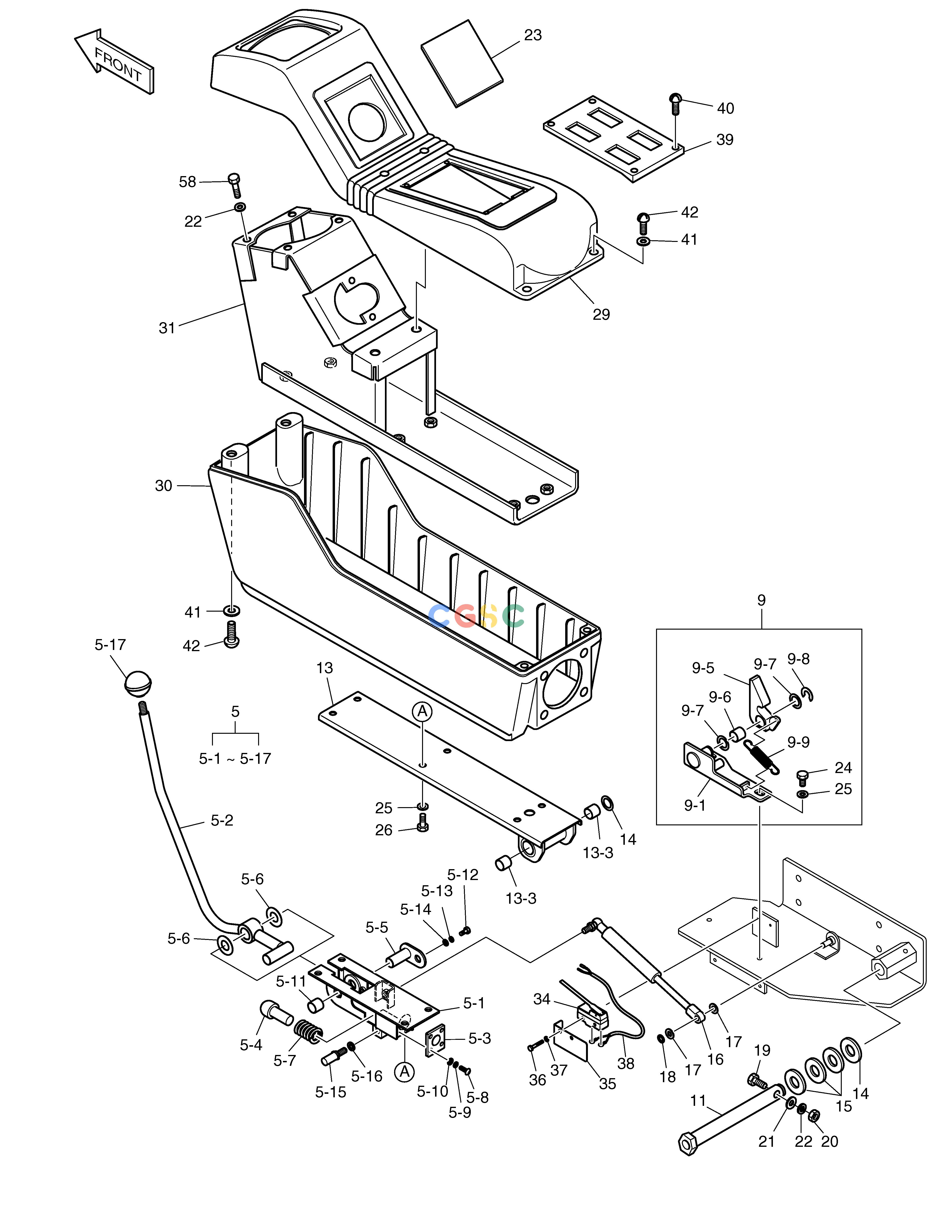

斗山零件查询CONTROL UNIT-L.H SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
307 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
195-00383A
|
[-] |
CONTROL STAND ASS'Y
|
|
| -. |
195-00383B
|
[-] |
CONTROL STAND ASS'Y
|
|
| 11. |
123-00113
|
[1] |
PIN
|
|
| 13. |
195-00392A
|
[1] |
BRACKET
|
|
| 13-3. |
2110-1184D37
|
[1] |
. BUSH;DU
|
|
| 14. |
2114-4129
|
[2] |
WASHER
|
|
| 15. |
2114-1059D31
|
[3] |
SHIM
|
|
| 16. |
2440-9243
|
[1] |
GAS-SPRING
|
|
| 17. |
S5010513
|
[2] |
WASHER
|
|
| 18. |
S6540500
|
[1] |
RING;RETAINING
|
|
| 19. |
S0553553
|
[1] |
BOLT M6X1.0X45
|
|
| 20. |
S4012333
|
[1] |
NUT
|
|
| 21. |
S5020313
|
[1] |
WASHER;PLAIN M6
|
|
| 22. |
S5110303
|
[5] |
WASHER;SPRING M6
|
|
| 23. |
2190-2164
|
[1] |
PLATE;NAME
|
|
| 24. |
2120-2166D25
|
[2] |
BOLT
|
|
| 25. |
2114-1898D2
|
[8] |
WASHER
|
|
| 26. |
2120-2166D5
|
[6] |
BOLT
|
|
| 29. |
2125-1078B
|
[1] |
CASE;UPPER
|
|
| 30. |
125-00020
|
[1] |
CASE;LOWER
|
|
| 31. |
2195-3763B
|
[1] |
BRACKET
|
|
| 34. |
2549-9139
|
[1] |
SWITCH;MICRO
|
|
| 35. |
621-01084
|
[1] |
COVER(L.H)
|
|
| 36. |
2120-2166D21
|
[2] |
BOLT M4X0.7X25
|
|
| 37. |
2114-1898D13
|
[2] |
WASHER
|
|
| 38. |
2530-1782
|
[1] |
HARNESS;MICRO SWITCH
|
|
| 39. |
2621-2748
|
[1] |
COVER(L.H)
|
|
| 40. |
2120-2166D22
|
[4] |
SCREW M3X0.5X12
|
|
| 41. |
2114-1898D4
|
[6] |
WASHER
|
|
| 42. |
2120-2166D23
|
[6] |
SCREW
|
|
| 5. |
133-00059B
|
[1] |
LEVER ASS'Y(L.H)
|
|
| 5-1. |
191-00231A
|
[1] |
PLATE(L.H)
|
|
| 5-10. |
S5000113
|
[4] |
WASHER
|
|
| 5-11. |
2110-1184D29
|
[1] |
. BUSH;DU
|
|
| 5-12. |
2120-2166D31
|
[1] |
BOLT M5X0.8X12
|
|
| 5-13. |
2114-2031D2
|
[1] |
WASHER;SPRING M5
|
|
| 5-14. |
2114-1898D5
|
[1] |
WASHER
|
|
| 5-15. |
116-00003A
|
[1] |
PIN
|
|
| 5-16. |
2114-2031D4
|
[1] |
WASHER
|
|
| 5-17. |
2132-1129
|
[1] |
GRIP
|
|
| 5-2. |
133-00114
|
[1] |
LEVER(L.H)
|
|
| 5-3. |
2116-1485
|
[1] |
PLATE
|
|
| 5-4. |
2123-2146A
|
[1] |
PIN
|
|
| 5-5. |
2123-2279A
|
[1] |
PIN
|
|
| 5-6. |
2114-1059D37
|
[2] |
. SHIM
|
|
| 5-7. |
2129-1432
|
[1] |
. SPRING
|
|
| 5-8. |
S3458583
|
[4] |
SCREW M4X0.7X12
|
|
| 5-9. |
S5102103
|
[4] |
WASHER
|
|
| 58. |
S0505053
|
[4] |
BOLT
|
|
| 9. |
133-00115
|
[1] |
LEVER LOCK ASS'Y(L.H)
|
|
| 9-1. |
NA00816
|
[1] |
PLATE
|
|
| 9-5. |
133-00056
|
[1] |
LEVER
|
|
| 9-6. |
2110-1184D29
|
[1] |
. BUSH;DU
|
|
| 9-7. |
2114-1059D200
|
[2] |
SHIM
|
|
| 9-8. |
S6541200
|
[1] |
. RING;RETAINER
|
|
| 9-9. |
2129-1433A
|
[1] |
SPRING
|
|
