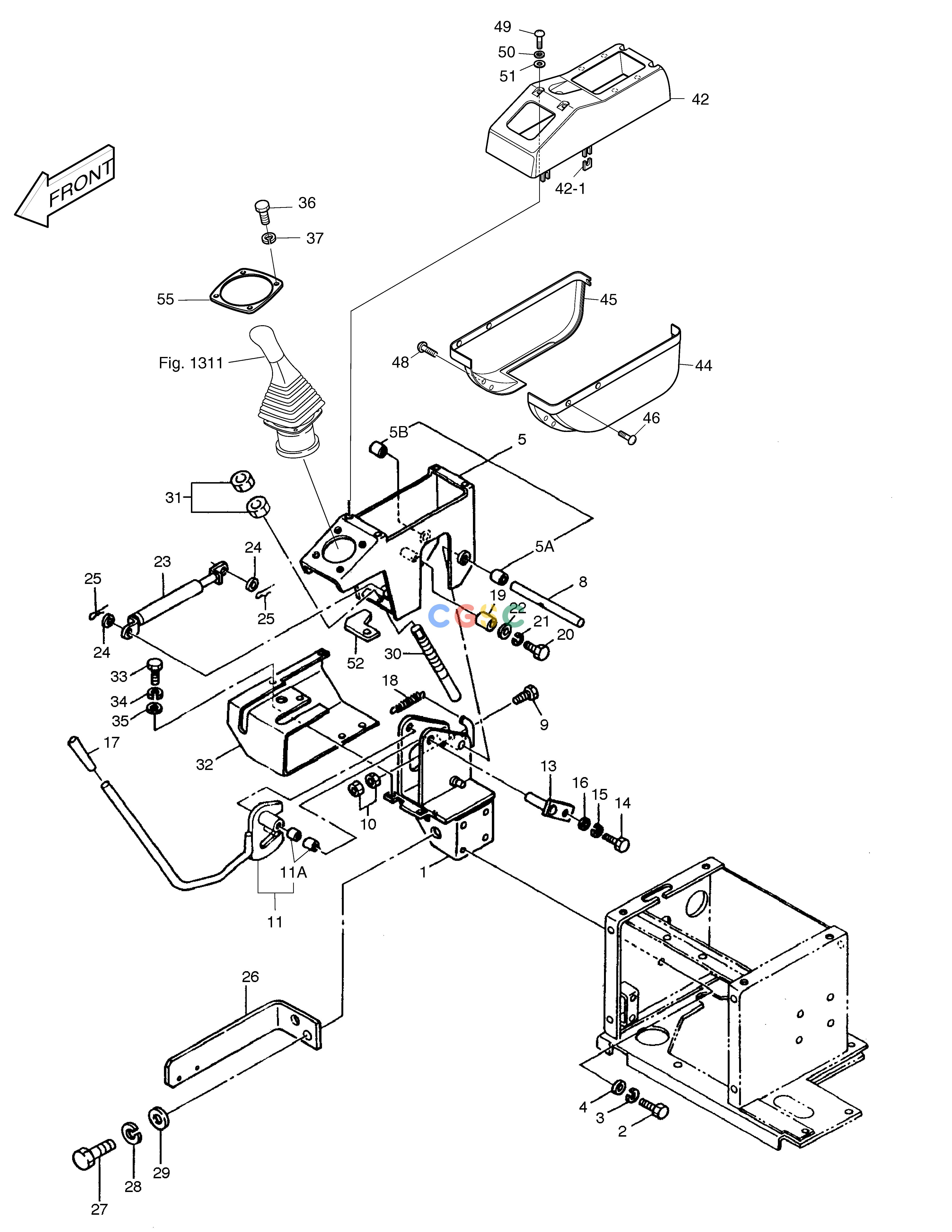

斗山零件查询CONTROL UNIT-R.H SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
847 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
543-00002
|
[-] |
CONTROL UNIT
|
|
| 1. |
2197-1209A
|
[1] |
BRACKET(R.H)
|
|
| 10. |
S4012333
|
[2] |
NUT
|
|
| 11. |
2133-1976B
|
[1] |
LEVER;LOCK(R.H)
|
|
| 11A. |
2110-1184D39
|
[2] |
BUSH 23/20-25L
|
|
| 13. |
2112-1217
|
[1] |
SHAFT
|
|
| 14. |
S0509053
|
[1] |
. BOLT
|
|
| 15. |
S5102503
|
[1] |
. WASHER
|
|
| 16. |
S5010513
|
[1] |
WASHER
|
|
| 17. |
870-00008
|
[1] |
GRIP
|
2132-1108
|
| 17. |
2132-1108
|
[1] |
GRIP
|
|
| 18. |
2129-1427
|
[1] |
SPRING;RETURN
|
|
| 19. |
2114-1746
|
[1] |
COLLAR
|
|
| 2. |
S0509053
|
[4] |
. BOLT
|
|
| 20. |
S0508653
|
[1] |
BOLT
|
|
| 21. |
S5102503
|
[1] |
. WASHER
|
|
| 22. |
S5010513
|
[1] |
WASHER
|
|
| 23. |
440-00011
|
[1] |
DAMPER
|
|
| 24. |
S5010613
|
[2] |
WASHER
|
|
| 25. |
S5735261
|
[2] |
PIN
|
|
| 26. |
2197-1211A
|
[1] |
BRACKET(R.H)
|
|
| 26. |
2197-1211B
|
[1] |
BRACKET(R.H)
|
|
| 27. |
S0509053
|
[2] |
. BOLT
|
|
| 28. |
S5102503
|
[2] |
. WASHER
|
|
| 29. |
S5010513
|
[2] |
WASHER
|
|
| 3. |
S5102503
|
[4] |
. WASHER
|
|
| 30. |
2120-2119B
|
[1] |
BOLT;PUSH
|
|
| 31. |
S4032633
|
[2] |
NUT
|
|
| 32. |
2197-1242A
|
[1] |
COWL(R.H)
|
|
| 33. |
S0509053
|
[4] |
. BOLT
|
|
| 34. |
S5102503
|
[4] |
. WASHER
|
|
| 35. |
S5010513
|
[4] |
WASHER
|
|
| 36. |
S0505053
|
[4] |
BOLT
|
|
| 37. |
S5102303
|
[4] |
. WASHER
|
|
| 4. |
S5010513
|
[4] |
WASHER
|
|
| 42. |
2627-9007
|
[1] |
CONSOLE BOX
|
|
| 42-1. |
41301-01740
|
[6] |
NUT;SPRING
|
|
| 44. |
2627-9004
|
[1] |
COVER 1
|
|
| 45. |
2627-9005
|
[1] |
COVER 2
|
|
| 46. |
S3691203
|
[6] |
TAPPING;SCREW
|
|
| 48. |
S3691213
|
[2] |
TAPPING;SCREW
|
|
| 49. |
S3450873
|
[4] |
SCREW
|
|
| 5. |
2197-2621
|
[1] |
STAND;LEVER(R.H)
|
|
| 50. |
S5100203
|
[4] |
WASHER
|
|
| 51. |
S5000213
|
[4] |
. WASHER
|
|
| 52. |
2161-2042
|
[1] |
STOPPER(R.H)
|
|
| 55. |
2621-2752
|
[1] |
PLATE
|
|
| 5A. |
2110-1184D38
|
[1] |
BUSH 23/20-20L
|
|
| 5B. |
2110-1184D39
|
[1] |
BUSH 23/20-25L
|
|
| 8. |
2123-2123
|
[1] |
SHAFT
|
|
| 9. |
S0553453
|
[1] |
BOLT M6X1.0X40
|
|
