斗山零件查询ELECTRIC SYSTEM(1) SOLAR 035 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
1006 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

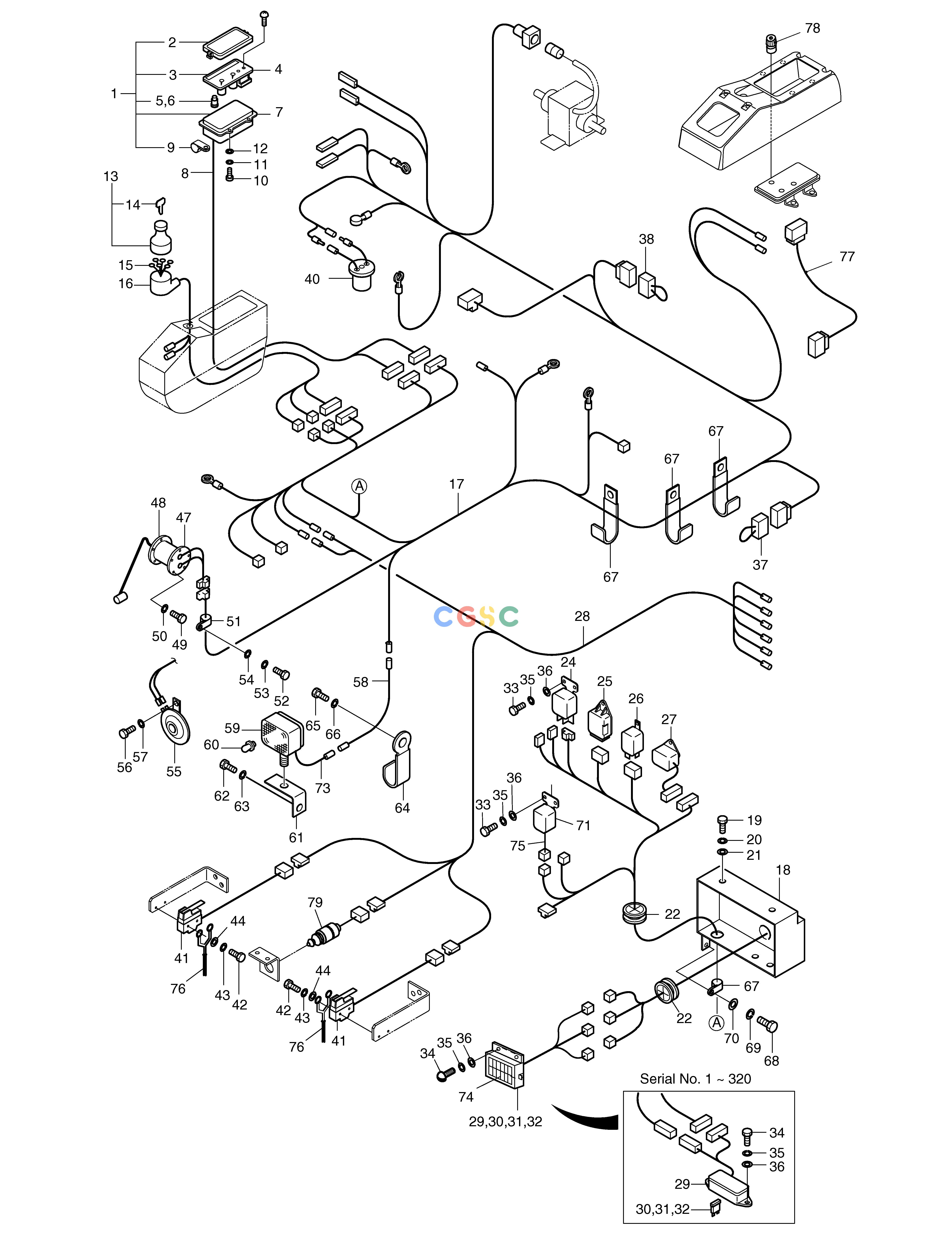

2500-7032
|
[-] |
ELECTRIC SYSTEM
|
|
| 1. |
40901-04220
|
[1] |
METER UNIT ASS'Y
|
|
| 1. |
6539-1006
|
[1] |
METER UNIT ASS'Y
|
|
| 1. |
2525-9005
|
[1] |
METER UNIT ASS'Y
|
|
| 10. |
30721-04010
|
[4] |
SCREW;PAN HEAD
|
|
| 11. |
30741-00004
|
[4] |
WASHER;SPRING M14
|
|
| 12. |
30740-00004
|
[4] |
WASHER M14
|
|
| 13. |
40908-00011
|
[1] |
KEY SWITCH ASS'Y
|
2549-9126
|
| 13. |
2549-9126
|
[1] |
KEY SWITCH ASS'Y
|
|
| 14. |
41307-00007
|
[2] |
KEY
|
|
| 15. |
11620-01810
|
[1] |
HARNESS;KEY SWITCH
|
|
| 16. |
12002-01570
|
[1] |
COVER
|
|
| 17. |
11620-01890
|
[1] |
HARNESS;MAIN
|
2530-1674A
|
| 17. |
2530-1674A
|
[1] |
HARNESS;MAIN
|
|
| 18. |
2197-1235
|
[2] |
BRACKET;ELECTRICAL
|
2197-1235A
|
| 18. |
2197-1235A
|
[2] |
BRACKET;ELECTRICAL
|
|
| 18. |
2197-1235C
|
[1] |
BRACKET;ELECTRICAL
|
|
| 19. |
S0508853
|
[2] |
. BOLT
|
|
| 2. |
0512-00709
|
[1] |
COVER
|
|
| 20. |
S5102503
|
[2] |
. WASHER
|
|
| 21. |
S5102513
|
[2] |
WASHER;SPRING M8
|
|
| 22. |
864-06002
|
[1] |
GROMMET
|
|
| 22. |
864-06002
|
[2] |
GROMMET
|
2161-2462
|
| 22. |
2161-2462
|
[2] |
GROMMET
|
|
| 24. |
485-00005
|
[1] |
RELAY;GLOW
|
|
| 25. |
40901-04740
|
[1] |
TIMER;QOS Ⅲ
|
|
| 26. |
40901-04750
|
[1] |
RELAY;STARTER
|
|
| 27. |
40901-04760
|
[1] |
UNIT;SAFETY
|
|
| 28. |
2530-1588
|
[1] |
HARNESS;SOLENOID
|
|
| 28. |
2530-1588A
|
[1] |
HARNESS;SOLENOID
|
|
| 29. |
40901-04010
|
[1] |
BOX FUSE
|
2510-1008
|
| 29. |
2510-1008
|
[1] |
BOX;FUSE
|
|
| 3. |
40901-04840
|
[1] |
PANEL
|
|
| 30. |
40901-04450
|
[1] |
FUSE;3A
|
|
| 30. |
2527-1018
|
[1] |
FUSE,BLADE 20A
|
|
| 31. |
40901-04460
|
[1] |
FUSE
|
|
| 31. |
2527-1016
|
[1] |
FUSE,BLADE 10A
|
|
| 32. |
40901-04470
|
[1] |
FUSE
|
|
| 32. |
2527-1017
|
[1] |
FUSE,BLADE 15A
|
|
| 33. |
S0504653
|
[5] |
. BOLT
|
|
| 33. |
S3450973
|
[5] |
SCREW M6X1.0X16
|
|
| 34. |
S0504853
|
[2] |
BOLT M6X1.0X20
|
|
| 34. |
S3450983
|
[2] |
SCREW
|
|
| 35. |
S5102303
|
[7] |
. WASHER
|
|
| 35. |
S5100203
|
[1] |
WASHER
|
|
| 36. |
S5010313
|
[7] |
WASHER
|
|
| 37. |
484-54002
|
[1] |
LINK;FUSIBLE
|
|
| 38. |
40901-01120
|
[1] |
LINK;FUSIBLE
|
2527-1027
|
| 38. |
2527-1027
|
[1] |
FUSIBLE LINK
|
|
| 4. |
40901-04850
|
[1] |
METER;HOUR
|
|
| 40. |
40901-04780
|
[1] |
INDICATOR;DUST
|
|
| 41. |
6549-1001
|
[2] |
MICRO SWITCH
|
|
| 41. |
2549-9139
|
[2] |
SWITCH;MICRO
|
|
| 42. |
S3450623
|
[4] |
SCREW M4X0.7X25
|
|
| 43. |
S5102103
|
[4] |
WASHER
|
|
| 44. |
S5000103
|
[4] |
WASHER;PLAIN M4
|
|
| 47. |
40901-04060
|
[1] |
SENDER;FUEL
|
|
| 48. |
40901-02310
|
[1] |
PACKING
|
|
| 49. |
S0502853
|
[5] |
. BOLT M5X0.8X10
|
|
| 5. |
40901-04490
|
[6] |
BULB;GAUGE PANEL
|
|
| 5. |
S862103H
|
[2] |
BULB 12V 3.4W
|
|
| 50. |
S5100203
|
[5] |
WASHER
|
|
| 51. |
2124-1509D2
|
[1] |
CLIP
|
|
| 52. |
S0504653
|
[1] |
. BOLT
|
|
| 53. |
S5102303
|
[1] |
. WASHER
|
|
| 54. |
S5010313
|
[1] |
WASHER
|
|
| 55. |
466-02002
|
[1] |
HORN
|
|
| 55. |
2516-1121
|
[1] |
HORN
|
|
| 56. |
S0508653
|
[1] |
BOLT
|
|
| 57. |
S5102503
|
[1] |
. WASHER
|
|
| 58. |
11620-01930
|
[1] |
HARNESS;LIGHT
|
|
| 59. |
902-00450
|
[1] |
LAMP
|
|
| 59. |
2534-9048
|
[1] |
LAMP;WORKING
|
|
| 6. |
40901-04800
|
[1] |
BULB
|
|
| 60. |
902-00460
|
[1] |
BULB
|
2515-1016D2
|
| 60. |
2515-1016D2
|
[1] |
BULB
|
|
| 61. |
2197-1237
|
[1] |
BRACKET
|
|
| 62. |
S0514853
|
[1] |
BOLT
|
|
| 63. |
S5102703
|
[1] |
WASHER
|
|
| 64. |
2124-1509D2
|
[1] |
CLIP
|
|
| 65. |
S0508653
|
[1] |
BOLT
|
|
| 66. |
S5102503
|
[1] |
. WASHER
|
|
| 67. |
2621-3277
|
[2] |
CLAMP
|
|
| 68. |
S0511653
|
[1] |
BOLT
|
|
| 69. |
S5102603
|
[1] |
. WASHER
|
|
| 7. |
40901-04810
|
[1] |
CASE
|
|
| 70. |
S5102613
|
[1] |
WASHER
|
|
| 71. |
40901-04160
|
[1] |
RELAY
|
2544-9032
|
| 71. |
2544-9032
|
[1] |
RELAY
|
|
| 72. |
2124-1509D5
|
[2] |
CLIP D36/M8
|
|
| 73. |
2530-1722
|
[1] |
HARNESS;WORKING LAMP
|
|
| 73. |
2530-1768
|
[1] |
HARNESS;WORKING LAMP
|
|
| 74. |
2190-3579
|
[1] |
PLATE;NAME(DOMESTIC)
|
|
| 75. |
2530-1769
|
[1] |
HARNESS;LAMP RELAY
|
|
| 76. |
530-00040
|
[2] |
HARNESS;MICRO SWITCH
|
|
| 77. |
530-00043
|
[1] |
HARNESS;JOINT
|
|
| 78. |
2549-1132D4
|
[1] |
SWITCH;HIGH SPEED
|
|
| 79. |
6549-1002
|
[1] |
SWITCH
|
|
| 8. |
40901-04820
|
[1] |
CORD ASS'Y
|
|
| 9. |
40901-04830
|
[1] |
CLAMP
|
|
