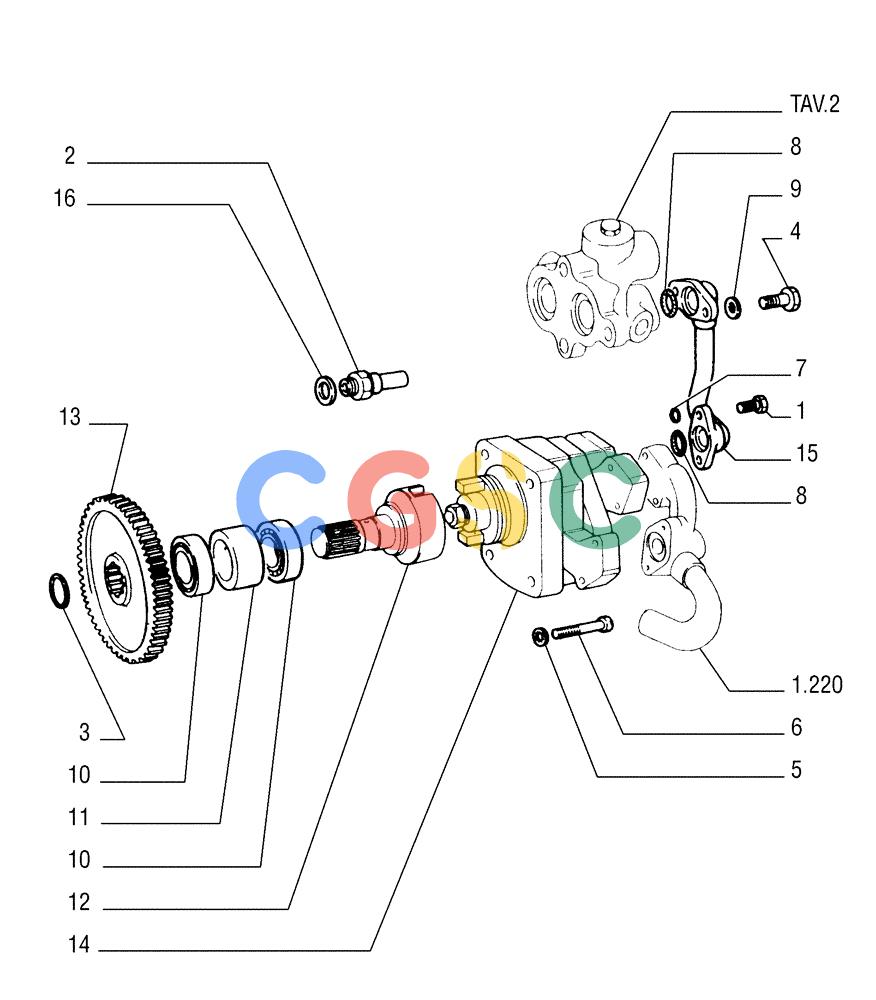

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.200[04]) - UNIT TORQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
232 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 588893 | [2] | SCREW | LEC |
| 2. | 589425 | [1] | HYD CONNECTOR | LEC |
| 3. | 11067476 | [1] | SNAP RING,M26, Ext | LEC |
| 4. | 11307034 | [2] | BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd | TOR10X1,25X40 Superseded by part number: 11307031 |
| 5. | 12605671 | [4] | LOCK WASHER,Int Tooth, M10 | IMO |
| 6. | 14307634 | [4] | HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 14307630 |
| 7. | 14456881 | [2] | O-RING,0.362" ID x 0.103" Width | JES |
| 8. | 5135738 | [2] | O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro | TTF |
| 9. | 14496631 | [2] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 10. | 20685450 | [2] | BALL BEARING,30 mm ID x 62 mm OD x 16 mm | TTF30X62 Superseded by part number: 75224976, 210064, 700803262 |
| 11. | 79009557 | [1] | SPACER | LEC |
| 12. | 79010926 | [1] | SHAFT | LEC |
| 13. | 79010927 | [1] | GEAR | LEC |
| 14. | 79038139 | [1] | HYDRAULIC PUMP | LEC- ASSY SEE TAV.9 Superseded by part number: 79009423 |
| 15. | 79081123 | [1] | RIGID TUBE,20 mm ID, 22 mm OD, 208, 42.5 mm Length | LEC |
| 16. | 79086481 | [1] | WASHER,18.7mm ID x 26mm OD x 1.5mm Thk | LEC |
