纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (1.277[03]) - REAR TRANSMISSION - SUPPORT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
724 次

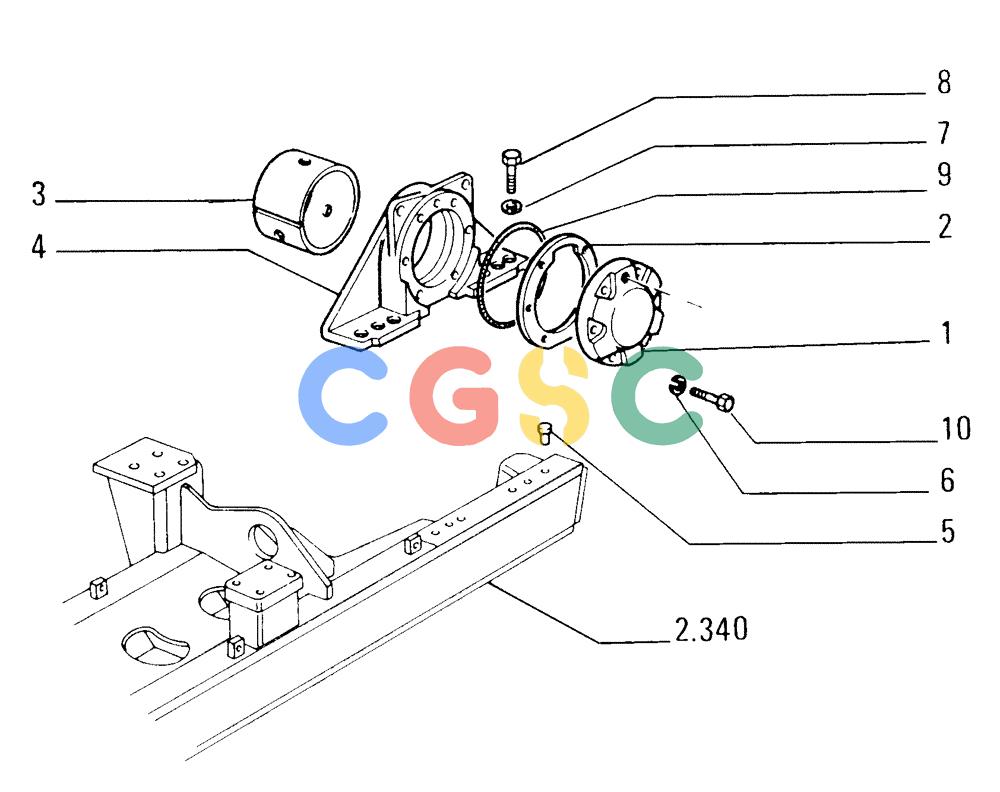

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 594317 | [2] | COVER | LEC |
| 2. | 594324 | [2] | SEAL | BHB Superseded by part number: 76028167 |
| 3. | 79012001 | [2] | BUSHING,115.2mm ID x 122.26mm OD x 79.8mm L | LEC- IN ALTERNATIVE |
| 3. | 594343 | [2] | BUSHING | LEC- IN ALTERNATIVE Superseded by part number: 79012001 |
| 4. | 594666 | [2] | SPROCKET | GI |
| 5. | 4955605 | [4] | DOWEL | LEC |
| 6. | 14496731 | [12] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 7. | 14497131 | [8] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 8. | 15988334 | [8] | BOLT,Hex, M20 x 1.5 x 60mm, Cl 10.9 | LEC Superseded by part number: 15988331 |
| 9. | 14473580 | [2] | O-RING,123.19mm ID x 5.33mm Width | MKT5,33X123,19 |
| 10. | 15540431 | [12] | SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd | LEC |
