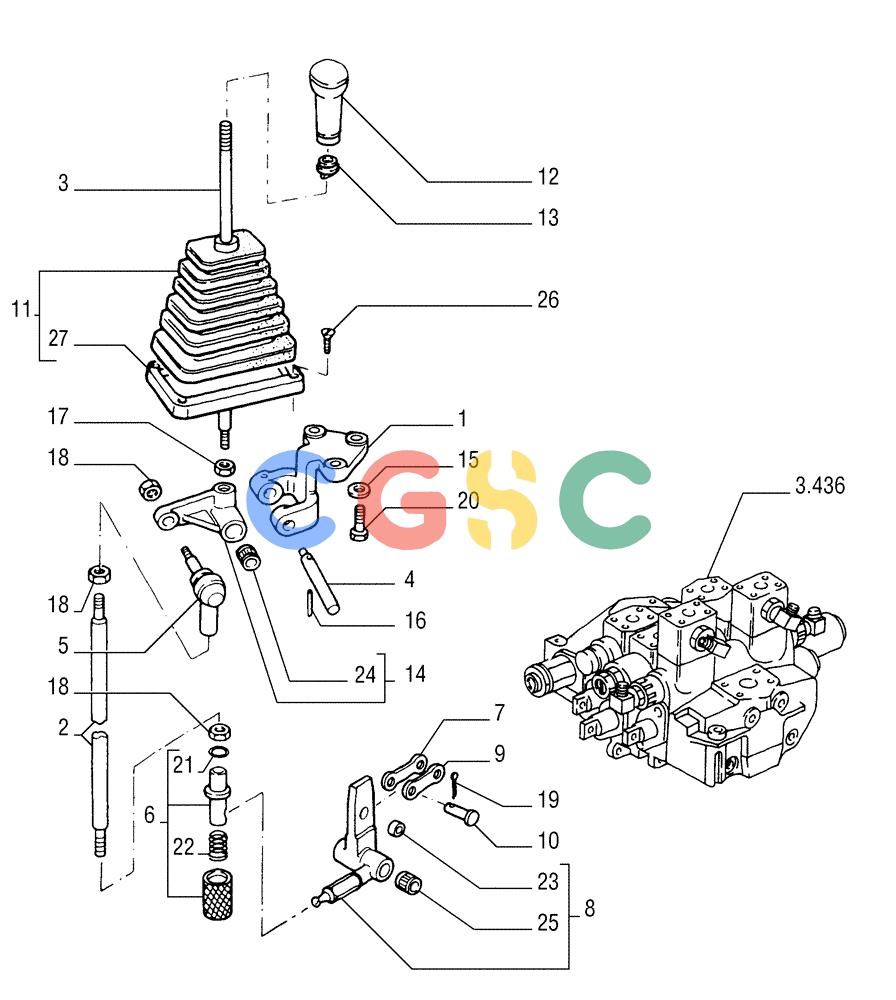

纽荷兰零件查询(FD175) - CRAWLER DOZER (N.A. VERSION)(S/N 061640 & AFTER) (1/93-) (3.437[03]) - CONTROL VALVE LINKAGE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
719 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79083897 | [1] | SUPPORT | LEC |
| 2. | 79083941 | [1] | SHAFT | LEC |
| 3. | 79111315 | [1] | ROD | LEC |
| 4. | 79078173 | [1] | PIN,16mm OD x 82mm L | LEC |
| 5. | 79092808 | [1] | ARTICULATION | LEC |
| 6. | 79083370 | [1] | QUICK MALE COUPLING | LEC- ASSY |
| 7. | 76032323 | [1] | STRAP | LEC |
| 8. | 76032318 | [1] | LEVER | LEC- ASSY |
| 9. | 76032322 | [1] | STRAP | LEC |
| 10. | 76030576 | [2] | PIN | LEC |
| 11. | 79100924 | [1] | BOOT | LEC- ASSY |
| 12. | 79101994 | [1] | HANDLE GRIP | LEC |
| 13. | 79110877 | [1] | RING NUT | LEC |
| 14. | 79092887 | [1] | HUB | LEC- ASSY |
| 15. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 16. | 14164370 | [1] | LOCK PIN,M4 x 30, Slotted | FOR4,4X30 |
| 17. | 11702921 | [1] | NUT,M12, Cl 10 | LEC Superseded by part number: 17038425 |
| 18. | 11701721 | [3] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 19. | 10802801 | [2] | COTTER PIN,M2.5 x 25 | LEC |
| 20. | 11106431 | [3] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 9515003 |
| 21. | 13420776 | [1] | RING | LEC |
| 22. | 79086837 | [1] | SPRING | LEC |
| 23. | 76032321 | [1] | BUSHING | LEC |
| 24. | 79084568 | [1] | BEARING ASSY,Needle, 16mm ID x 22mm OD x 14mm W | LEC |
| 26. | 13313417 | [2] | SCREW,Pozidriv Oval Hd, Csk, M6 x 25mm, Cl 5.8, Full Thd | IMO |
| 27. | 79095564 | [1] | CAPPING | LEC |
